| U.S.S. Allen M. Sumner DD-692 | |||||
| Ship's Machinery | |||||
VIEWS

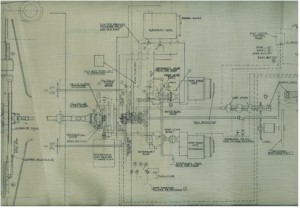

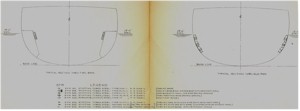

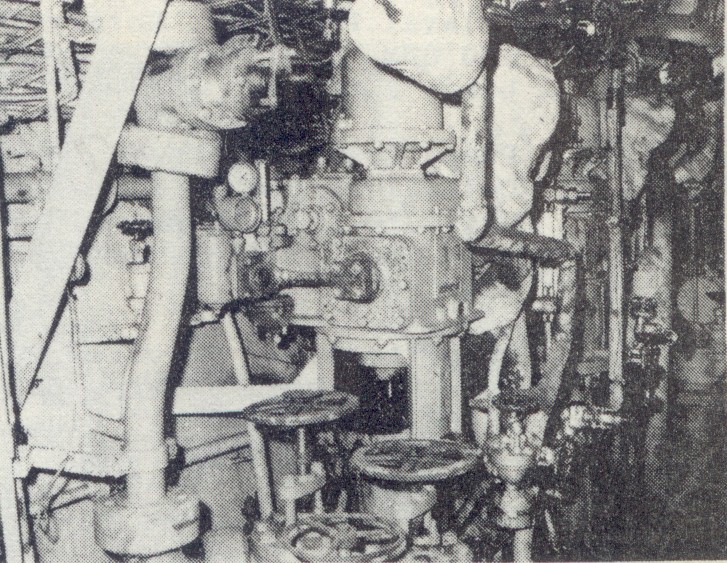

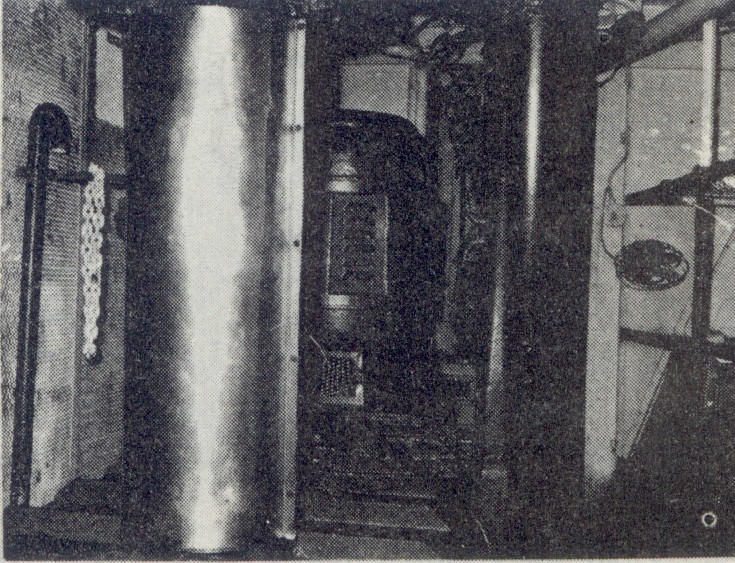

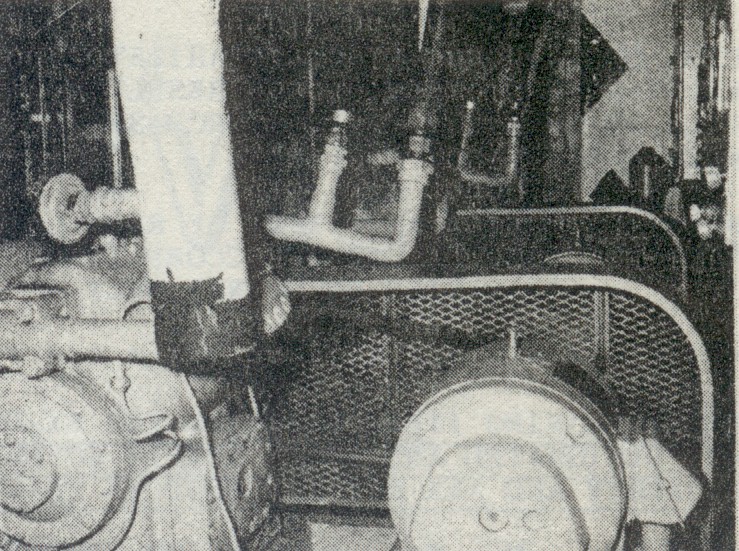

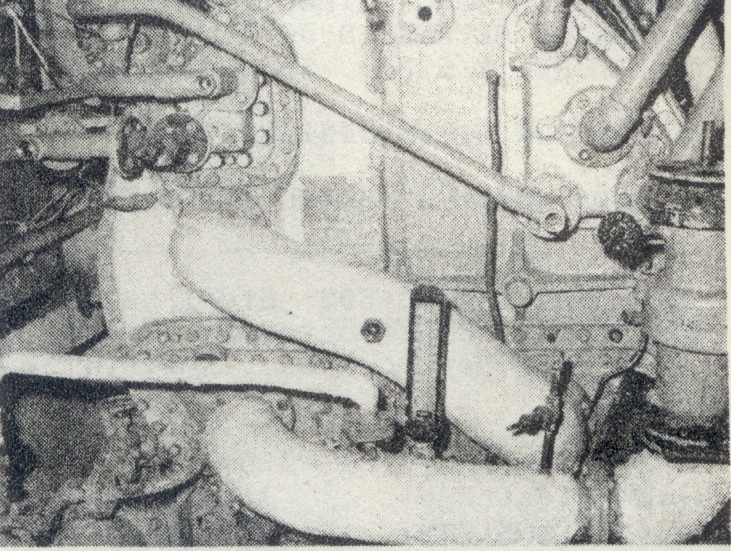

The following are photographs of some of the major items of equipment that remained aboard the Sumner when she was put up for bids by the Defense Supply Agency's Defense Property Disposal Ship Sales Office in Portsmouth, RI. Closing date for the sale was October 8, 1974. Many thanks to HTC Ron Reeves USN (Ret.) who loaned us the pamphlet for scanning.
 |
 |

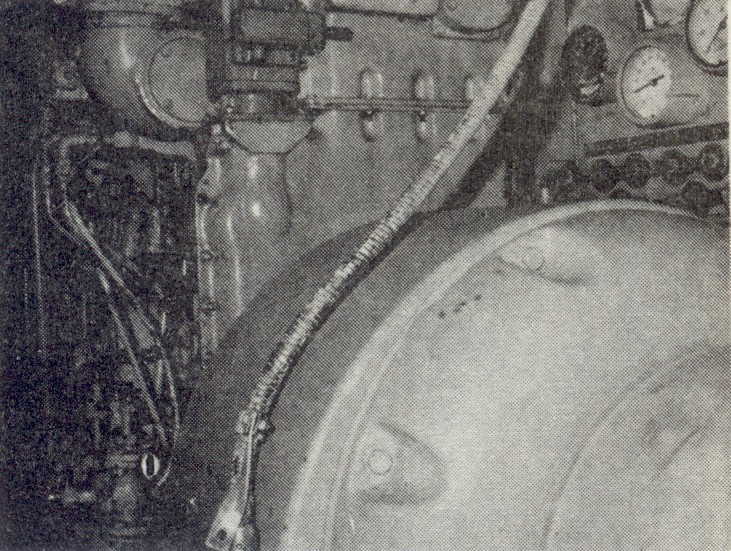

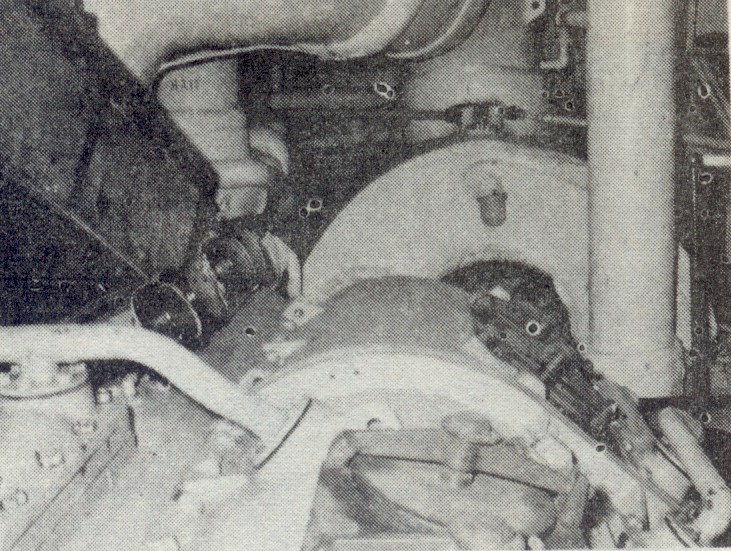

| MAIN

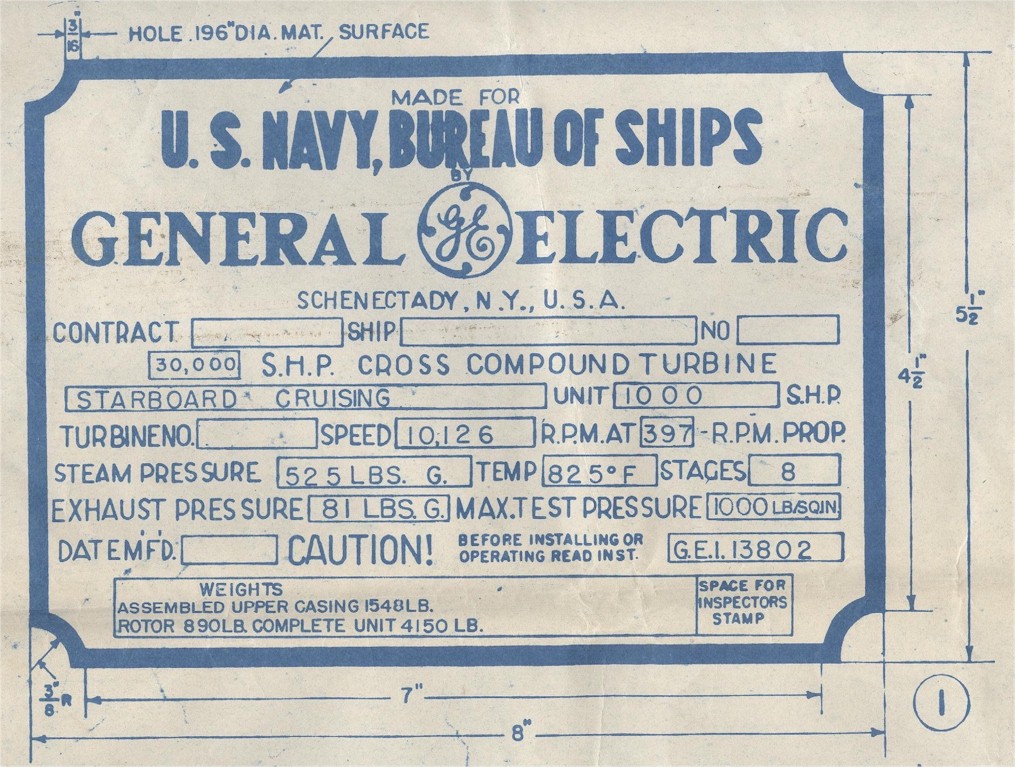

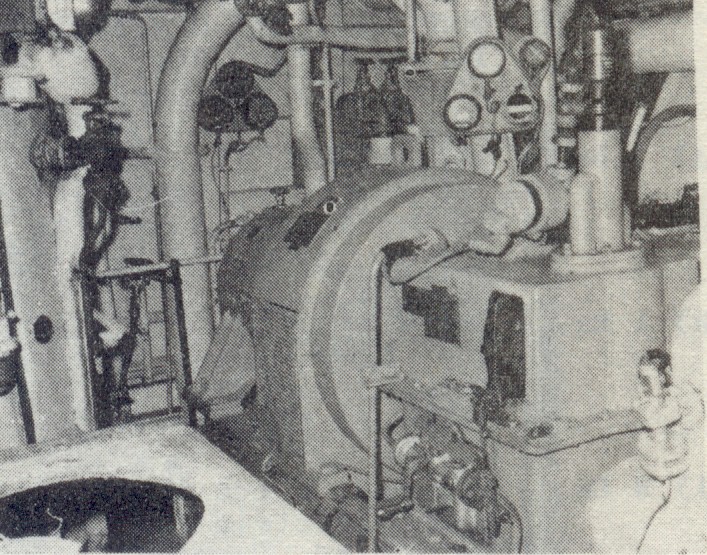

PROPULSION TURBINE Turbine, Main Propulsion, High Pressure, General Electric, 5665 RPM, 14,600 HP, 565 PSI Steam Turbine, Main Propulsion, Low Pressure, General Electric, 4788 RPM, 15,400 HP |
TURBO-GENERATOR Turbo-Generator, Ship Service, Westinghouse Electric Co., 400 KW 500 KVA, 640 Amp, 1200 RPM, 3 Phase, 60 Cycle, 450 VAC. Turbine 10,059 RPM, 565 PSI Steam |
 |
 |

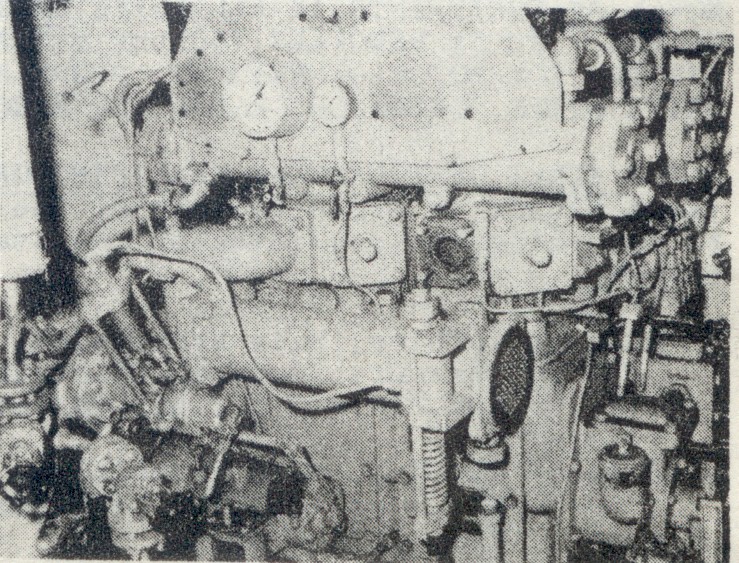

| EMERGENCY
SHIP SERVICE GENERATOR Generator, Emergency Ship Service Diesel, General Electric Co., 100 KW, 150 KVA, 1200 RPM, 3 Phase 60 Cycle, 440 VAC. Diesel: General Motors Corp, Model 3-268A, 145 BHP, 1200 RPM, 0.6 P.F. |
DISTILLING
PLANT Distilling Plant, Griscom-Russel Co., Soloshell, 2 effect, low pressure. 1 each 12,000 GPD, 1 each 4,000 GPD |
 |
 |

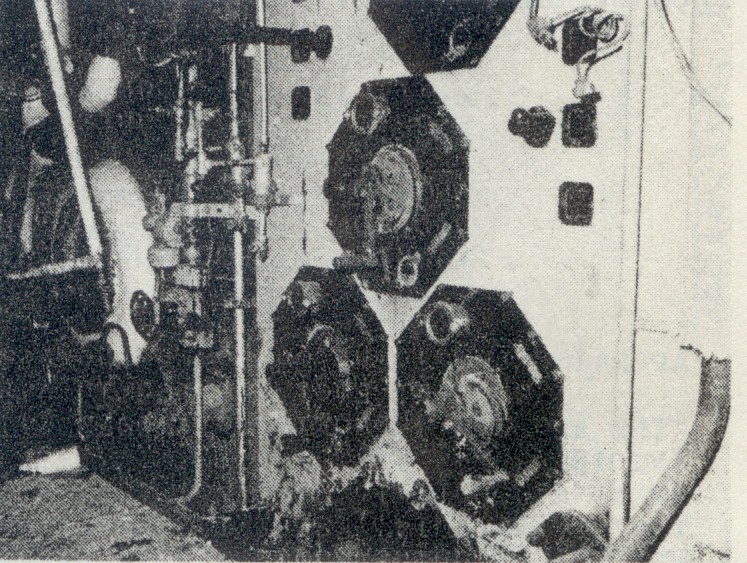

| MAIN
STEAM BOILERS Boilers, Main Steam, Babcock & Wilcox Co., Express Type, 634 PSI Designed Pressure, Furnace Volume 569 cu. ft. |
AIR

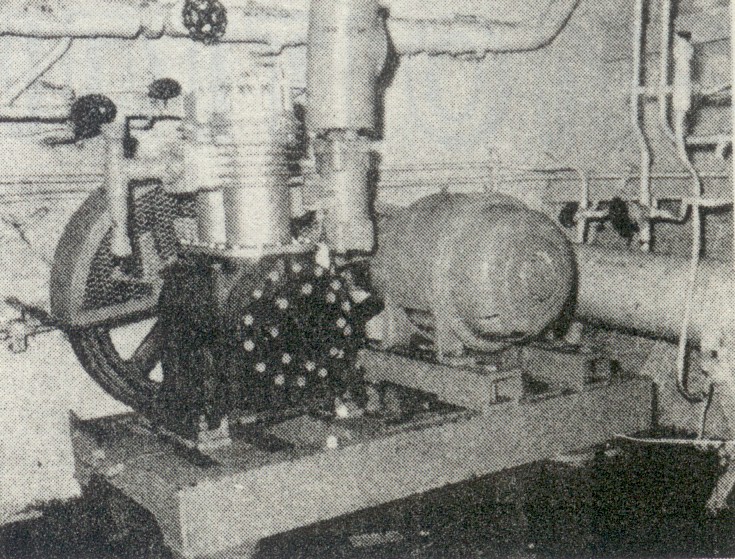

COMPRESSOR Compressor, Air, High Pressure, Worthington Co., 3 stage 20 CFH, 3000 PSI, 585 RPM, 43 BHP. Turbine: 5850 RPM, 565 PSI steam |
 |
 |
| AIR
CONDITIONING COMPRESSOR Compressor Air Conditioning, Carrier Corp, Model 5F40-149. Motor: Reliance Electric Co., 7.5 HP, 1745 RPM, 440 VAC. |
MAIN
CIRCULATING PUMP Pump, Main Circulating, Warren Steam Pump Co., 26,500 GPM, 31 PSI, 900 RPM. Turbine: Westinghouse Co., 4150 RPM, 300 BHP, 575 PSI steam. |
 |
 |
| REFRIGERATION
COMPRESSOR Compressor, Refrigeration, Carrier Corp, 2 ton capacity. Motor: General Electric Co., 4/2 HP, 1720/860 RPM, 440 VAC. |
FUEL
OIL SERVICE PUMP Pump, Fuel Oil Service, Delaval Pump Co., 50 GPM, 350 PSI, 570 RPM. Turbine: 575 PSI steam. |
 |
 |
| ANCHOR
WINDLASS Anchor Windlass, Hyde Windlass Co. Motor: Westinghouse Electric Co. 30/7.5 HP, 1800/450 RPM, 1750 RPM 440 VAC. |

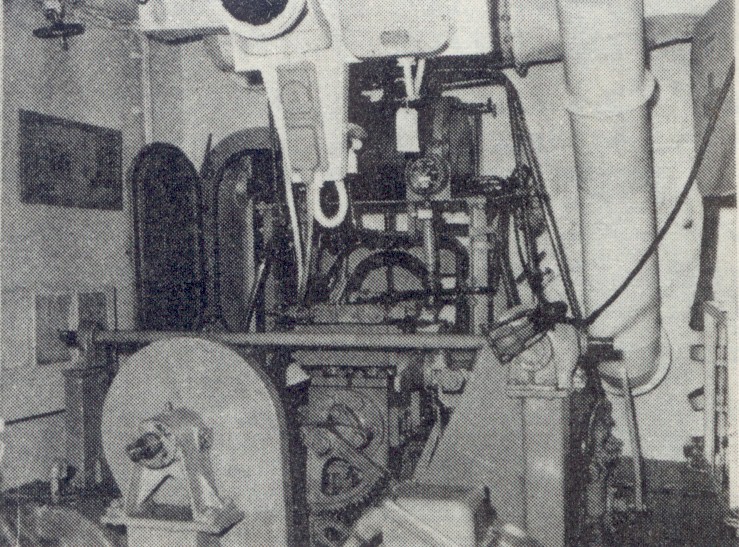

STEERING
GEAR Steering Gear, Hyde Windlass Co. Electro-Hydraulic, Motor: General Electric Co., 35/8.75 HP. Pump: Waterbury Speed Gear Co., 1600 PSI, 440 RPM |
DATA
This section displays some of the many Data Sheets that detail what was installed in the 692/710 Class Destroyers, dated January 1945. Many thanks to Ed Zajkowski for providing these invaluable documents to us. Special note: Snipes are likely to droll while viewing this page so please protect your keyboard !!!
 |
 |
|

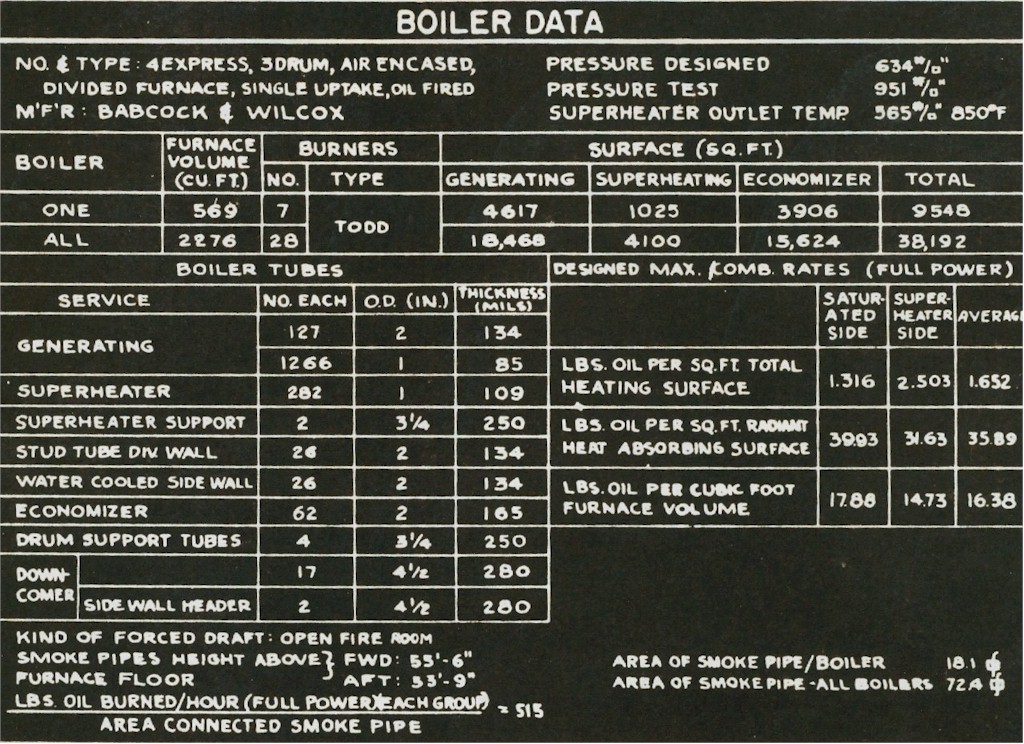

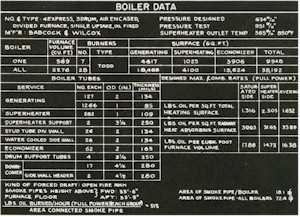

BOILER DATA |

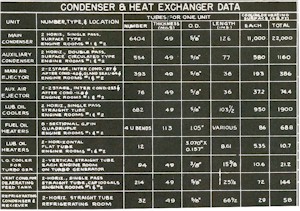

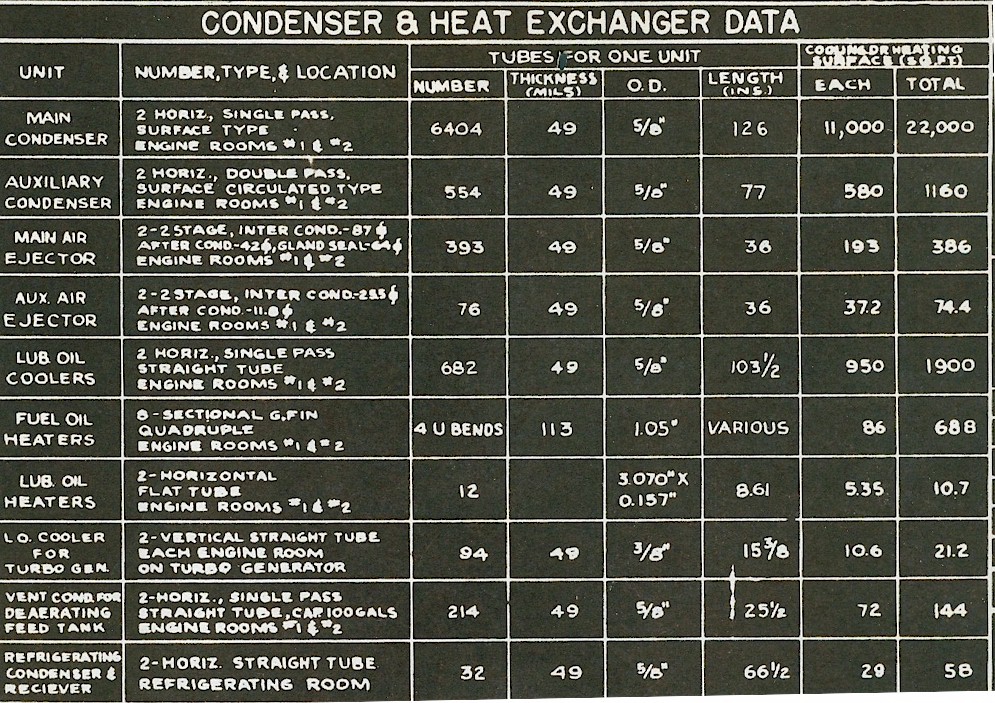

CONDENSER & HEAT EXCHANGER DATA |
 |
 |
|

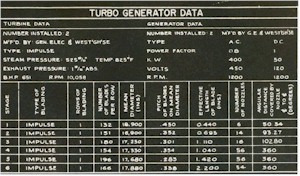

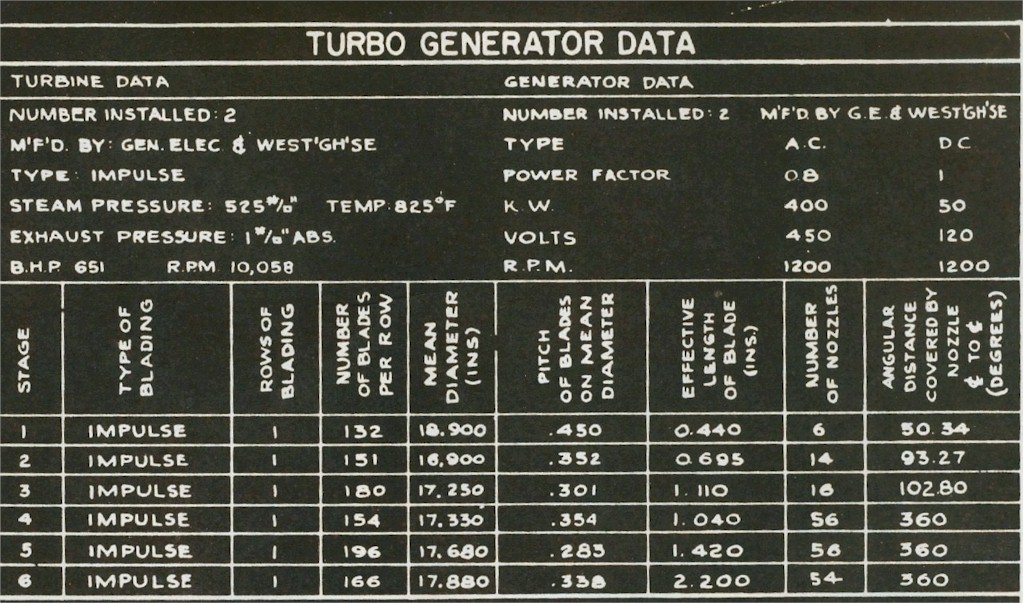

TURBO GENERATOR |

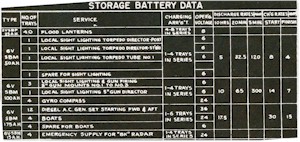

STORAGE BATTERY DATA |
 |
|
|

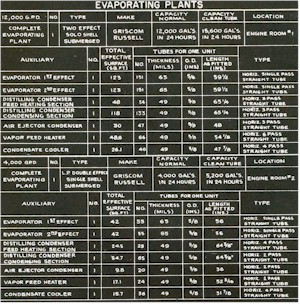

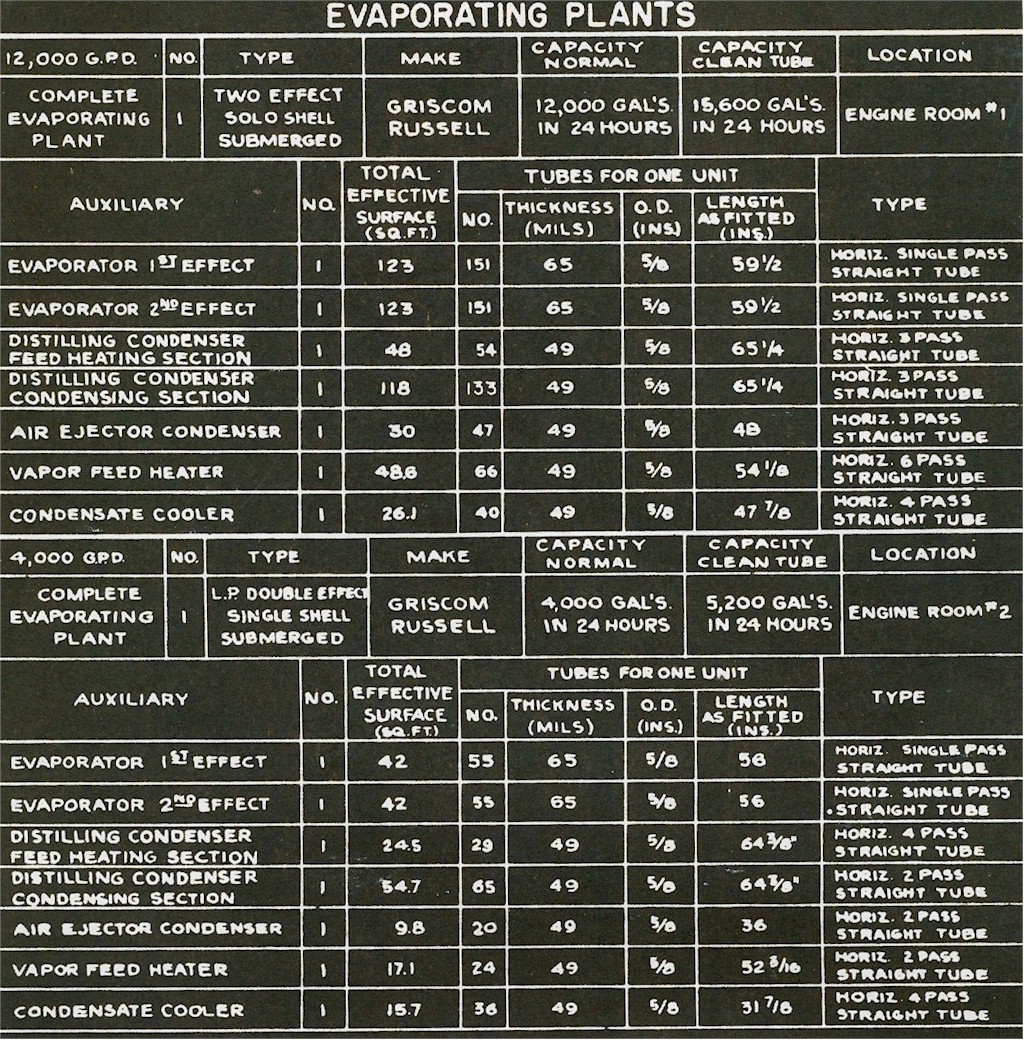

EVAPORATING PLANTS |
|
 |
 |
|

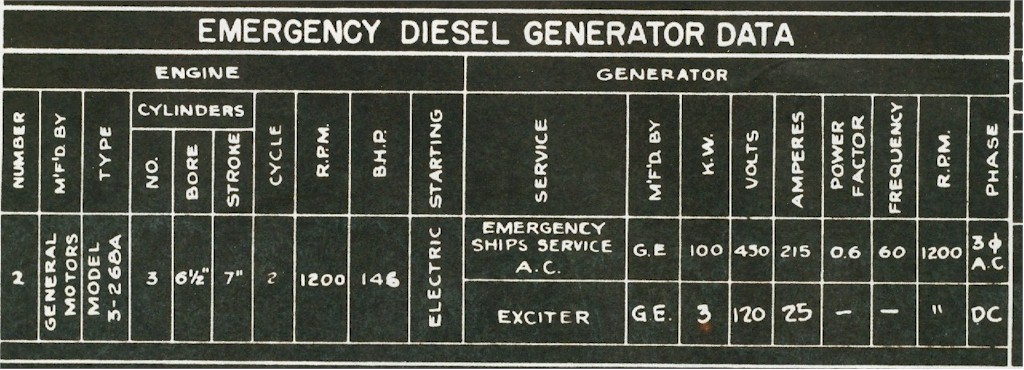

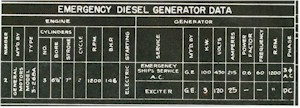

EMERGENCY DIESEL GENERATOR DATA |

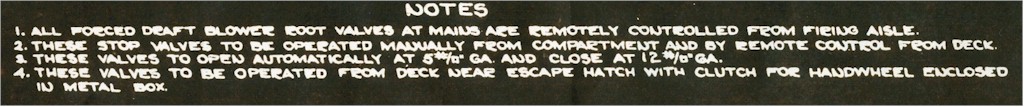

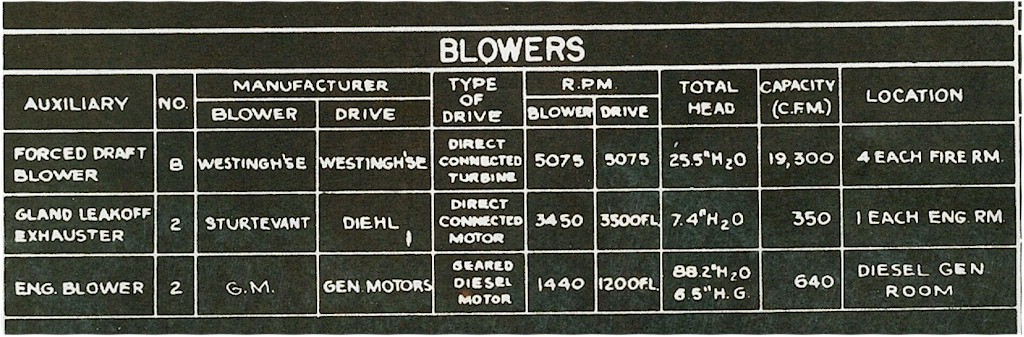

BLOWERS |
 |
 |

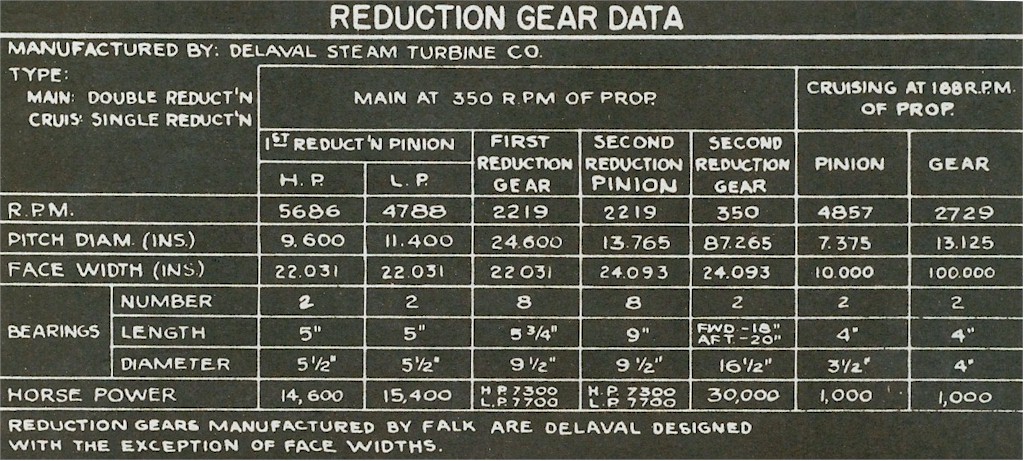

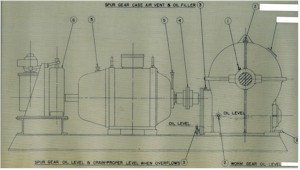

| REDUCTION GEAR DATA |

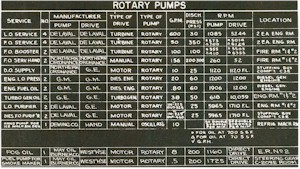

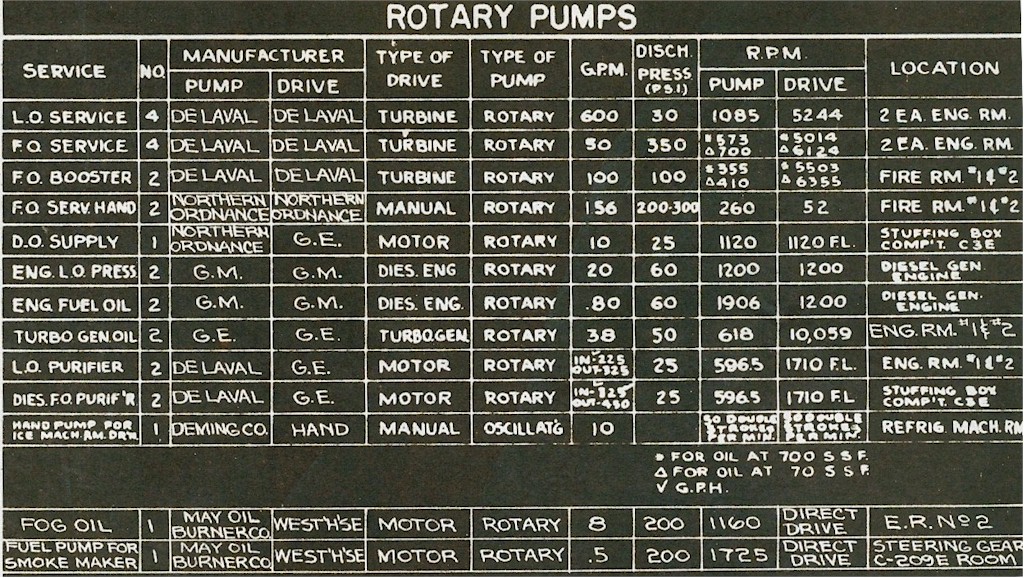

ROTARY PUMPS |
 |
 |
| PROPELLER DATA |

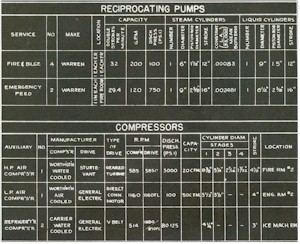

RECIPROCATING PUMPS |
 |
 |

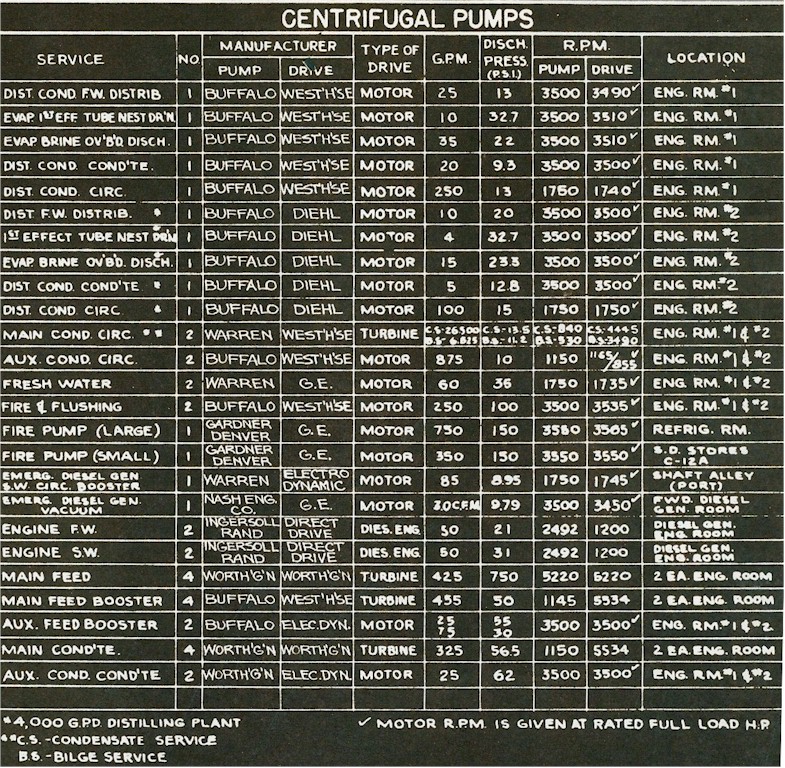

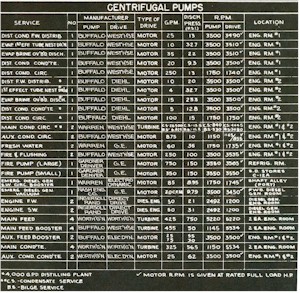

| CENTRIFUGAL PUMPS |

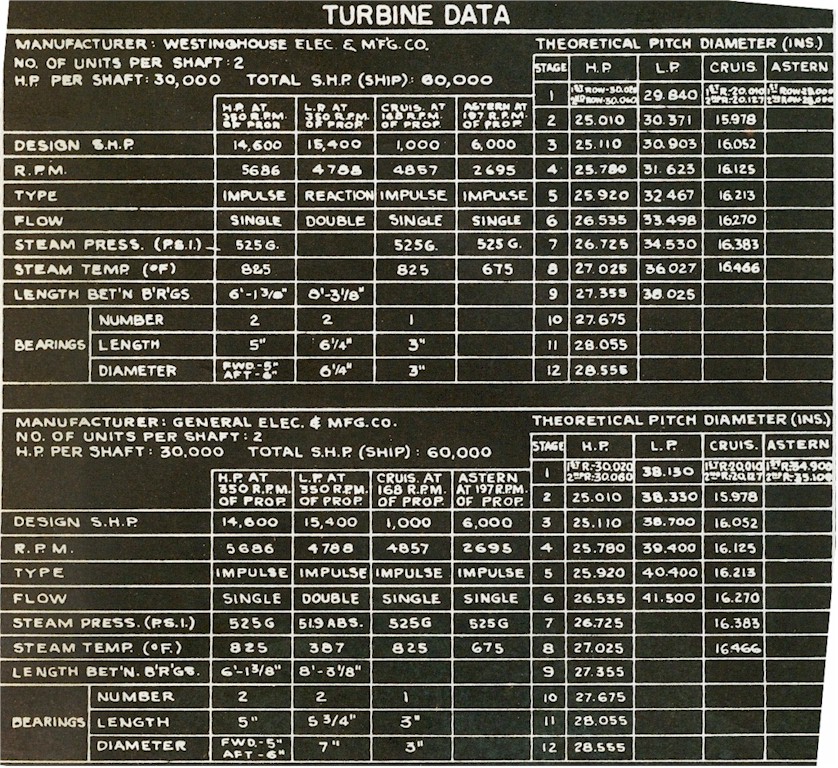

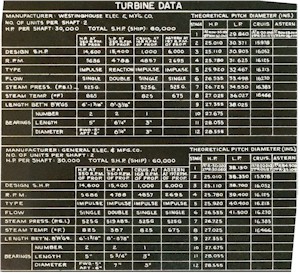

TURBINE DATA |
 |
|
|

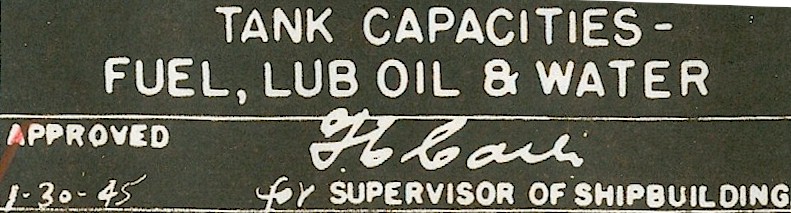

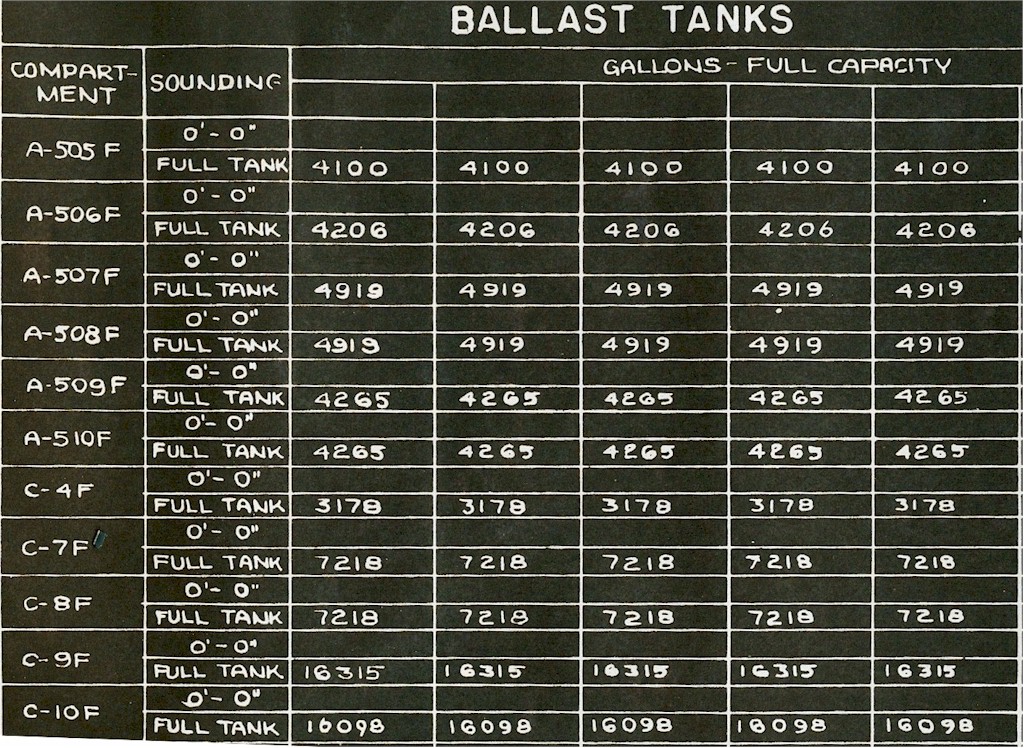

TANK CAPACITIES |
|
 |
 |
| TURBINE DATA |

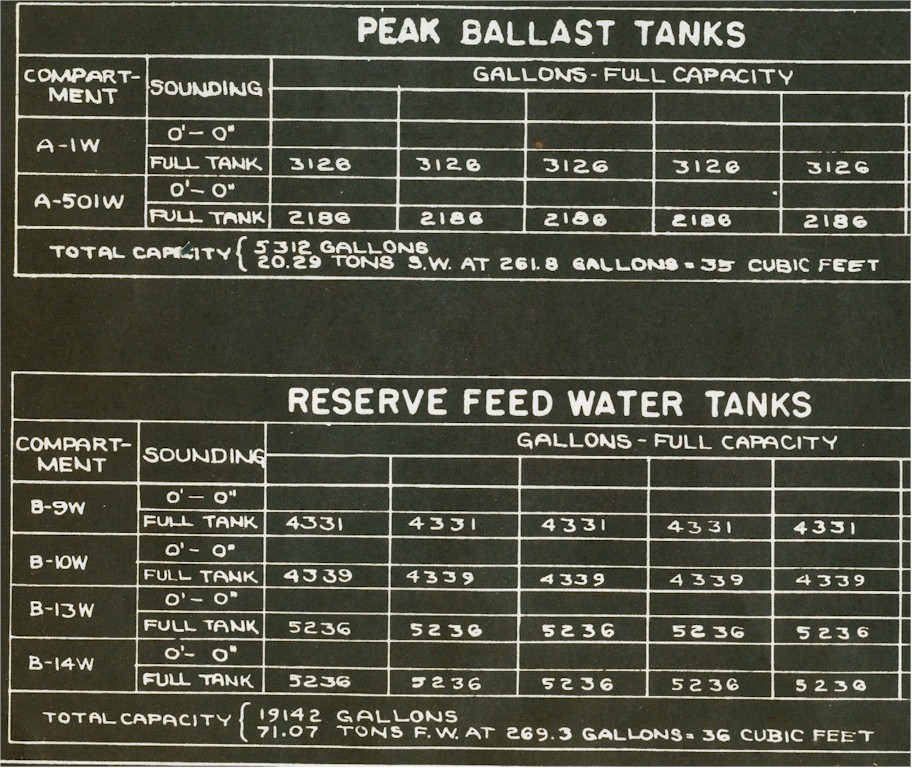

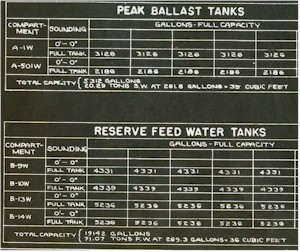

PEAK BALLAST & RESERVE FEED WATER TANKS |
 |
  |

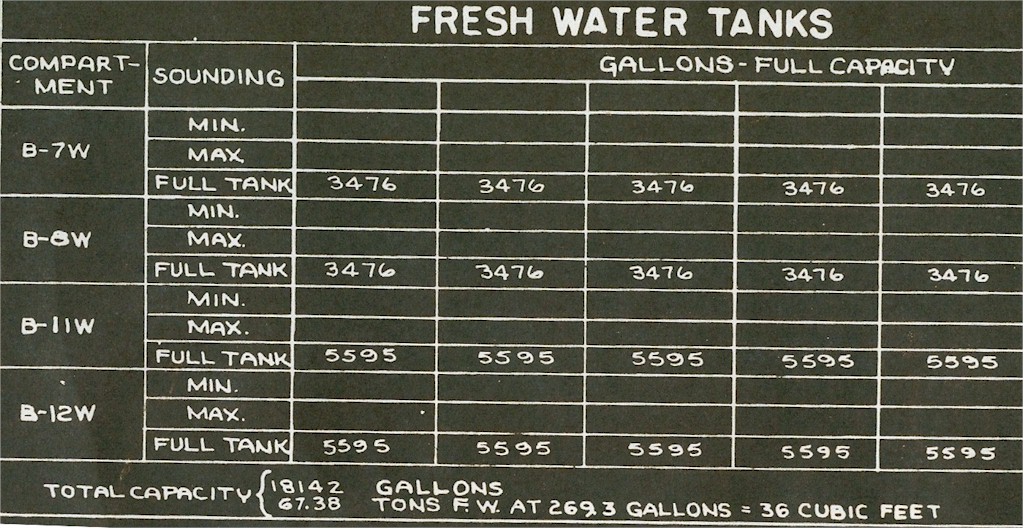

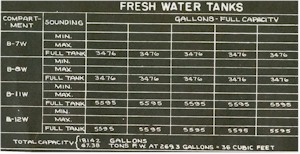

| FRESH WATER TANKS |

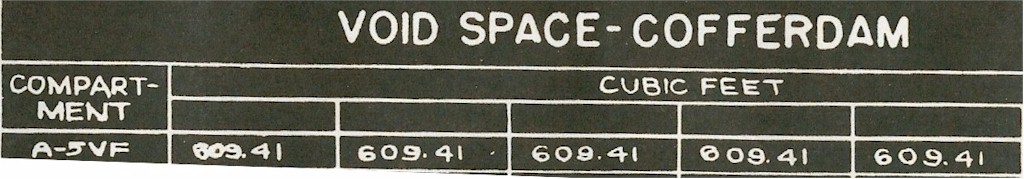

FUEL OIL SERVICE TANKS AND VOID SPACE |
 |
  |

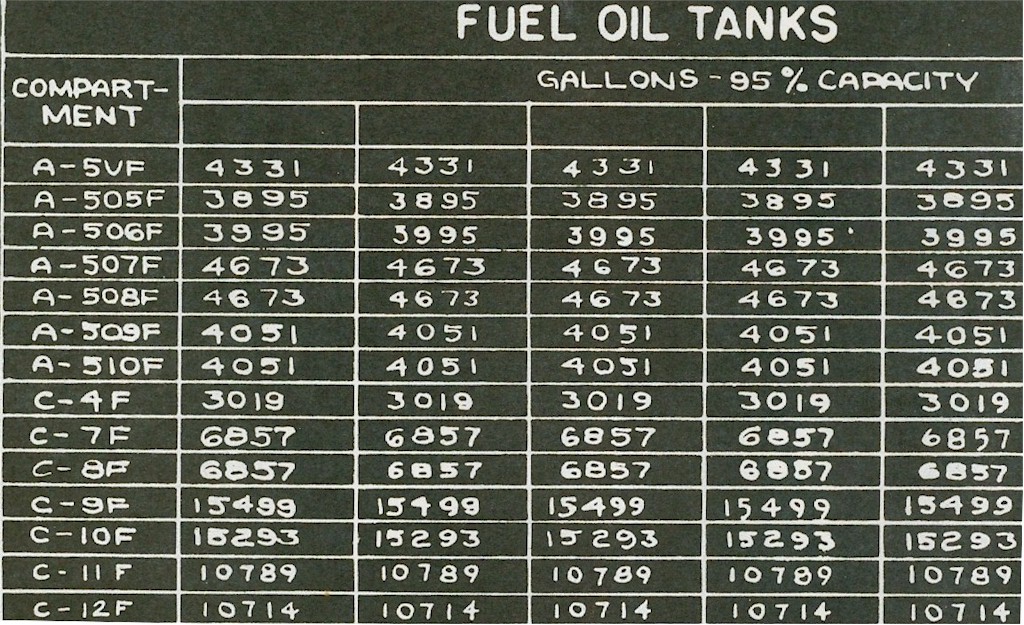

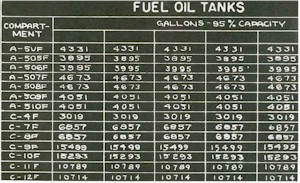

| FUEL OIL TANKS |

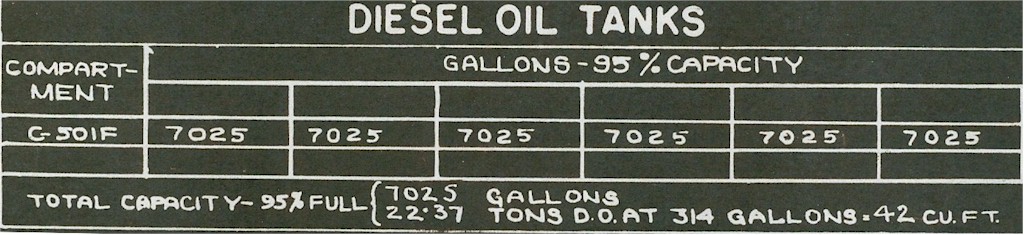

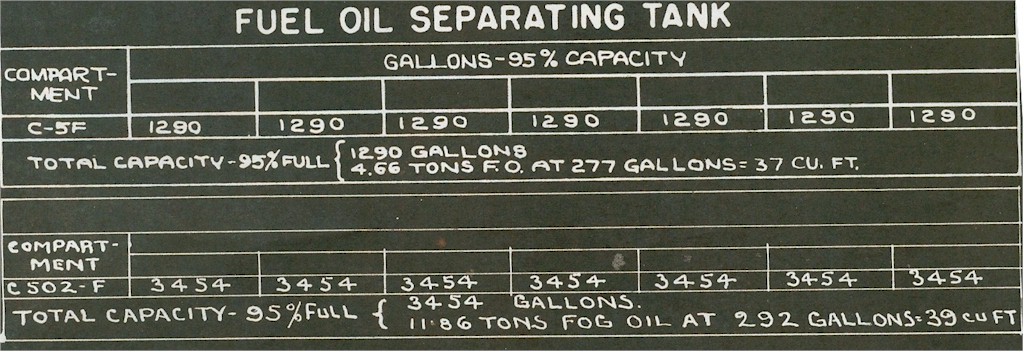

DIESEL OIL & FUEL OIL SEPARATING TANKS |
 |
|
|

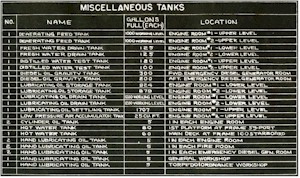

MISCELLANEOUS TANKS |
|
 |
|
|

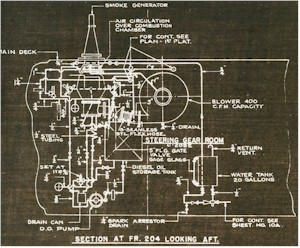

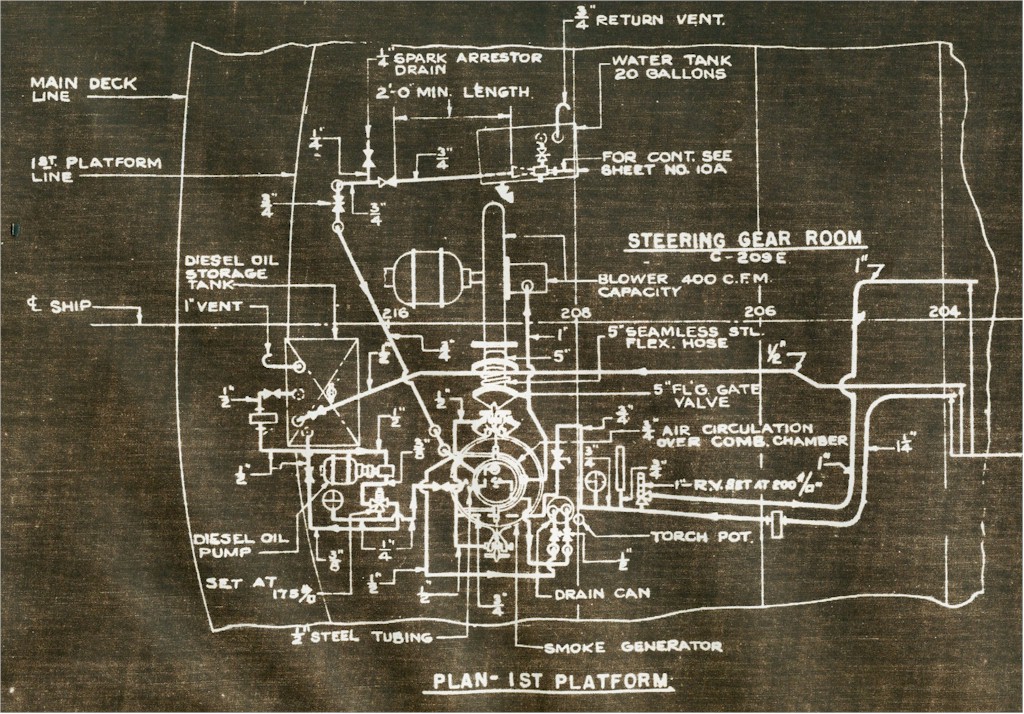

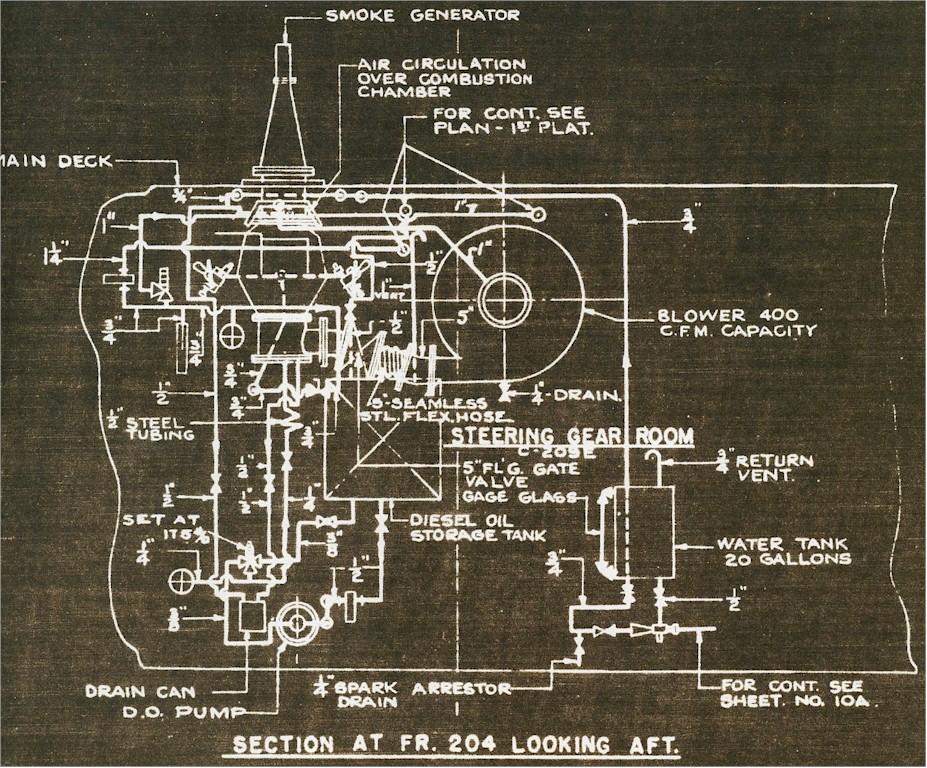

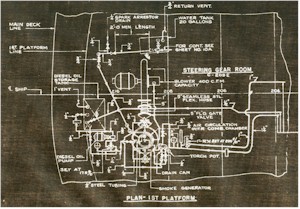

SMOKE MAKING EQUIPMENT |
|
 |
|
 |
 |
 |
|
|

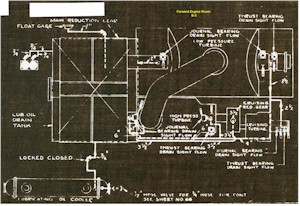

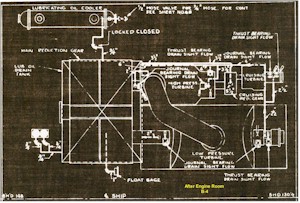

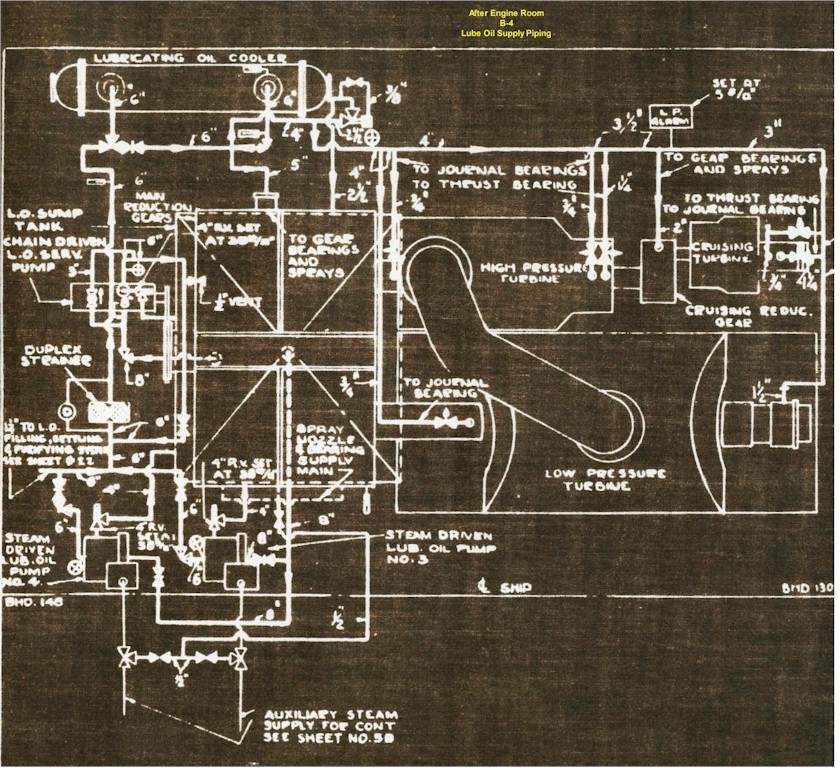

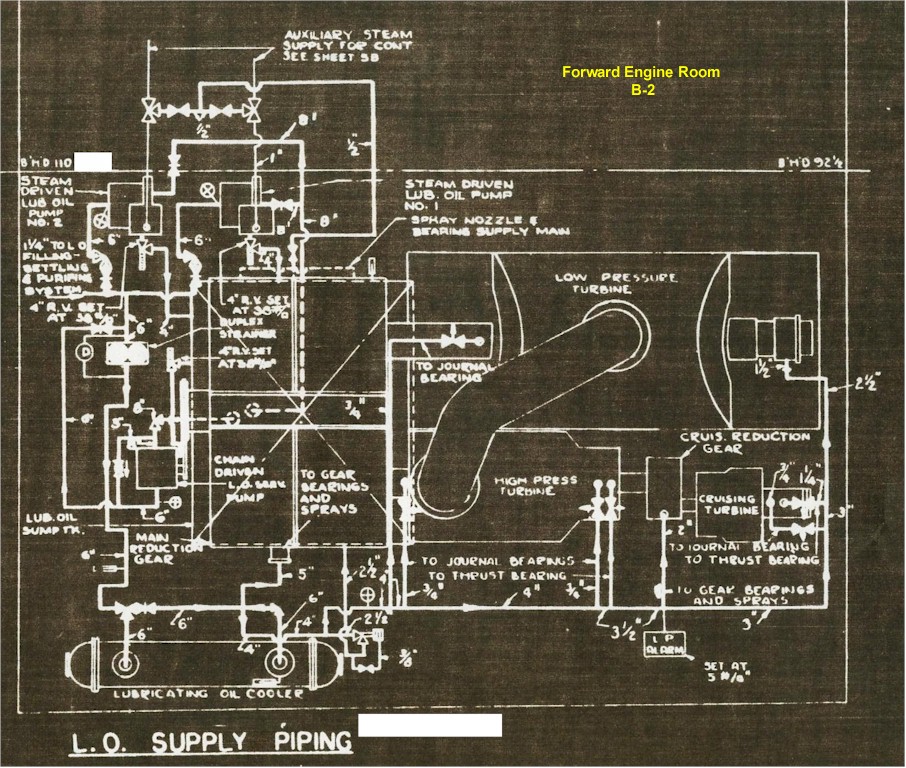

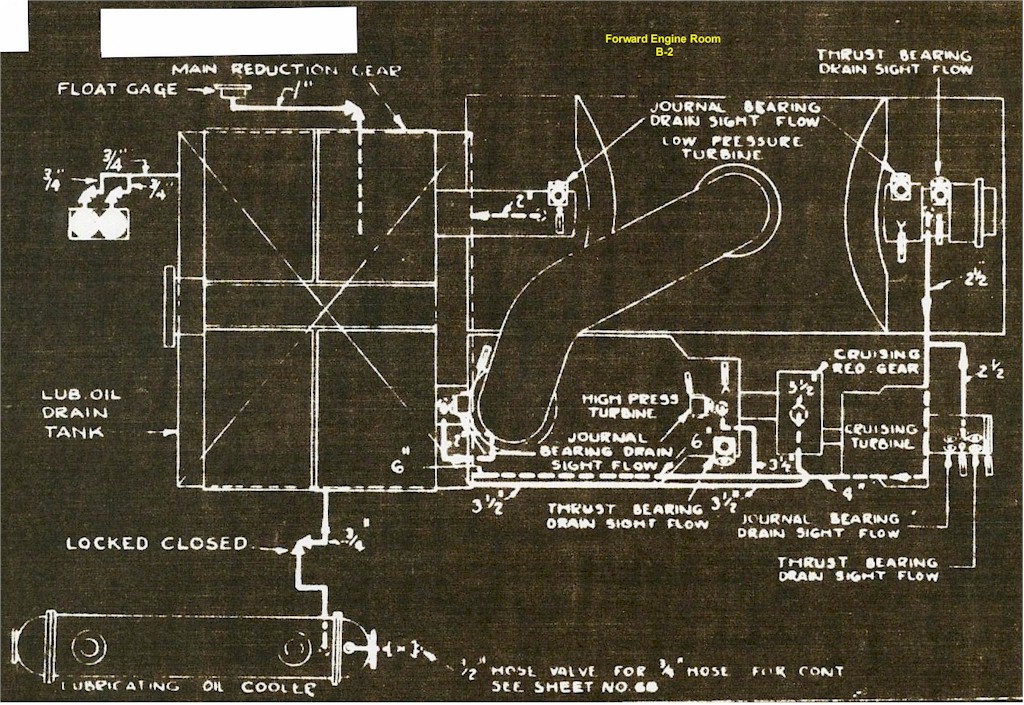

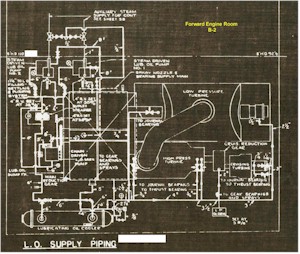

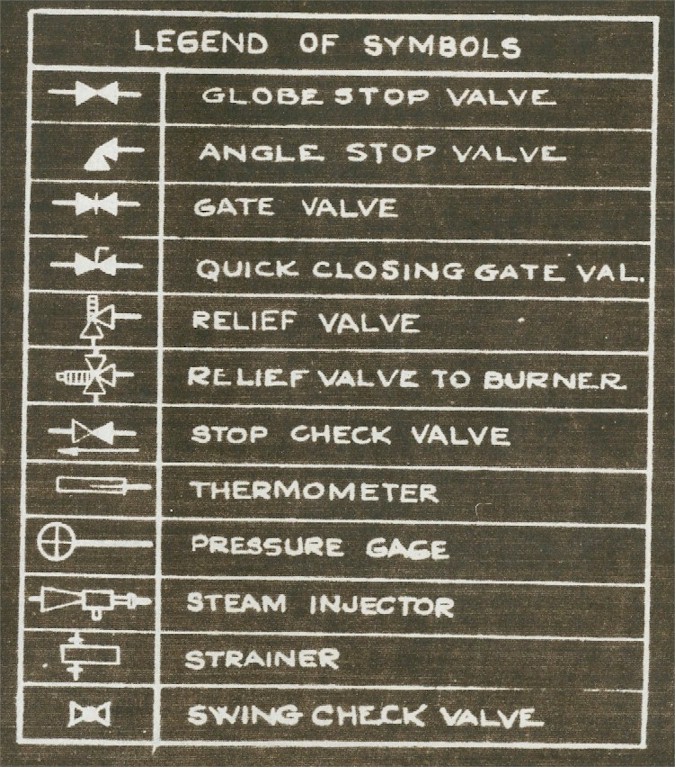

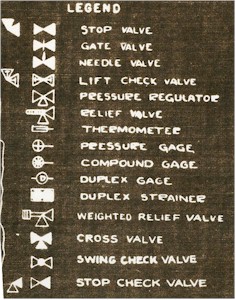

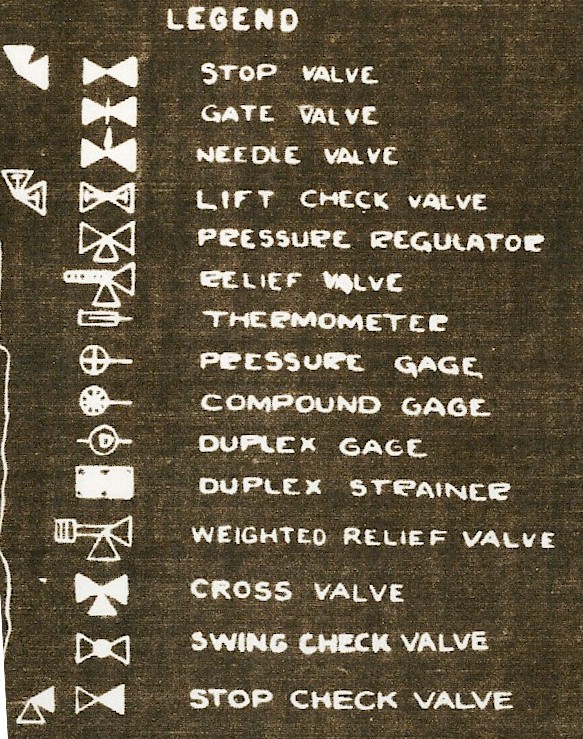

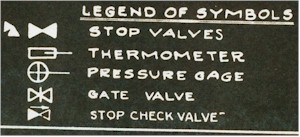

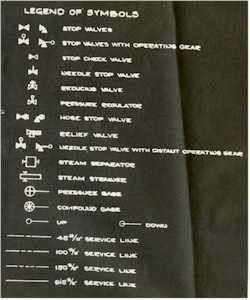

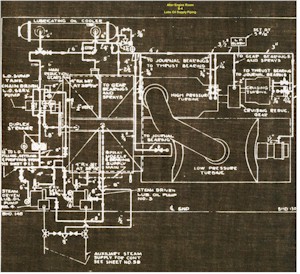

MAIN LUBRICATING OIL PIPING |
|
 |
|
 |
 |
 |
 |
 |
|
|

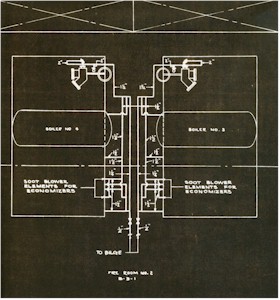

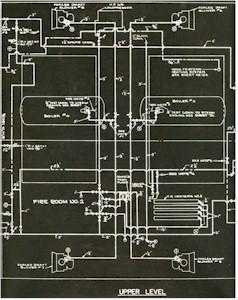

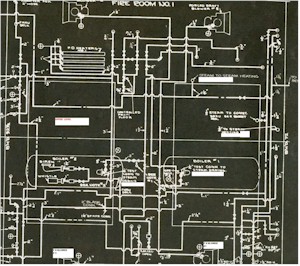

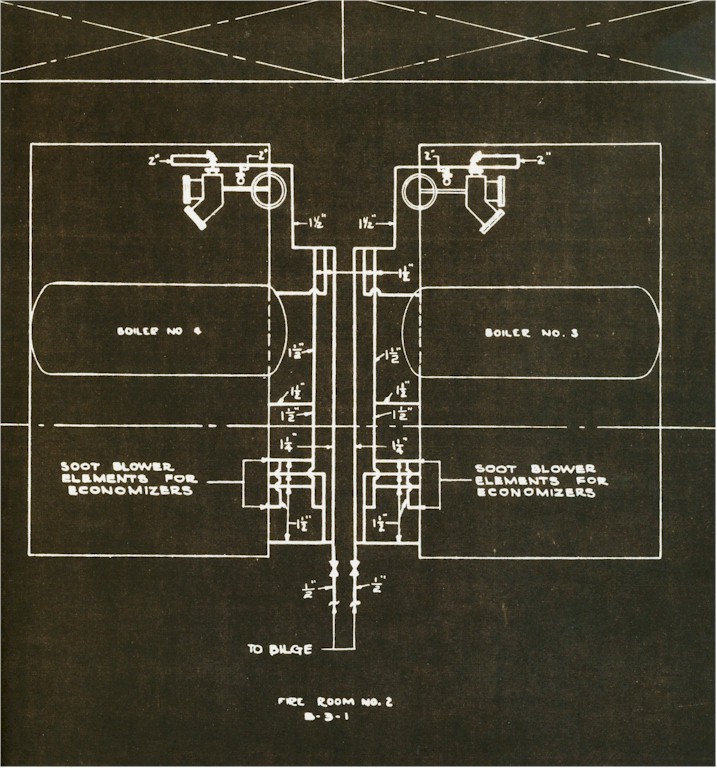

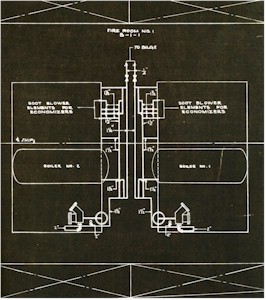

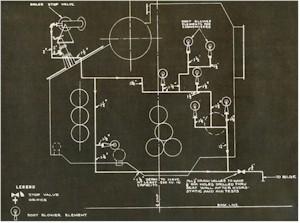

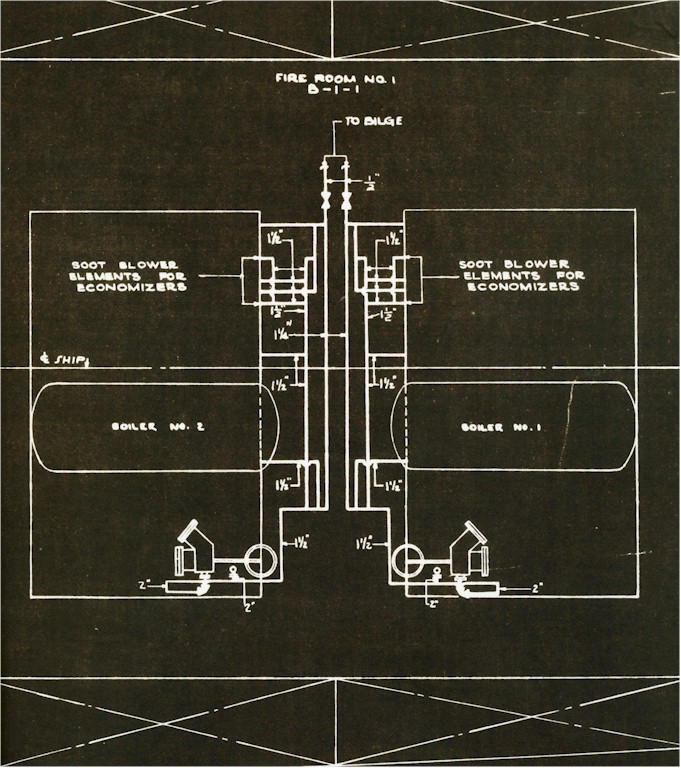

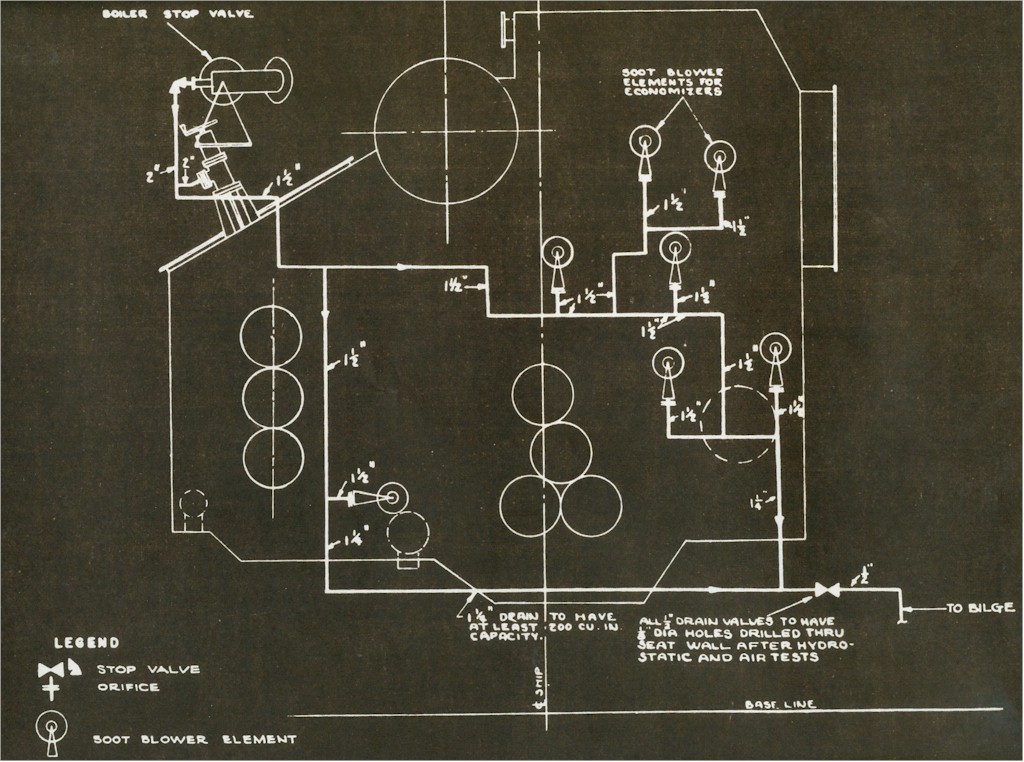

SOOT BLOWER PIPING |
|
 |
|
 |
 |
 |
|
|

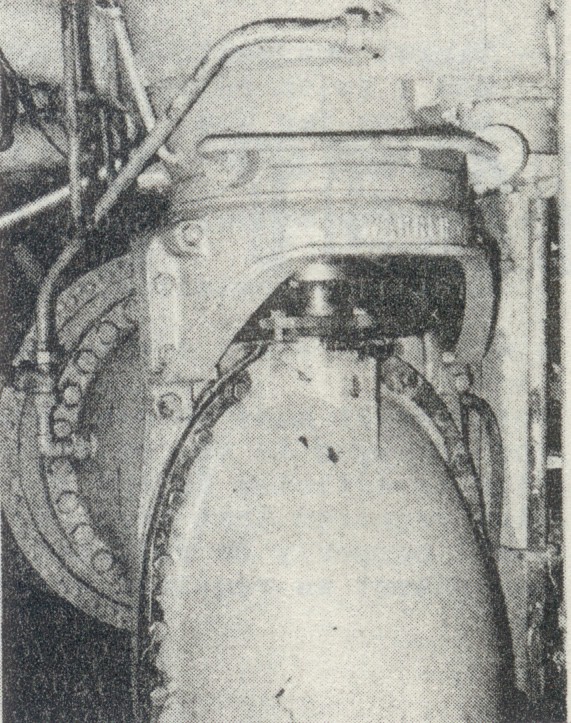

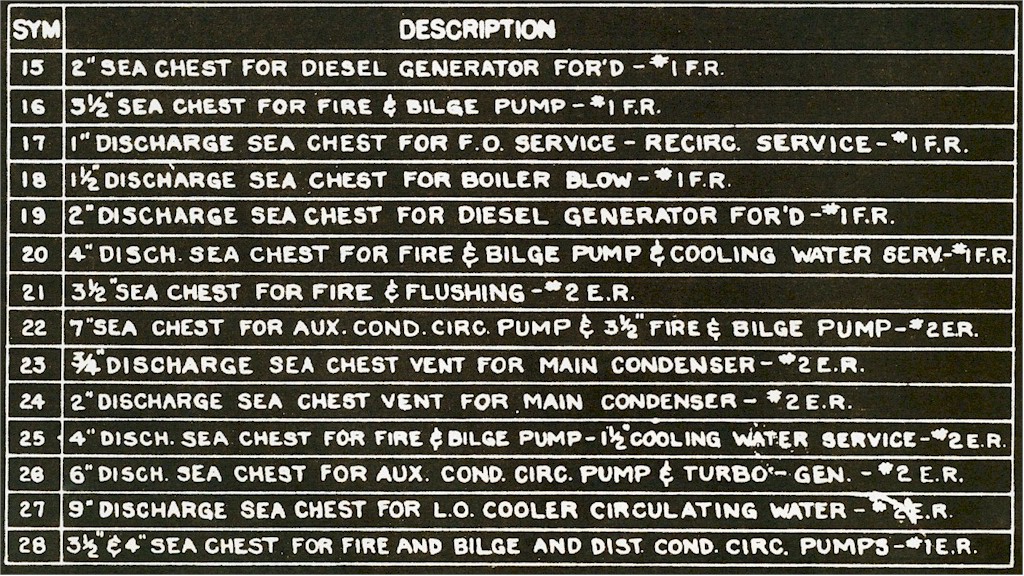

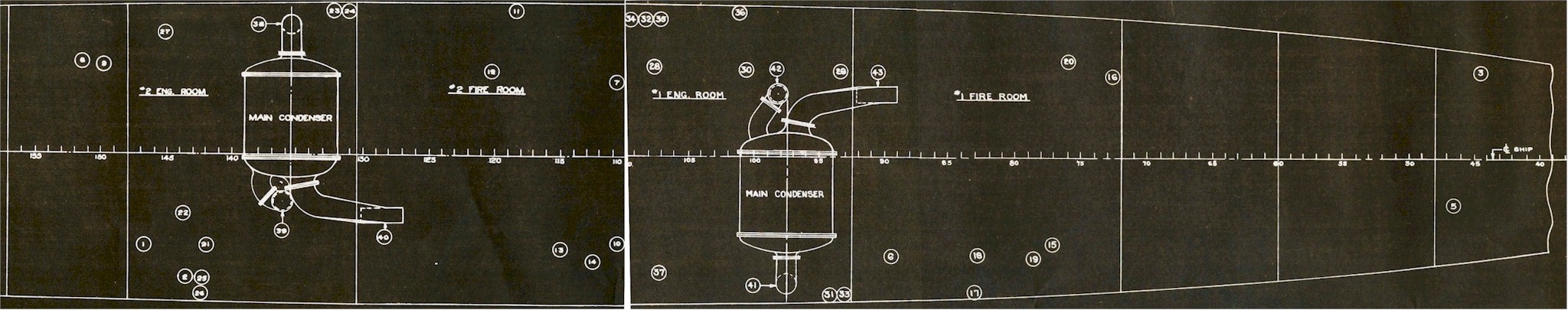

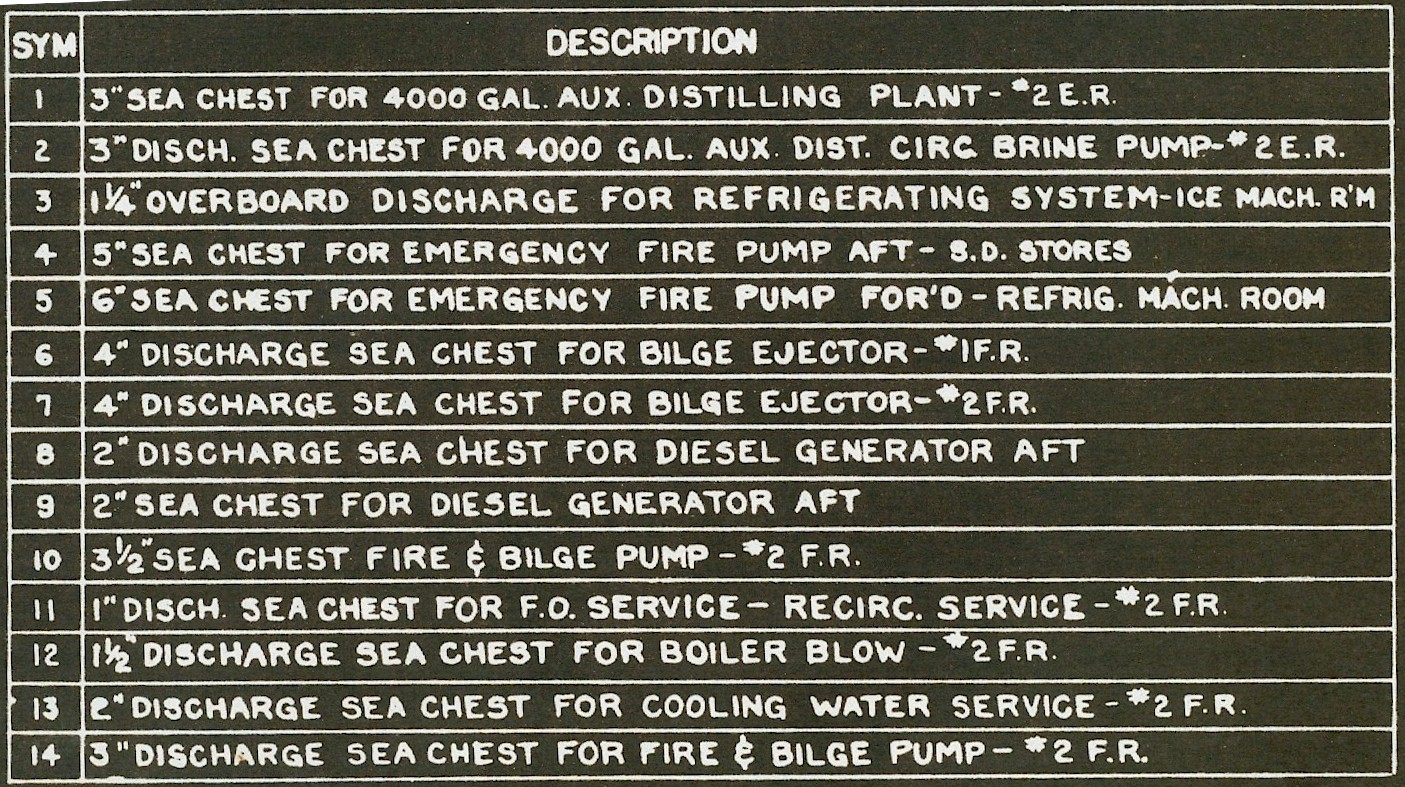

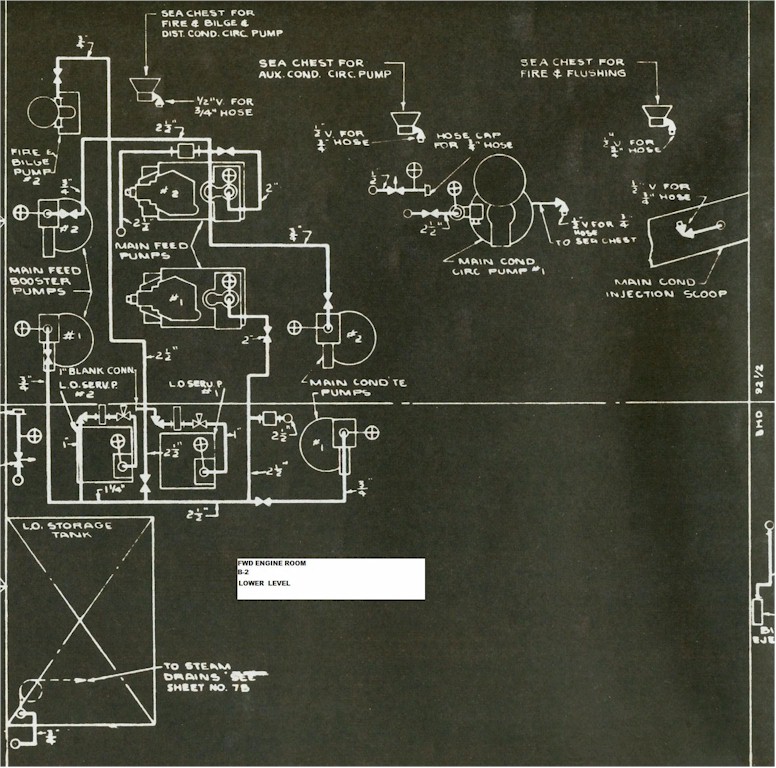

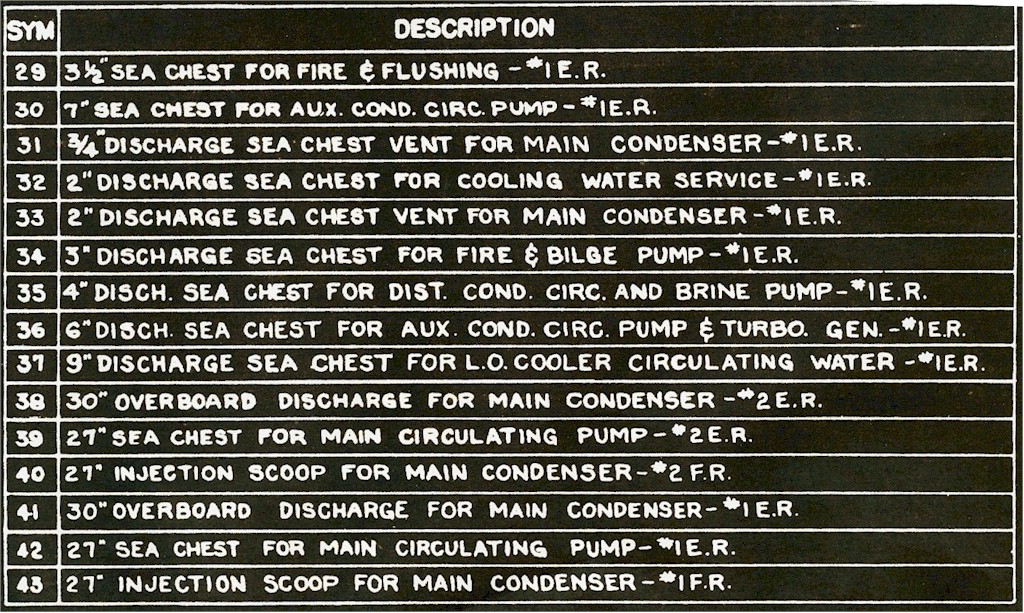

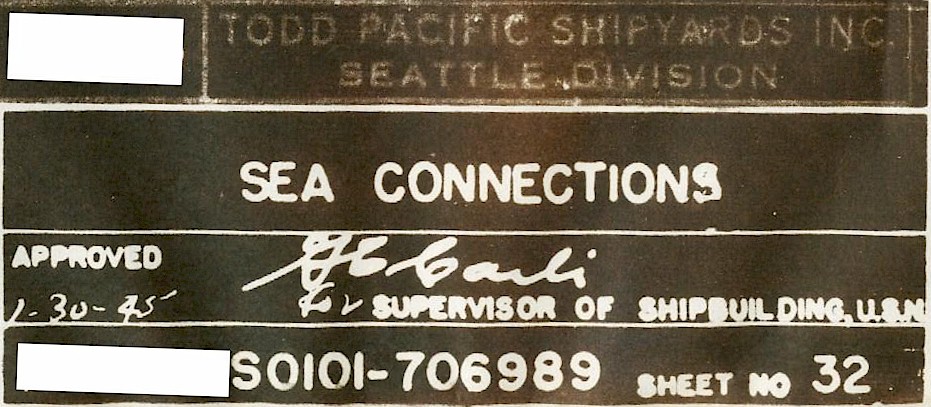

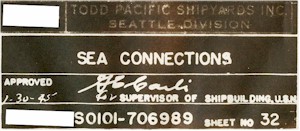

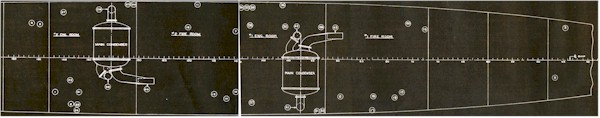

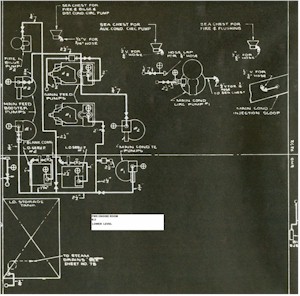

SEA CONNECTIONS / SEA CHESTS Sea chests are openings in the ship's hull below the water line. They vary in size and shape and serve as in-takes or discharges between the ship and its sea valves for the drawing in or expulsion of seawater for the ship's cooling system. Some sea chests are equipped with blow-out holes through which blasts of air or steam help to clear any obstructions to water flow. |
|
 |
 |
 |
 |
||
 |
||

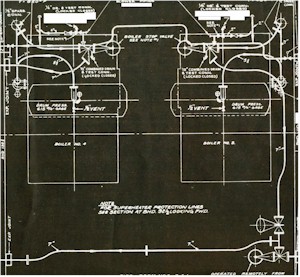

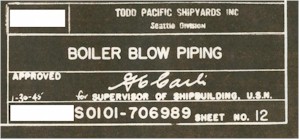

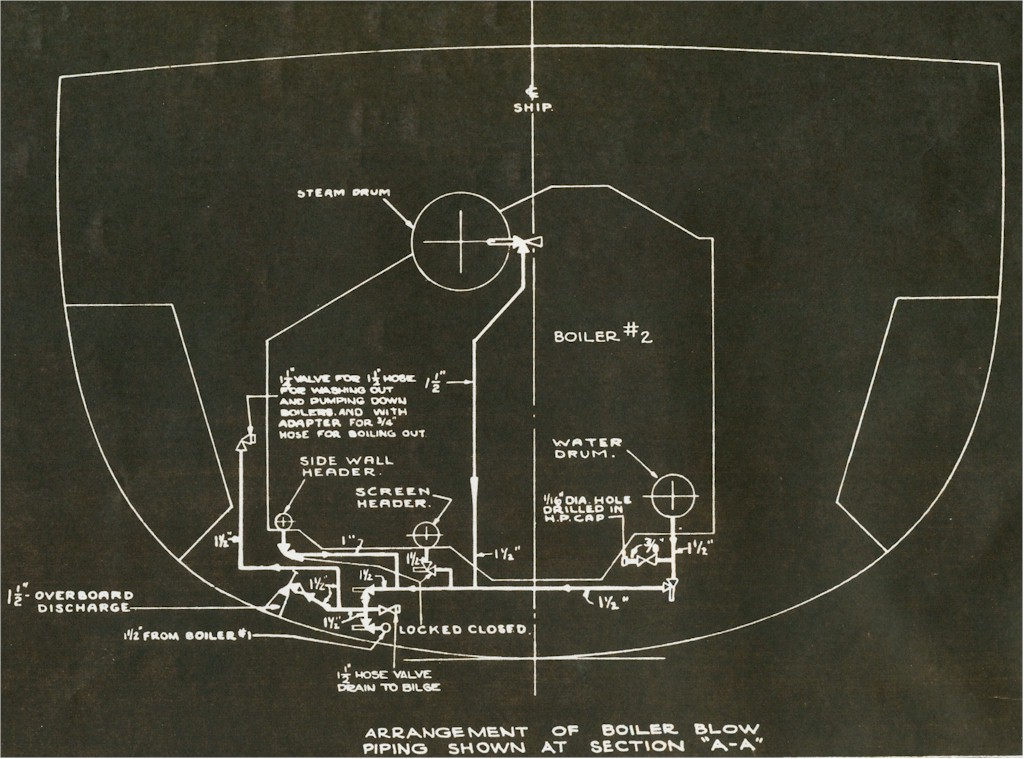

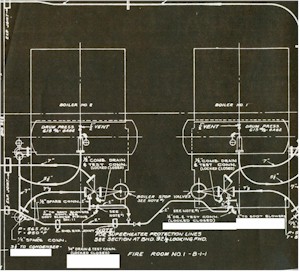

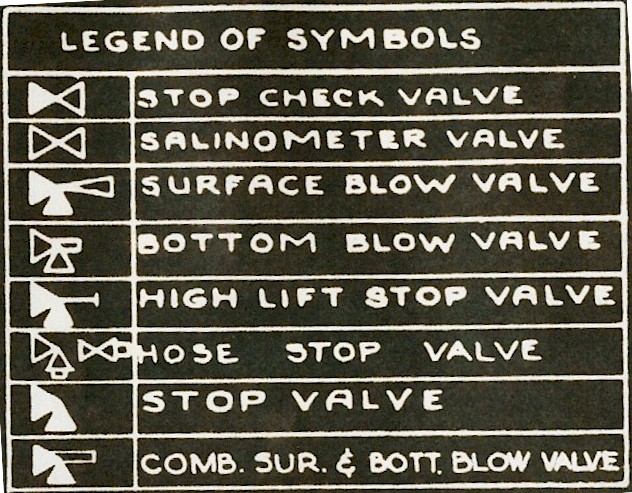

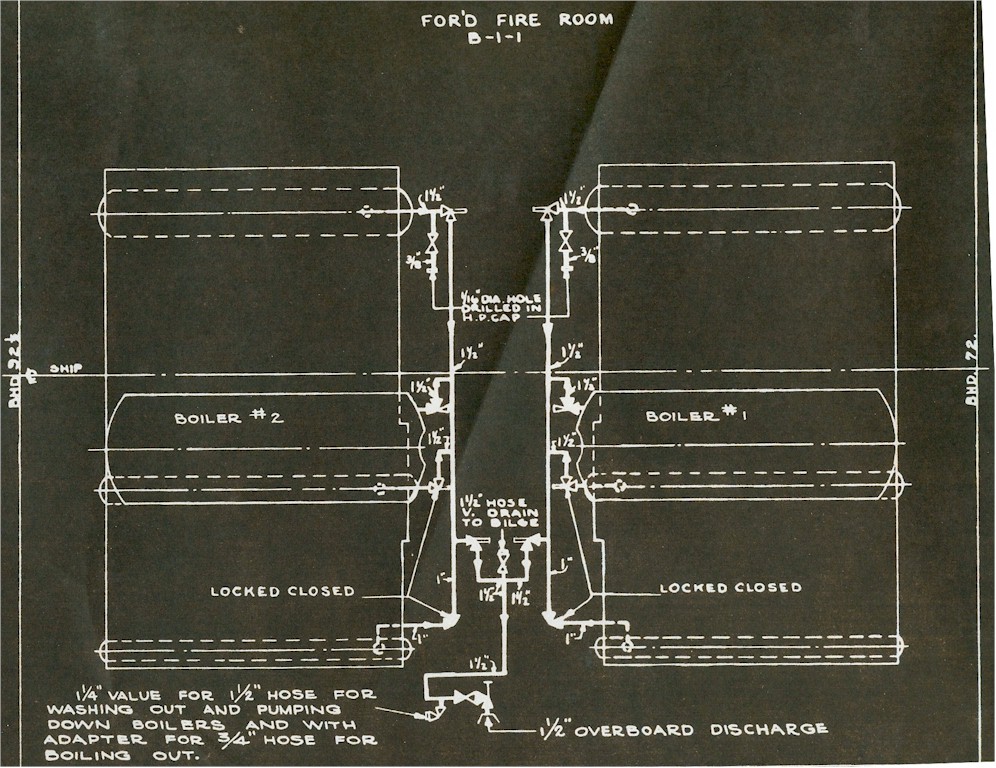

| BOILER
BLOW PIPING |
||
 |
||
 |
 |
 |
 |
|

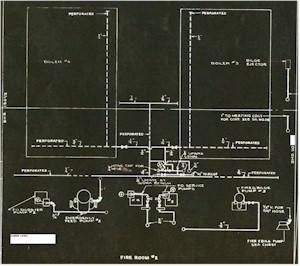

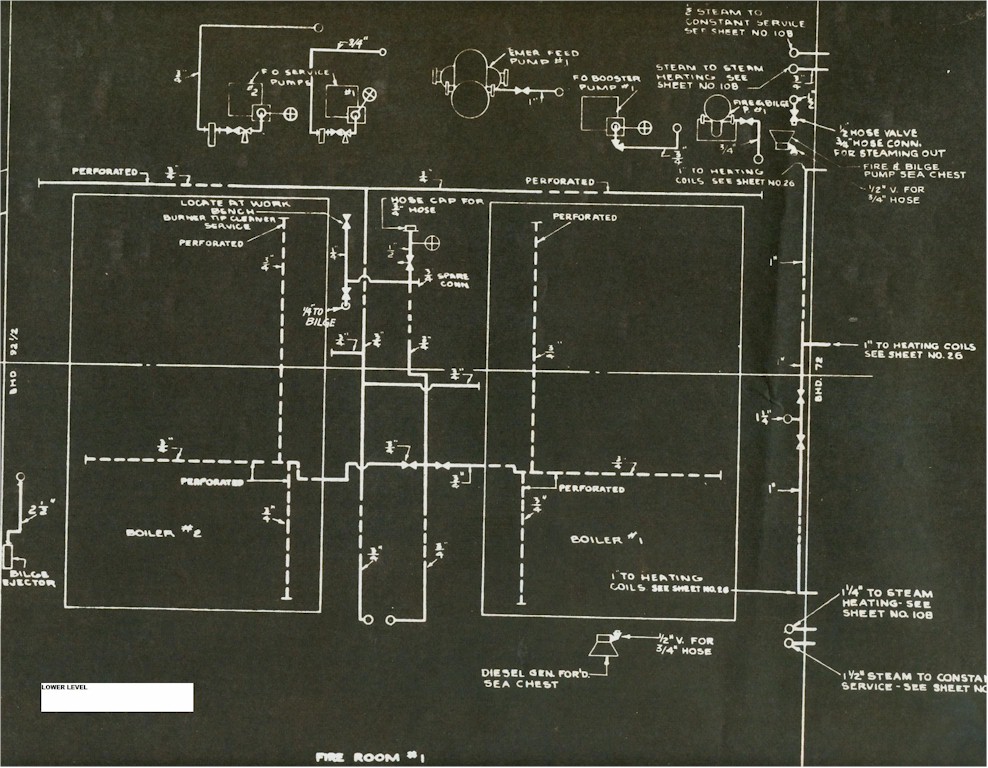

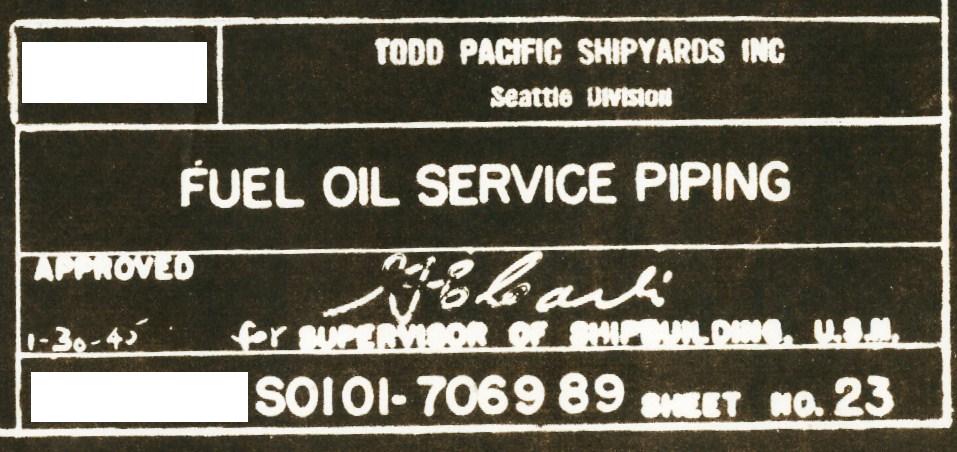

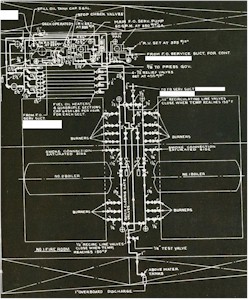

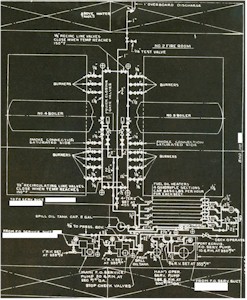

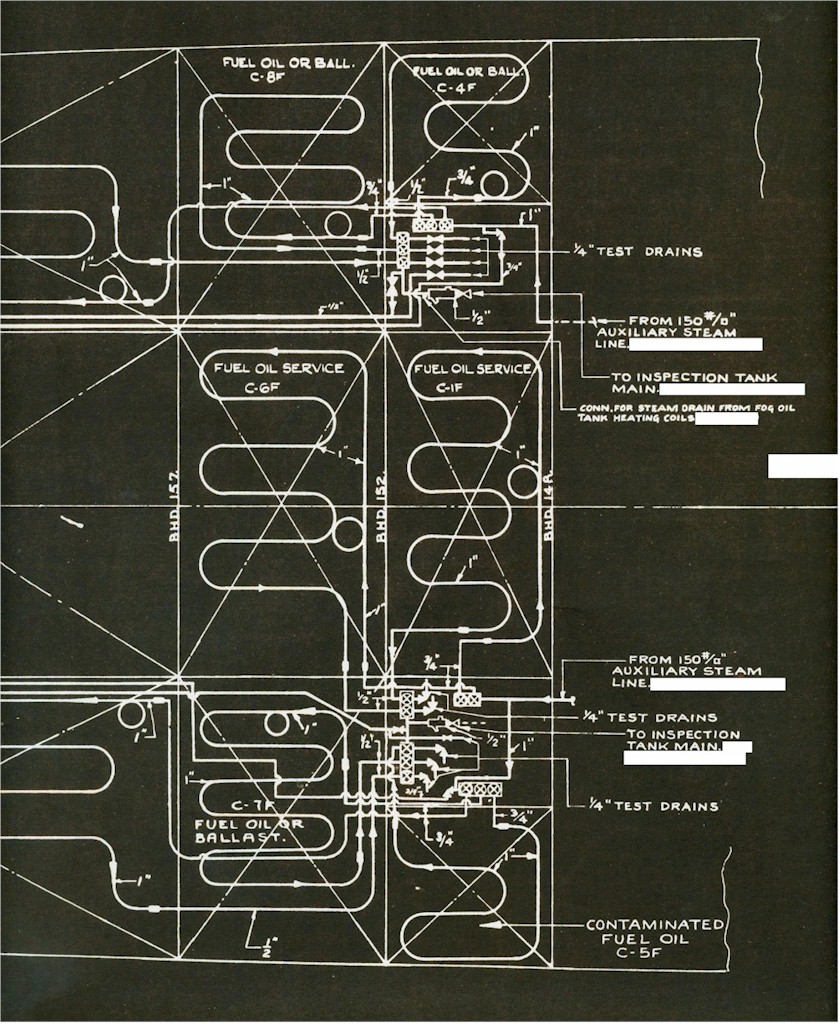

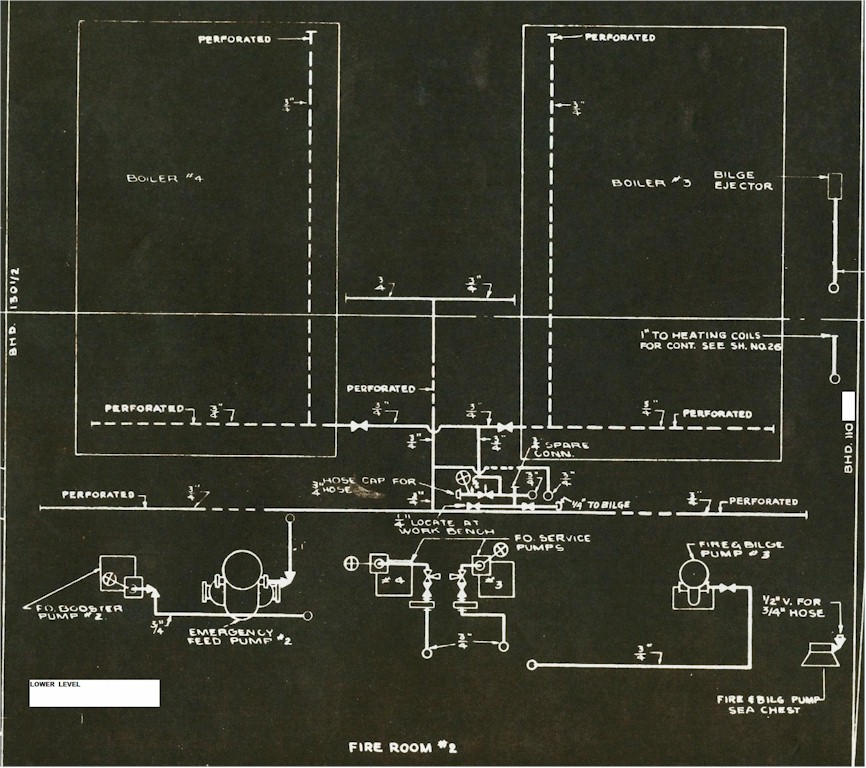

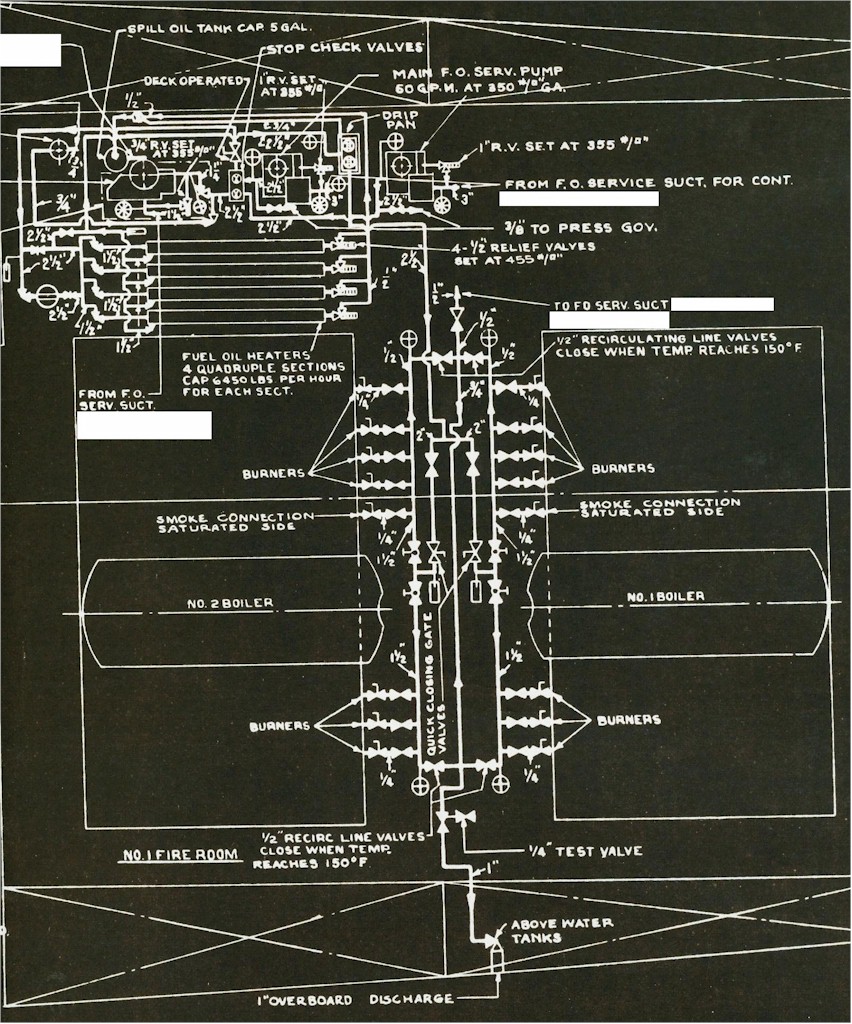

| FUEL OIL

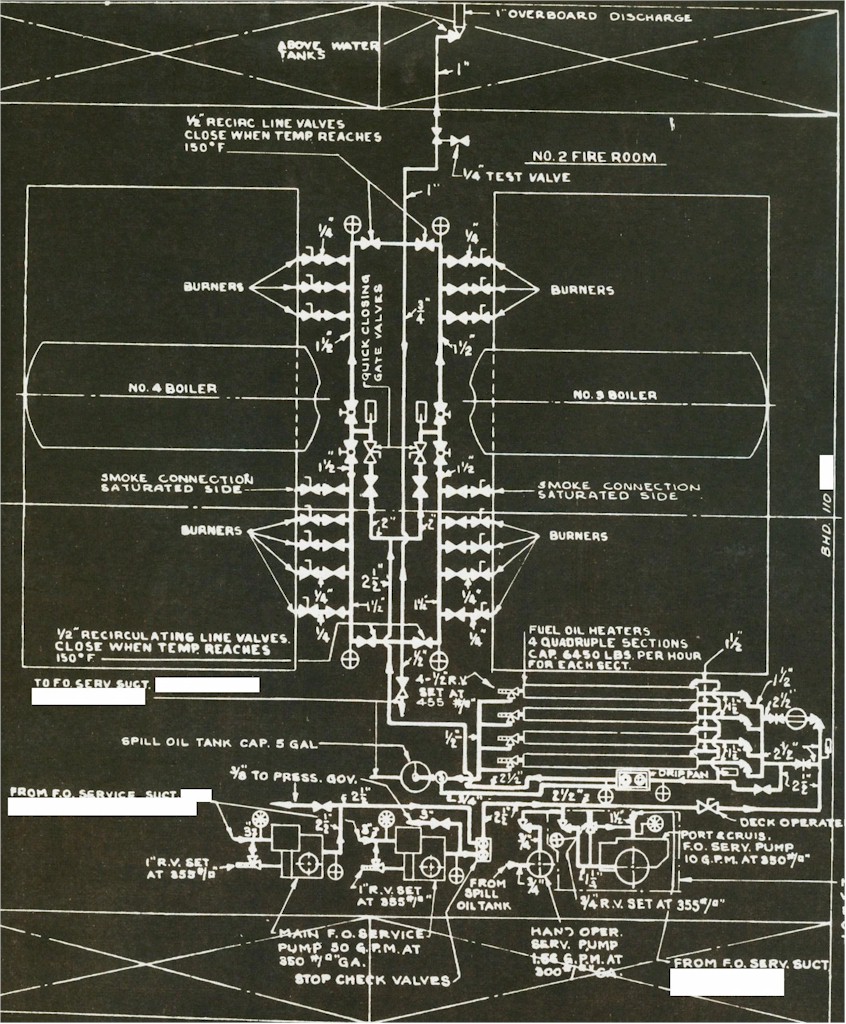

SERVICE PIPING |
|
 |
|
 |
 |
 |
|

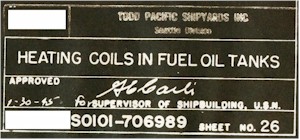

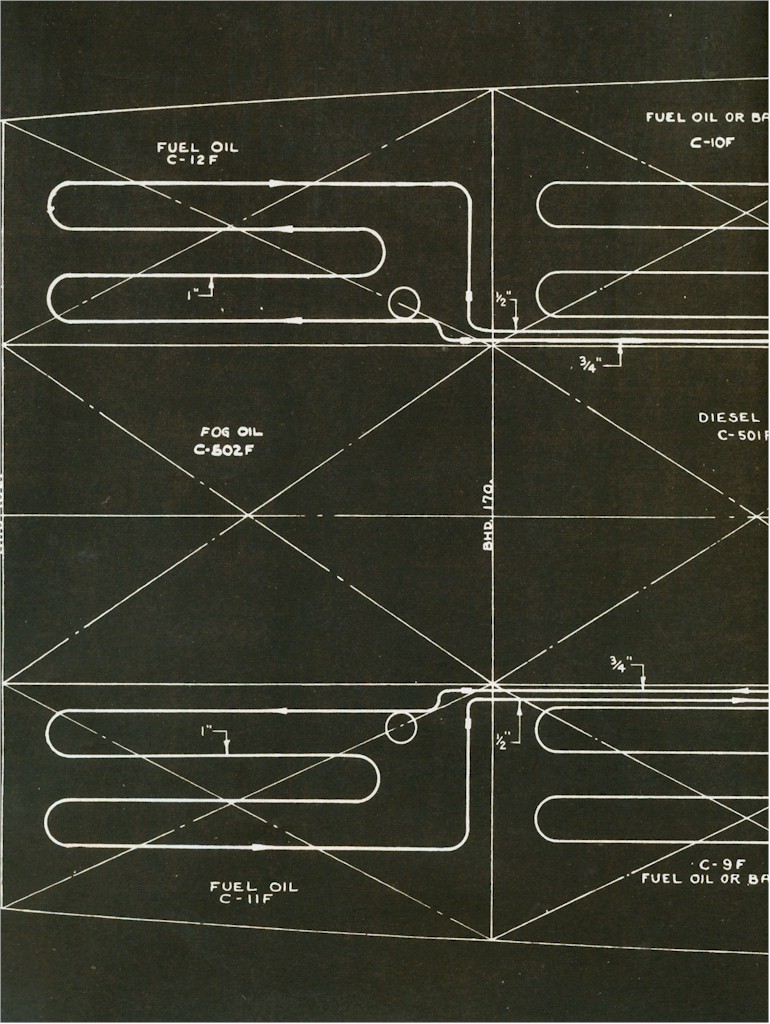

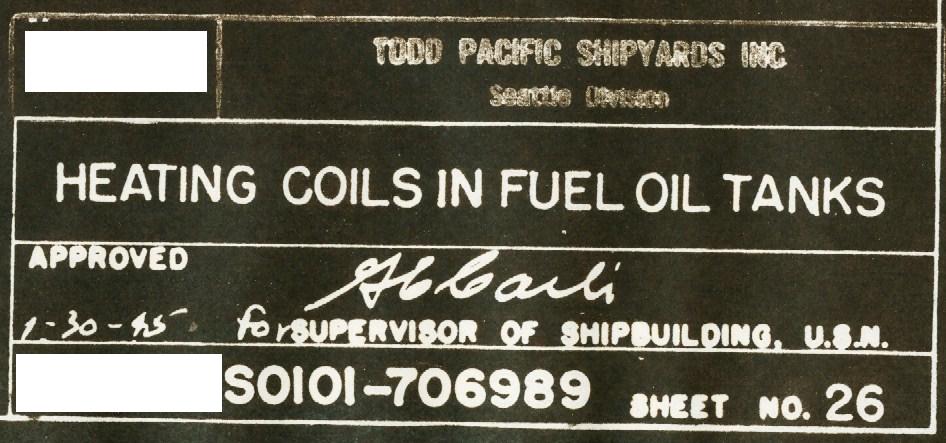

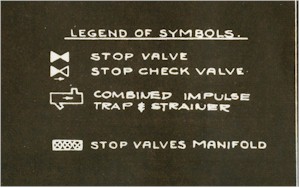

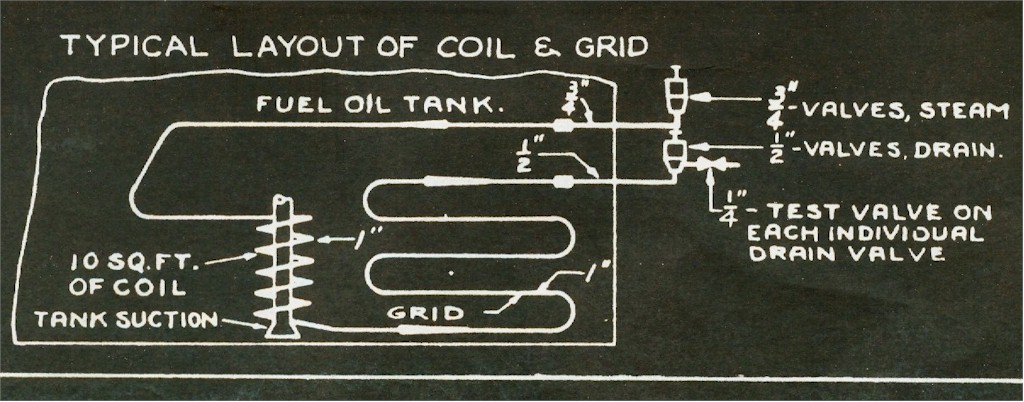

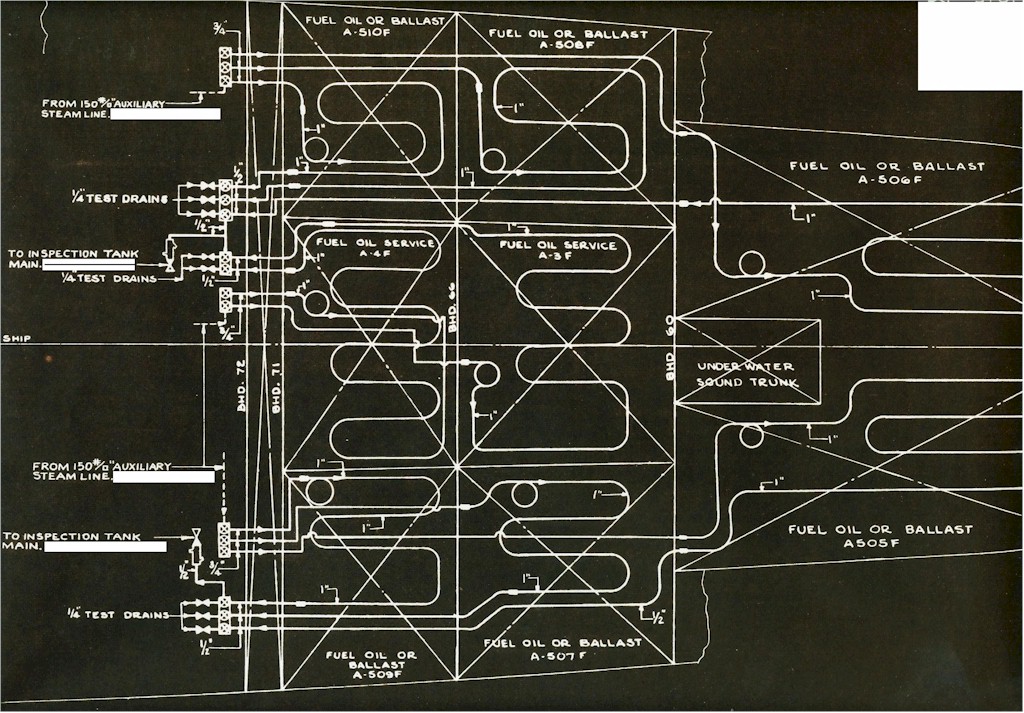

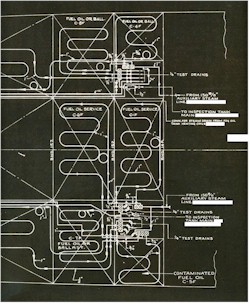

| HEATING

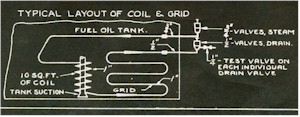

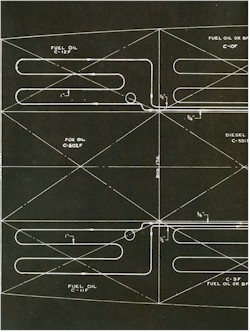

COILS IN FUEL OIL TANKS |
|
 |
 |
 |
 |
 |
 |
|

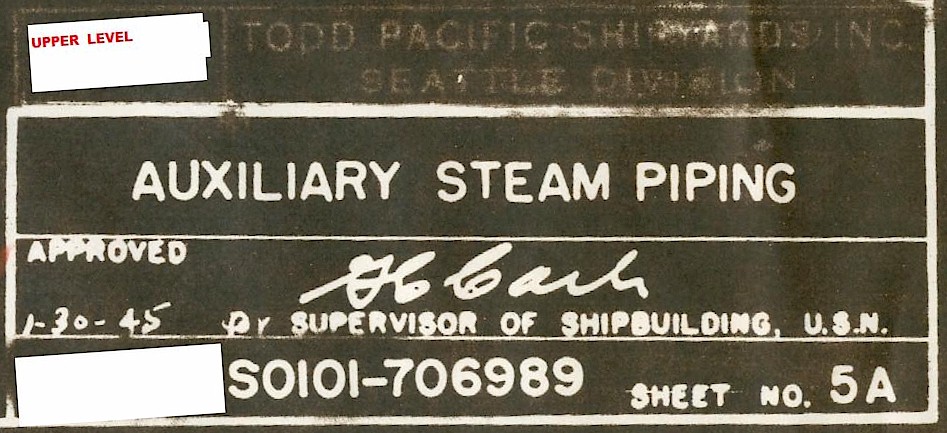

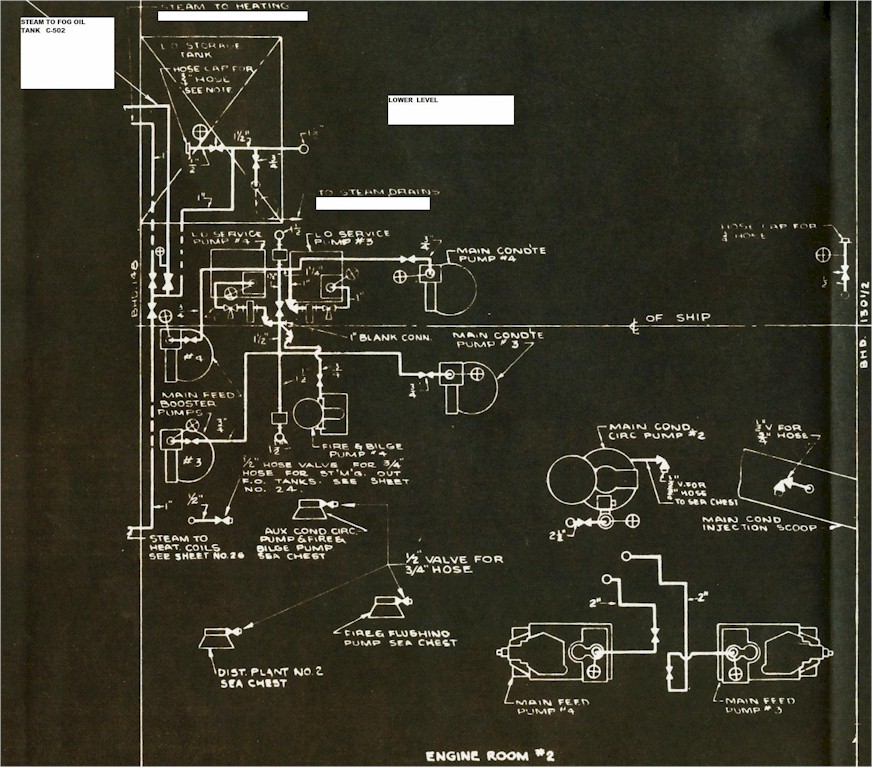

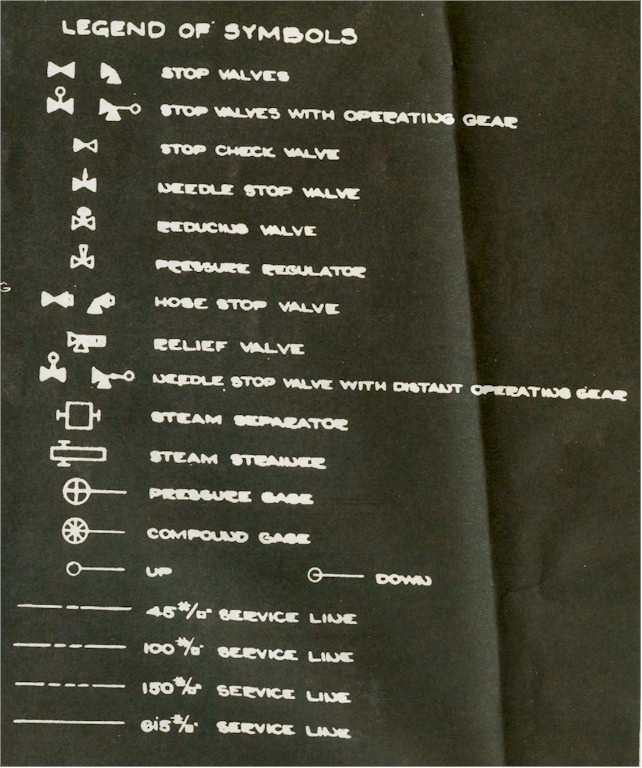

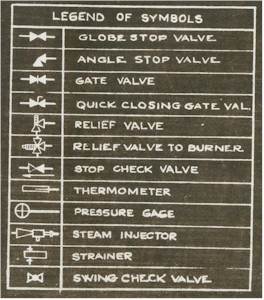

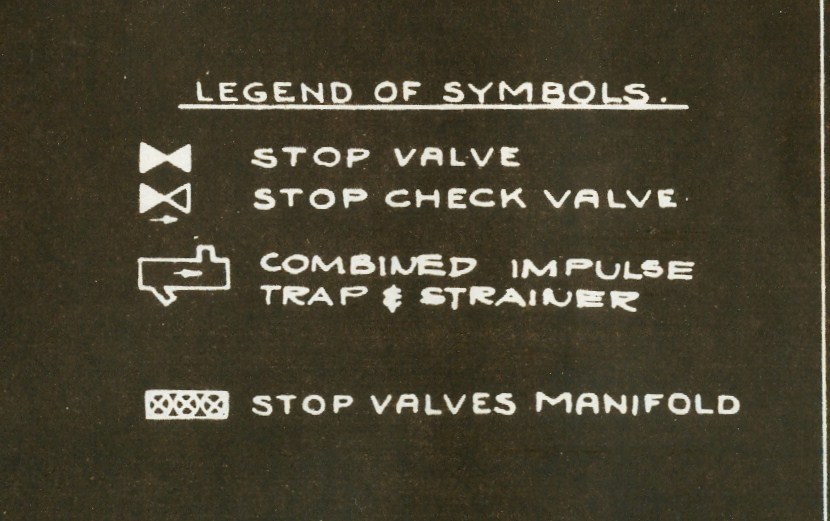

| AUXILIARY

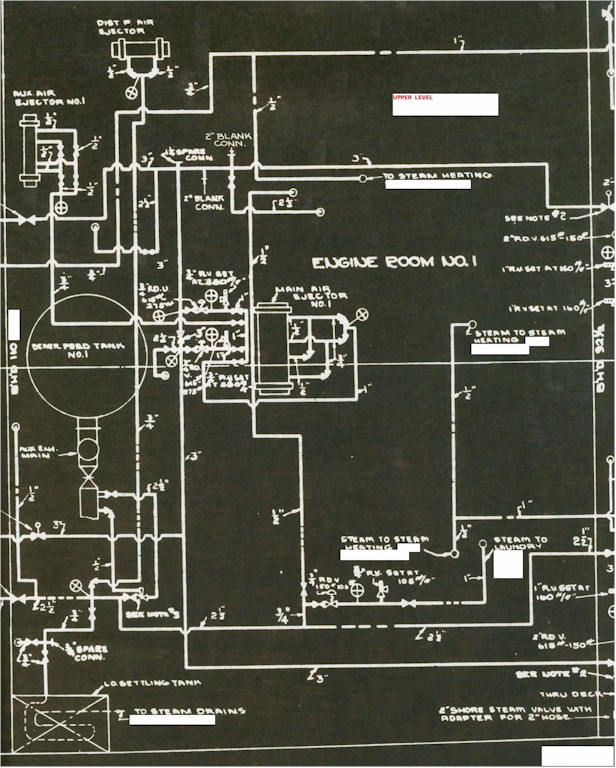

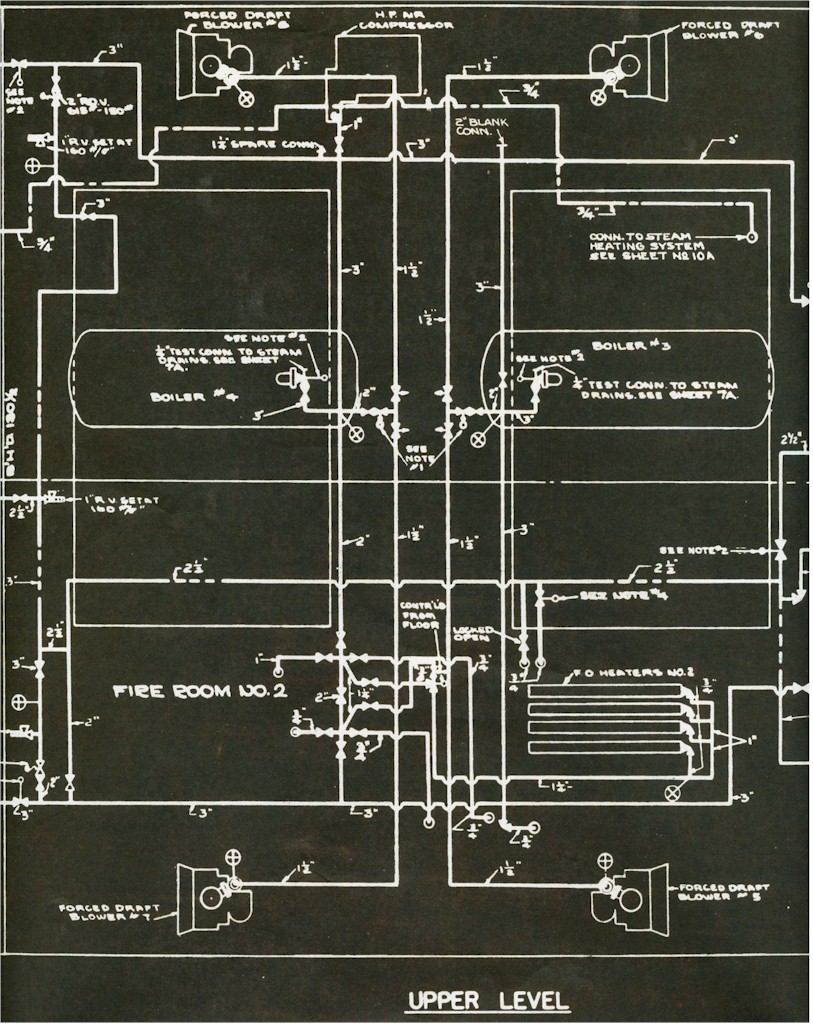

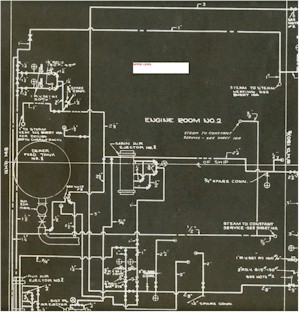

STEAM PIPING |
|
 |
|
 |
 |
 |
 |
 |
|

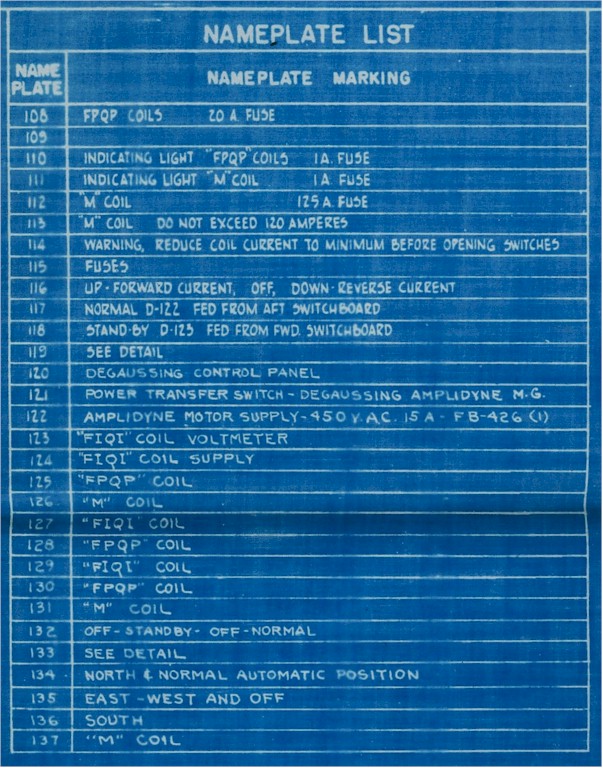

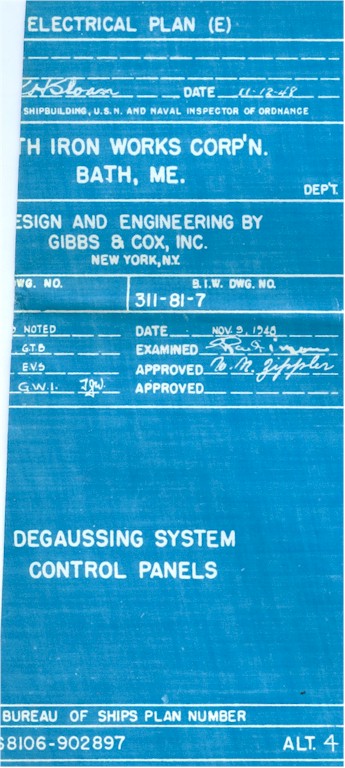

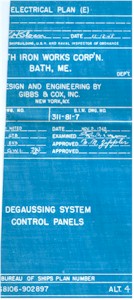

| DEGAUSSING

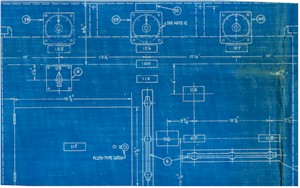

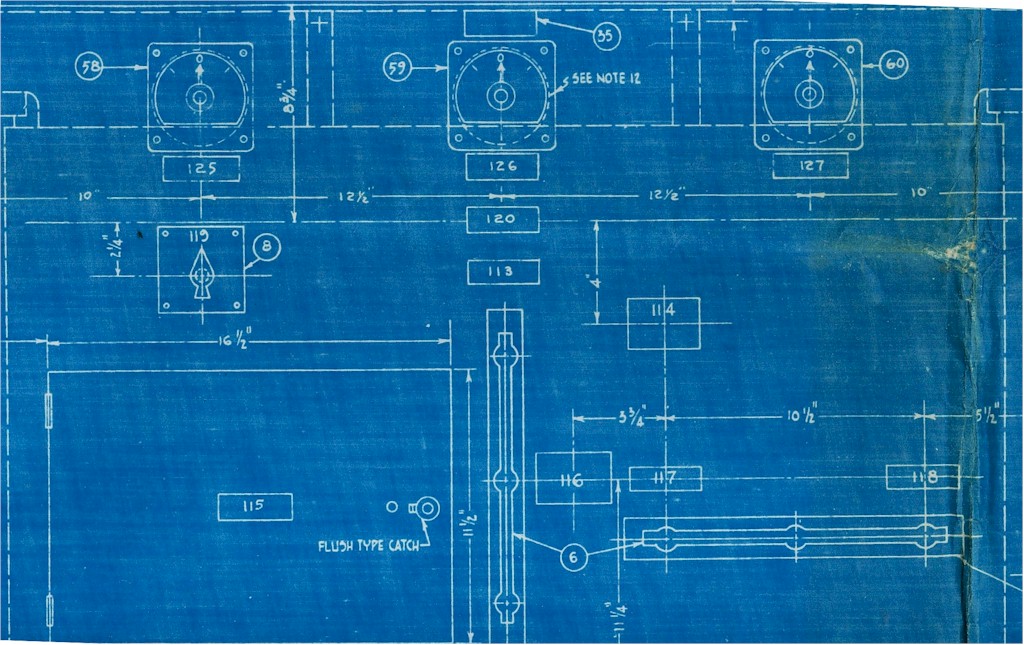

SYSTEM CONTROL PANELS |
|
 |
 |

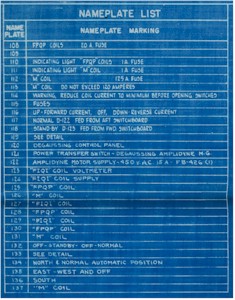

| LIST OF MATERIAL | ||||
| ITEM NUMBER | QUANTITY | DESCRIPTION | ||
| 6 | 2 | Switch Lock | ||
| 8 | 1 | Nameplates, Phenolic, Laminated | ||
| 35 | 1 | Manufacturers Nameplate | ||
| 58 | 1 | Ammeter DC Scale 20-0-20 | ||
| 59 | 1 | Ammeter DC Scale 130-0-130 | ||
| 60 |
1 |
Ammeter DC Scale 15-0-15 |
||
 |
|

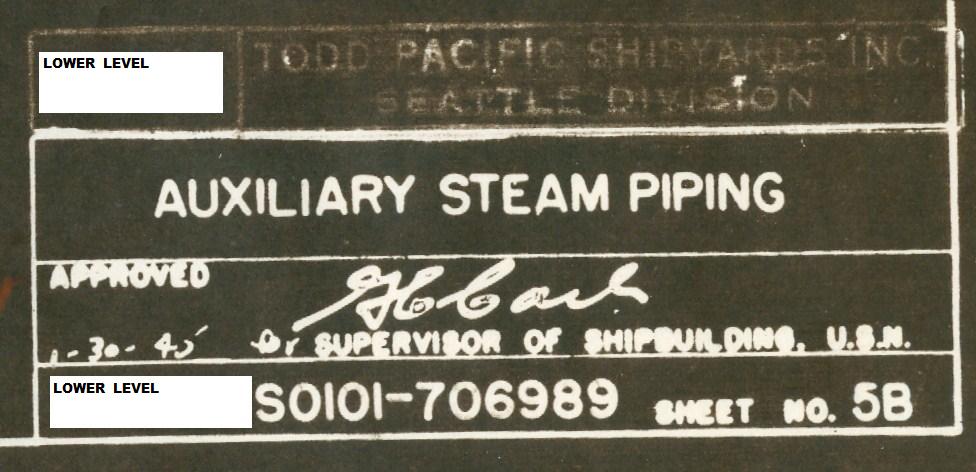

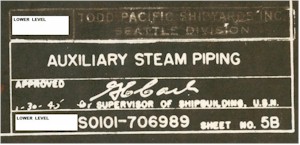

| AUXILIARY
STEAM PIPING |
|
 |
 |
 |
 |
 |
 |
 |
|

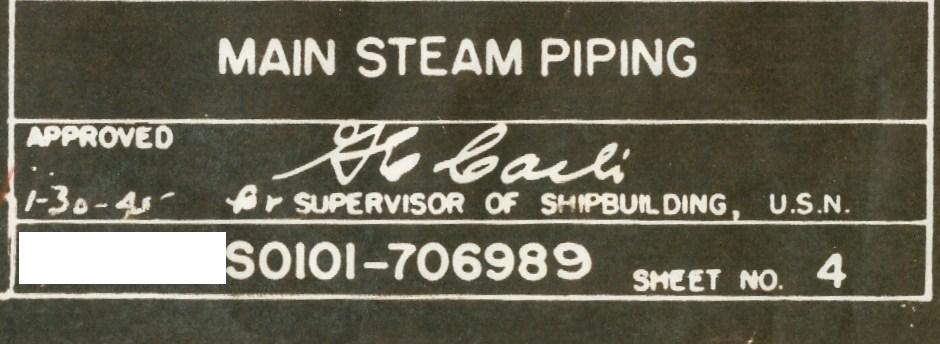

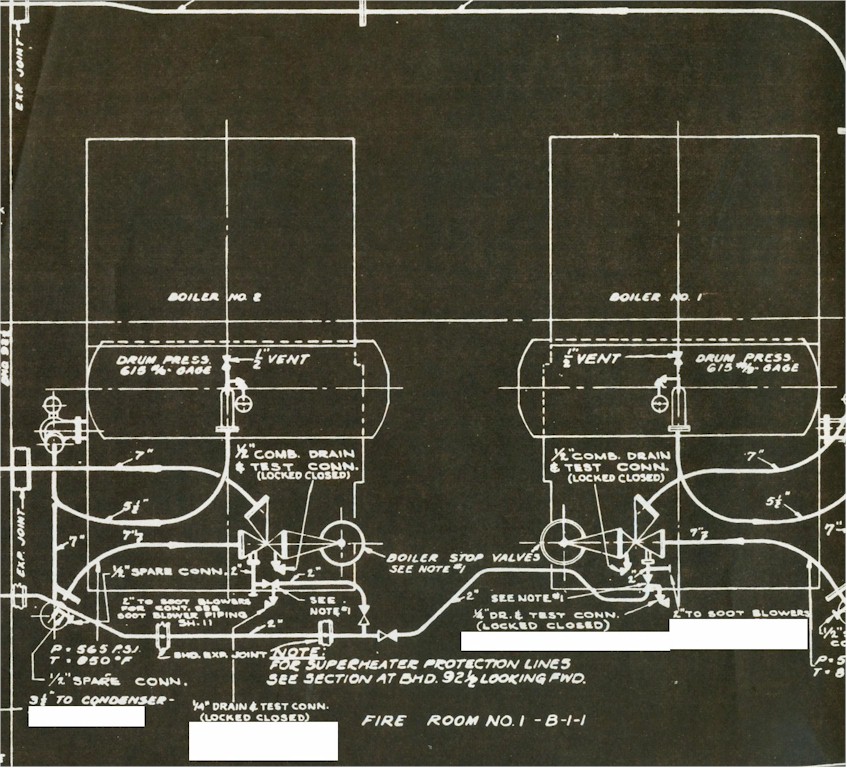

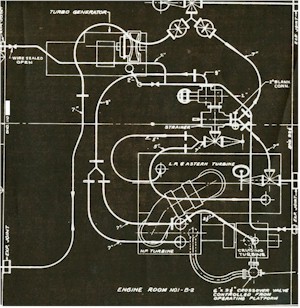

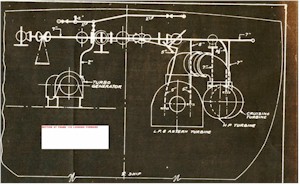

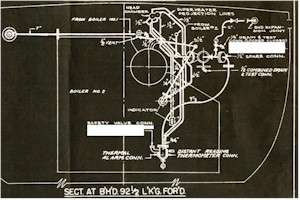

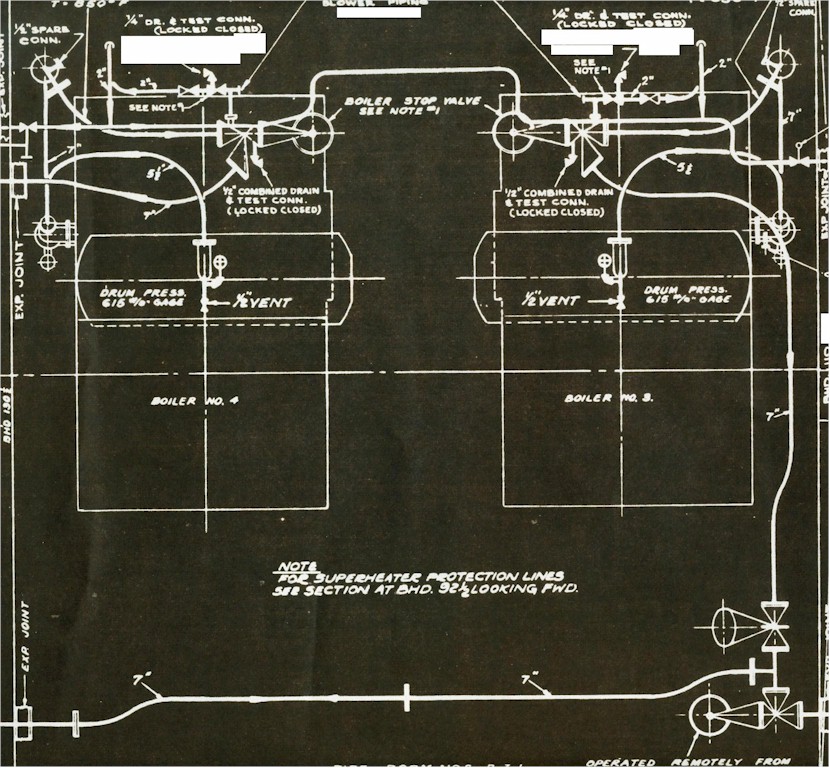

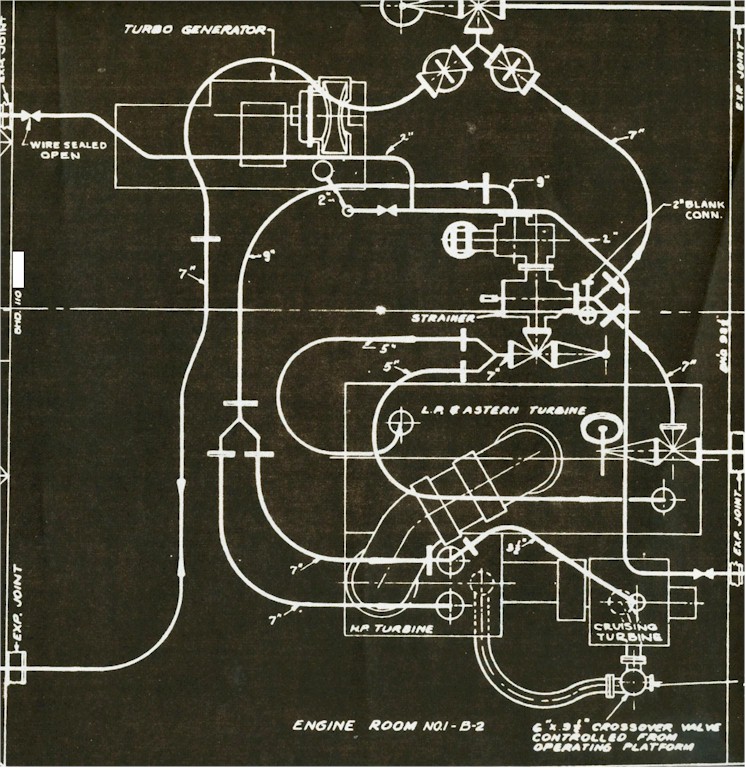

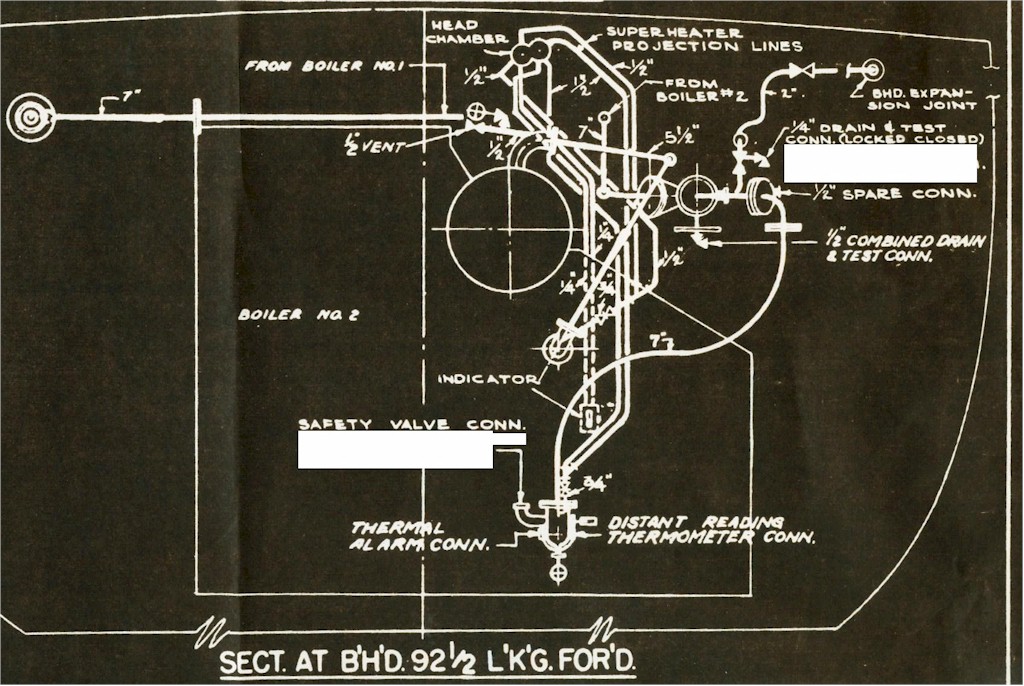

| MAIN

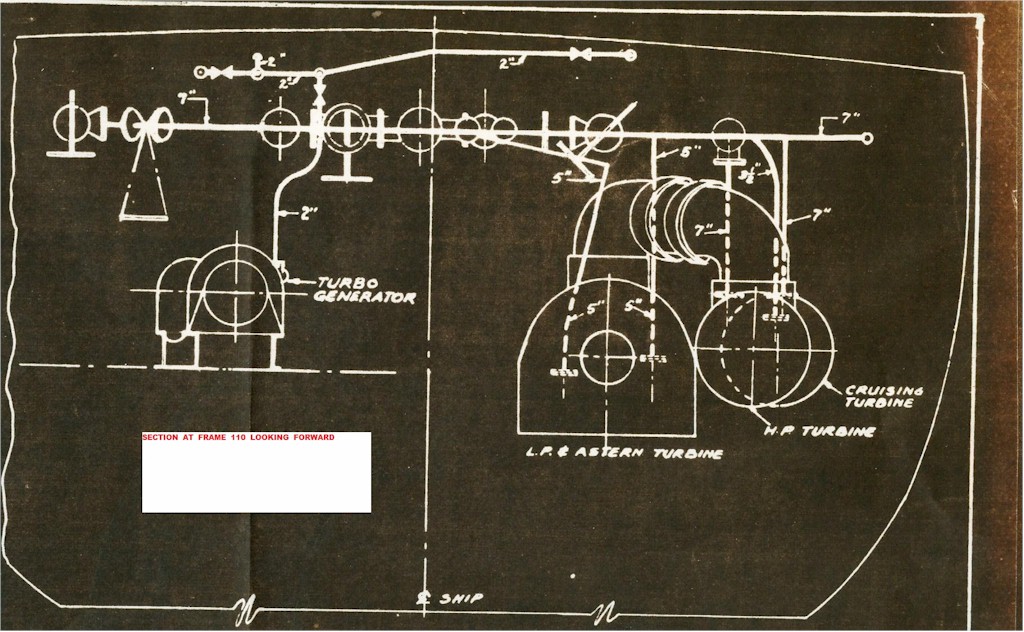

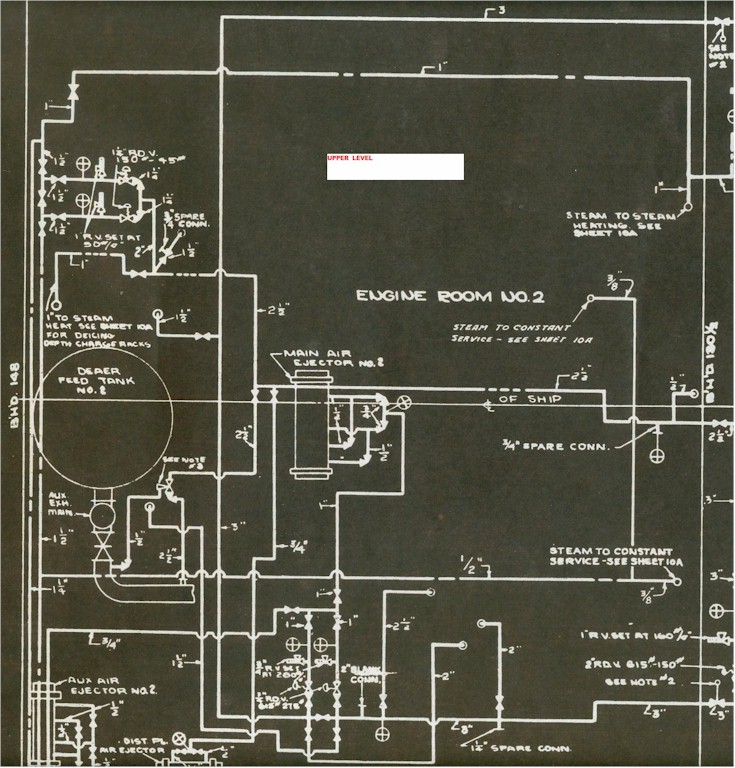

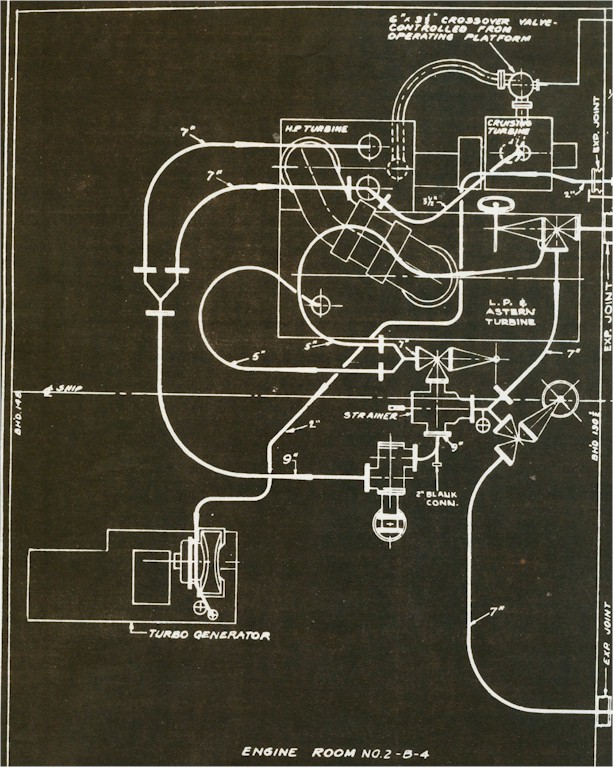

STEAM PIPING |
|
 |
 |
 |
 |
 |
 |
 |
|
 |
|

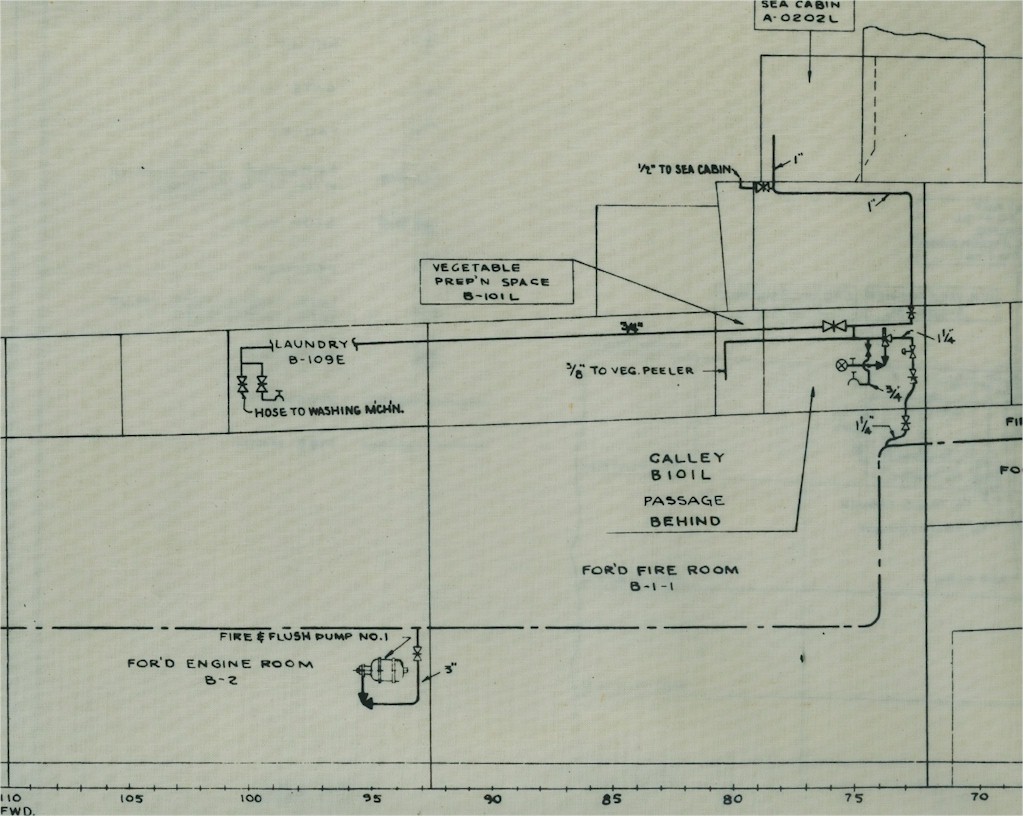

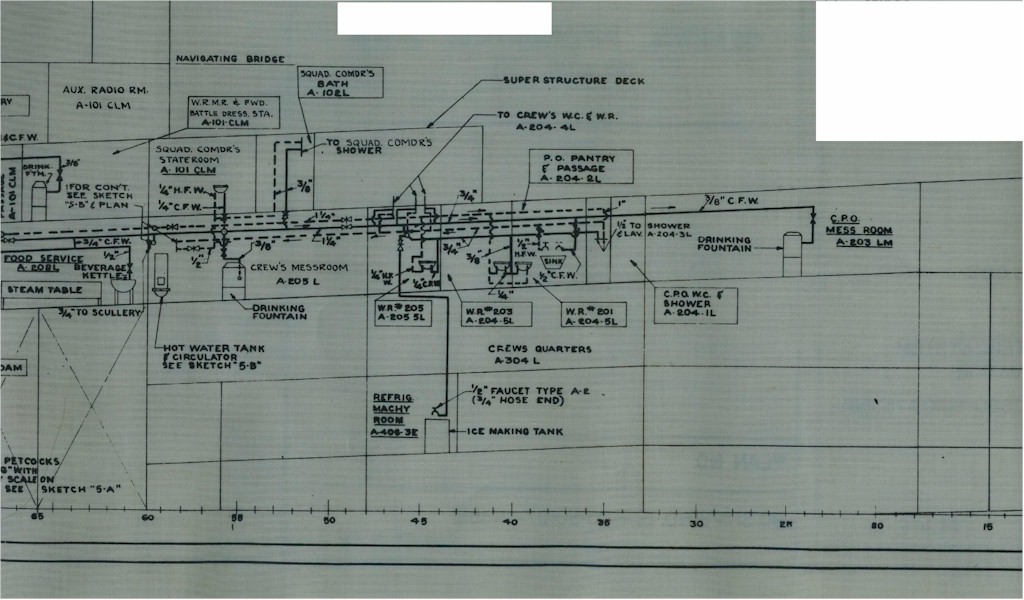

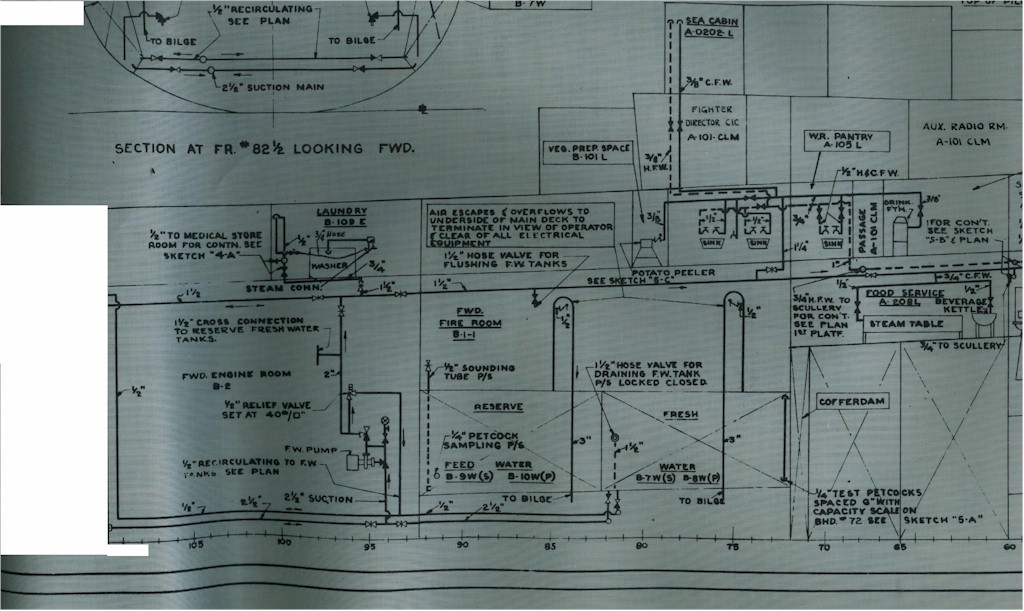

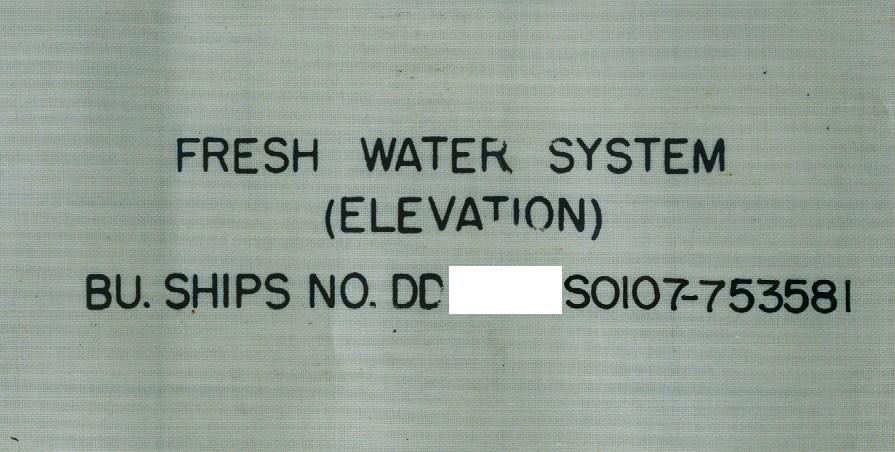

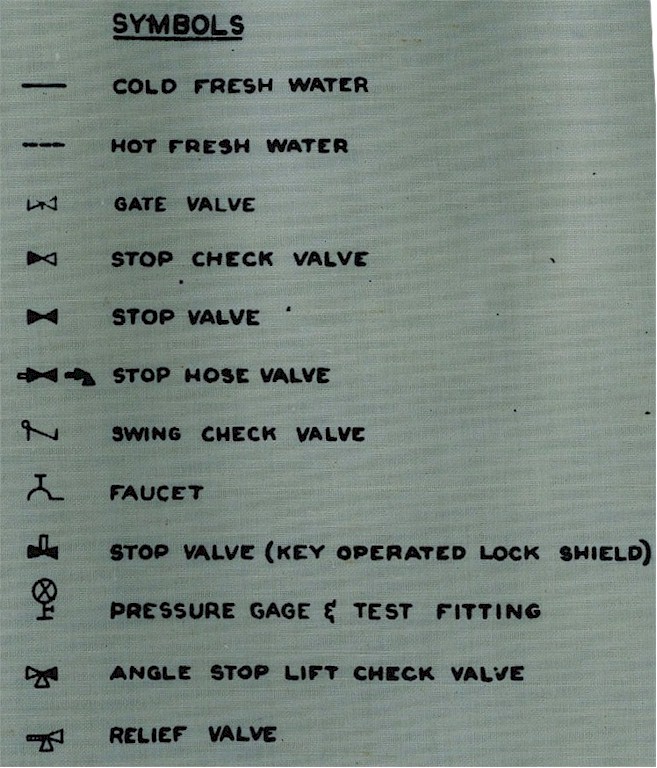

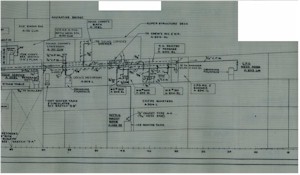

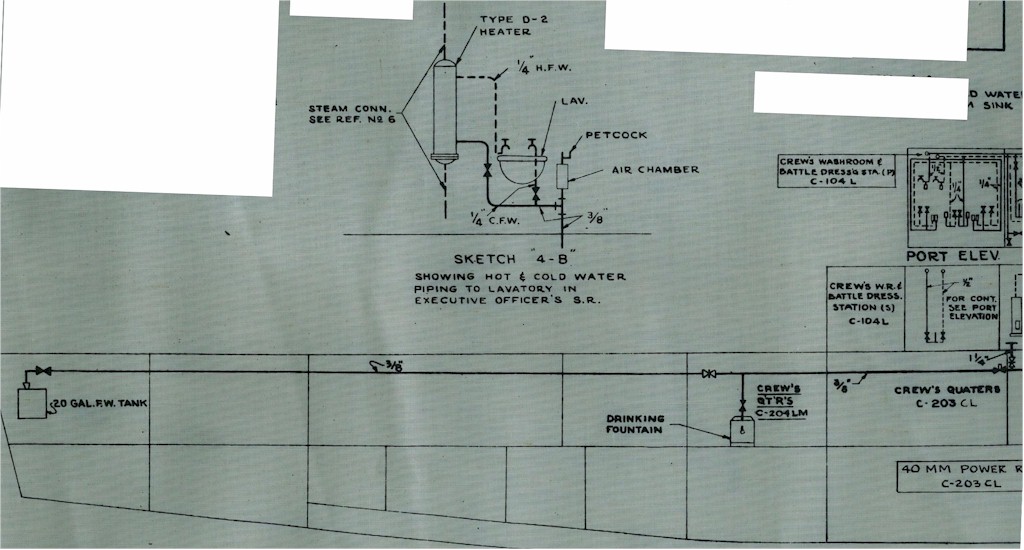

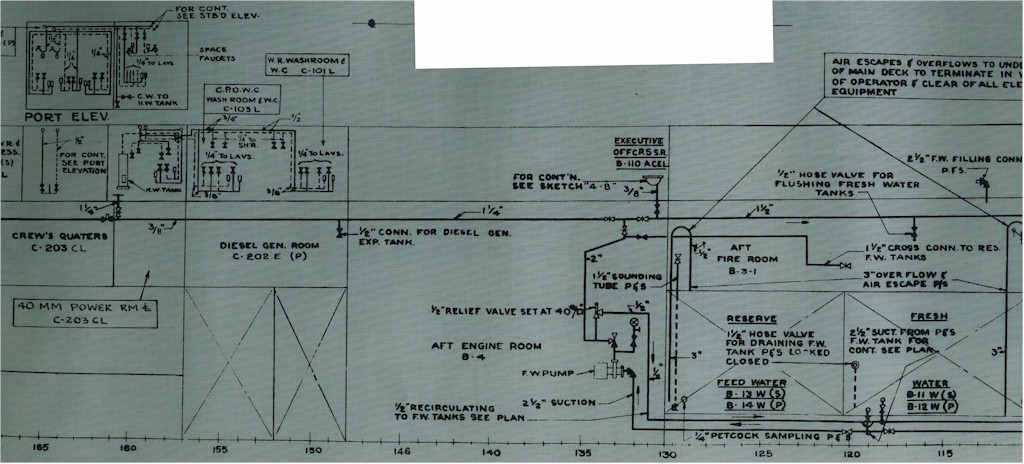

| FRESH

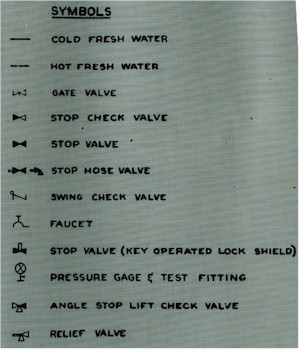

WATER SYSTEM |
|
 |
|
 |
 |
 |
 |
 |
|

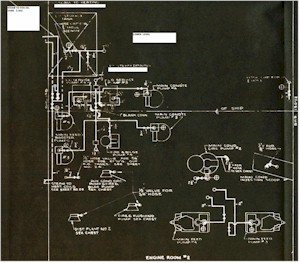

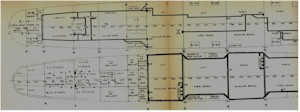

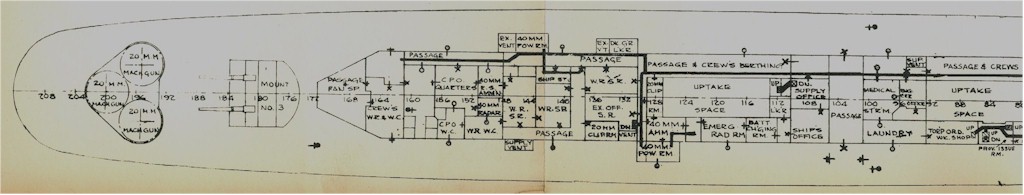

| MAIN

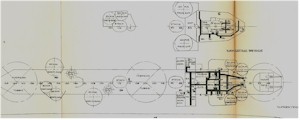

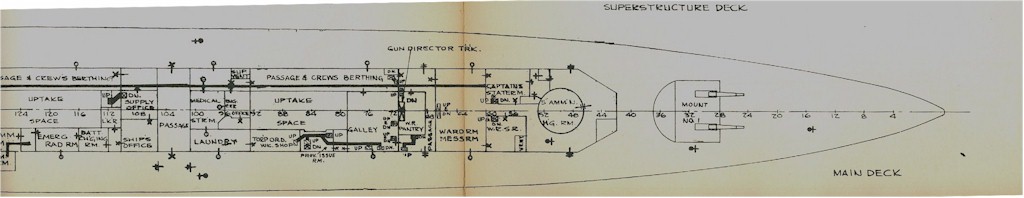

WIREWAYS |
|
 |
|
 |
 |
 |
 |
 |
 |
 |
|
 |
|

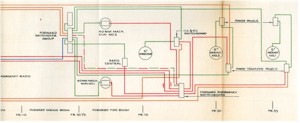

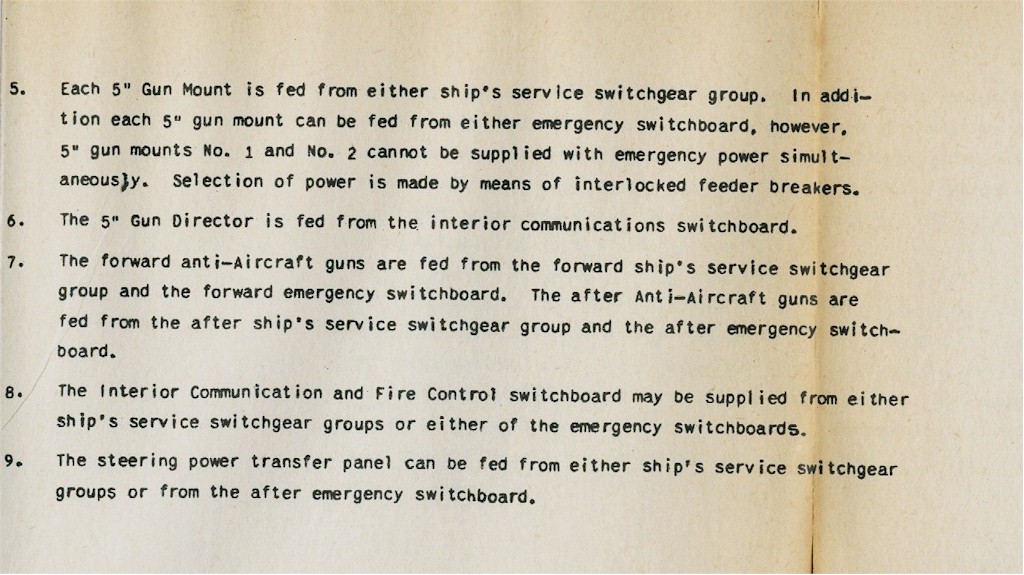

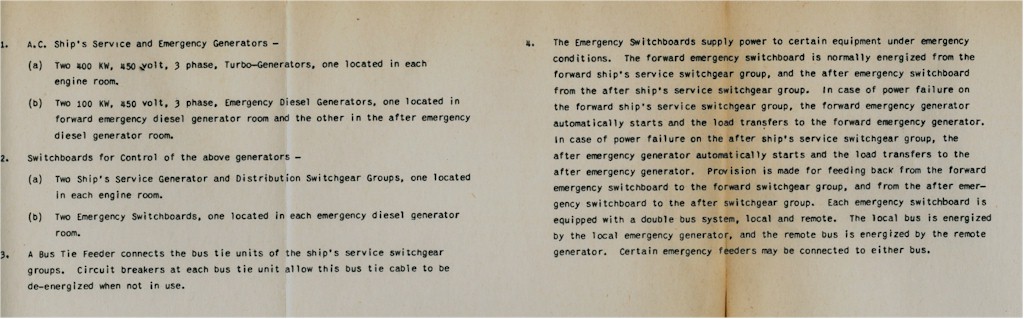

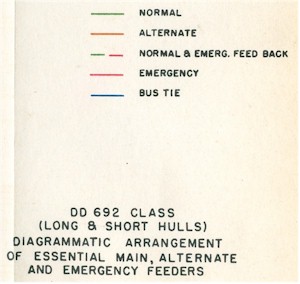

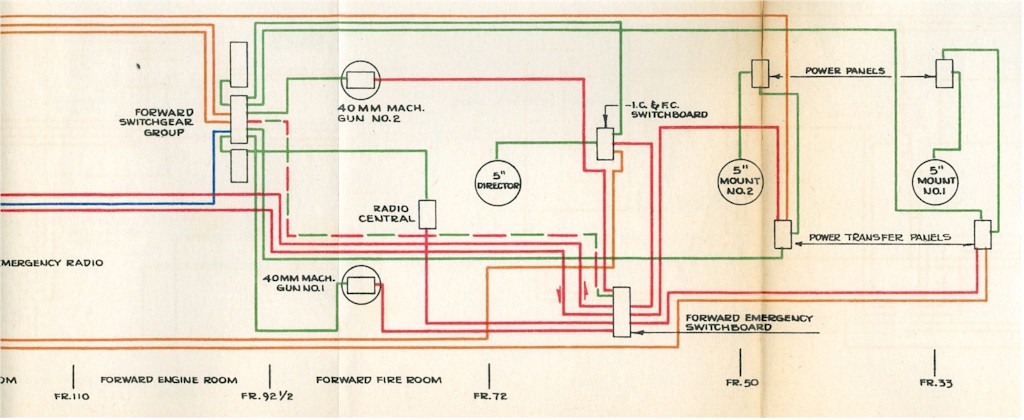

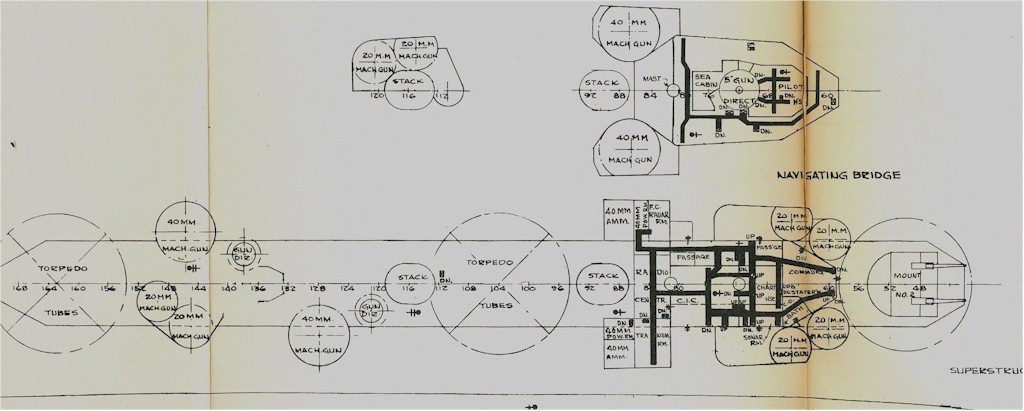

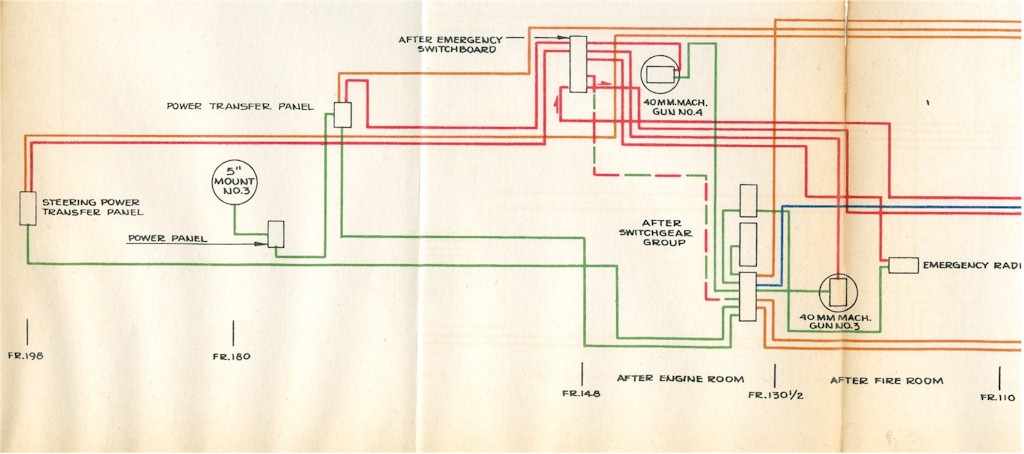

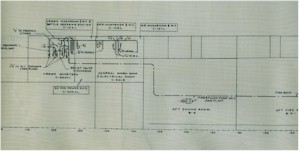

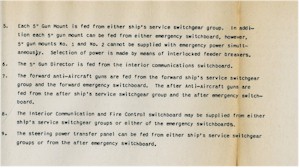

| ESSENTIAL

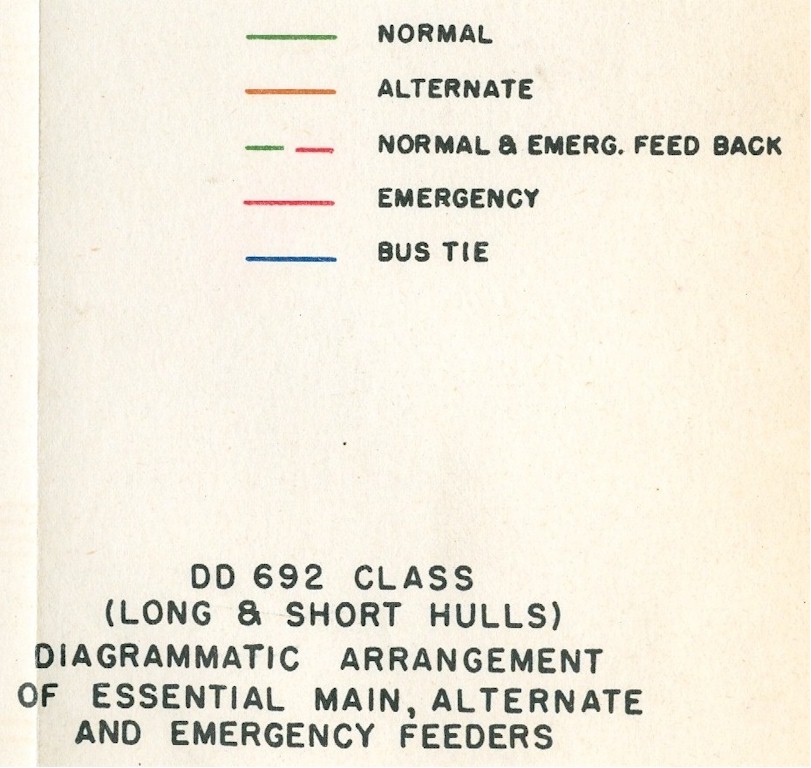

MAIN, ALTERNATE AND EMERGENCY FEEDERS |
|
 |
 |
 |
 |

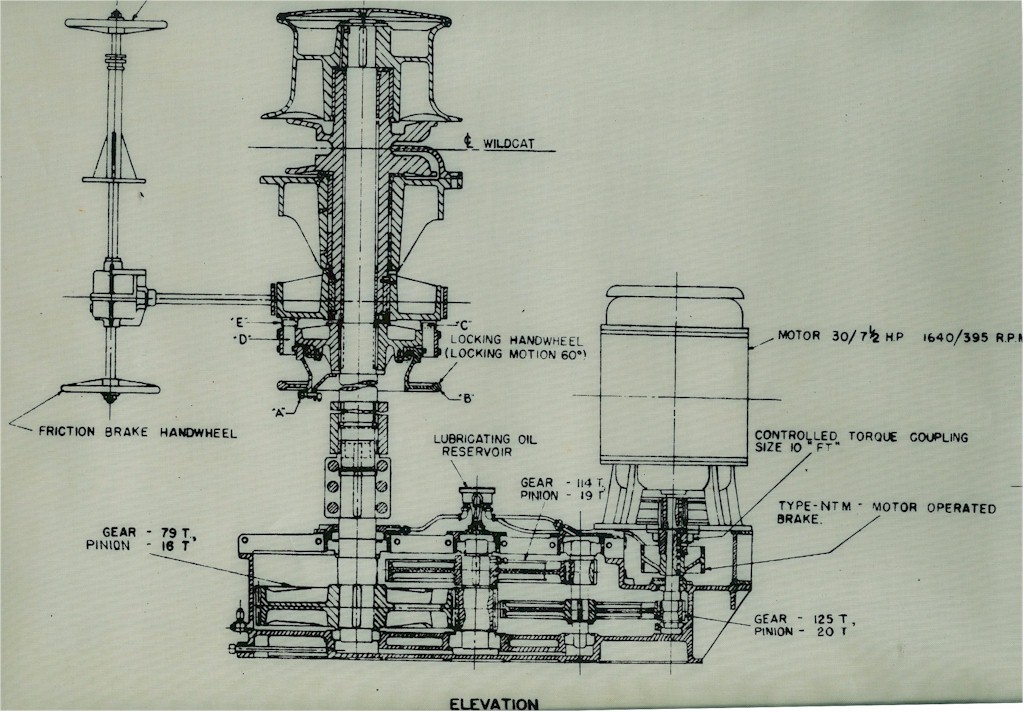

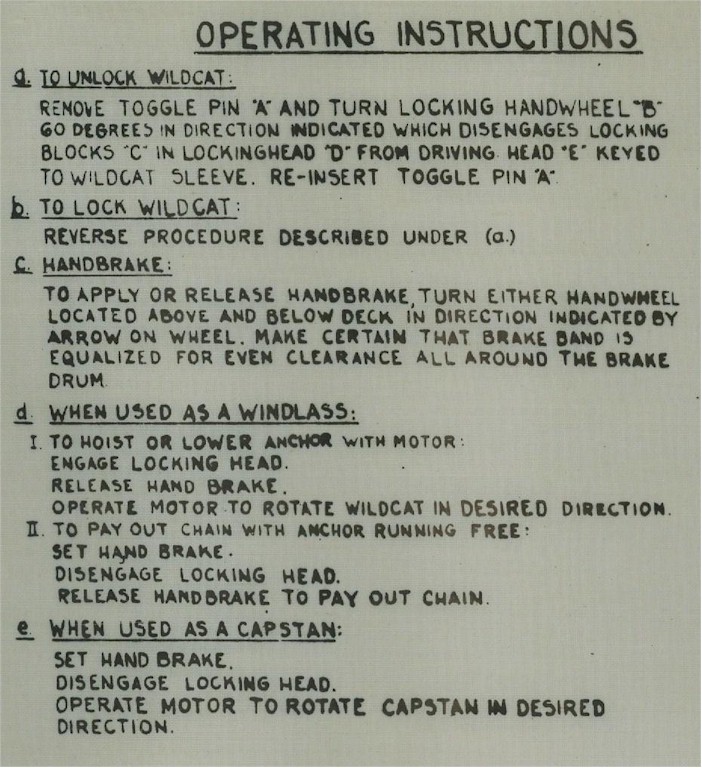

WINDLASS AND INSTRUCTIONS |
|
 |
 |

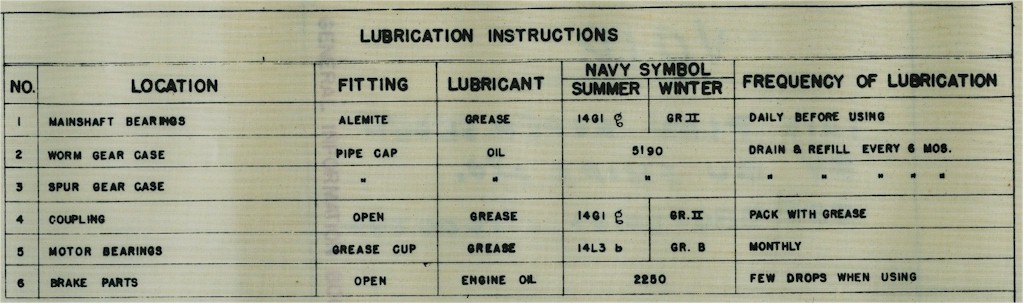

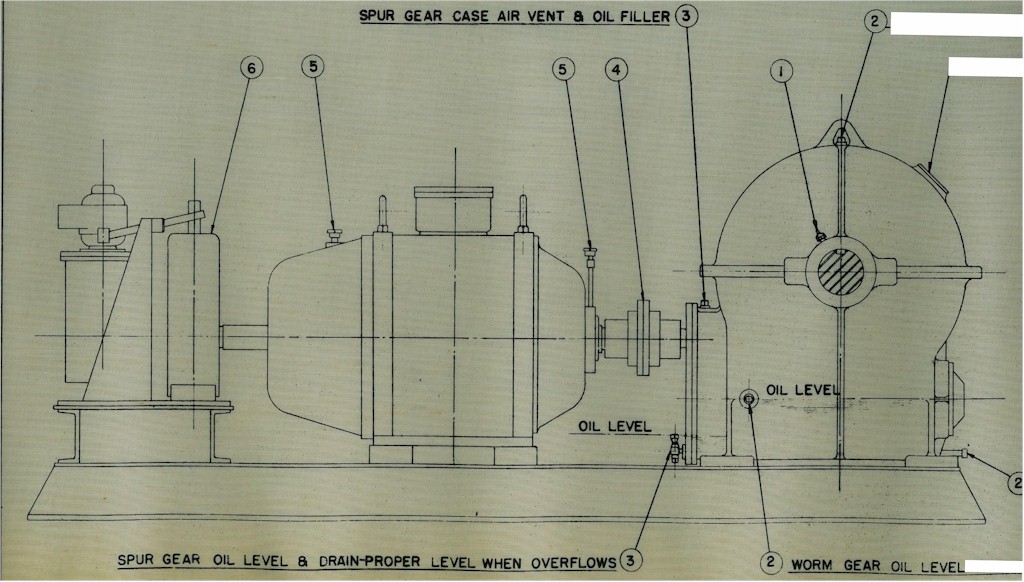

WINCH AND LUBRICATION INSTRUCTIONS |
|
 |
 |

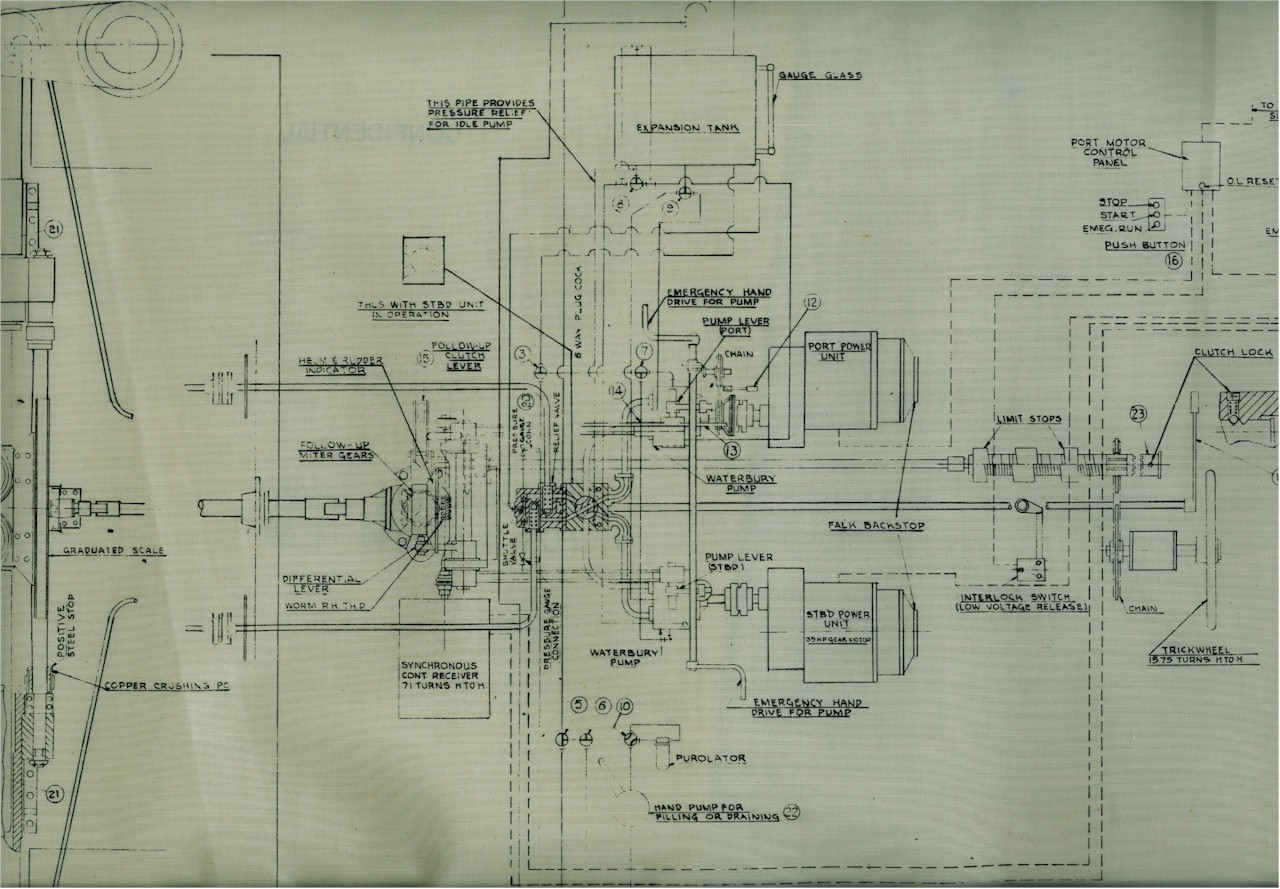

AFTER STEERING |
 |

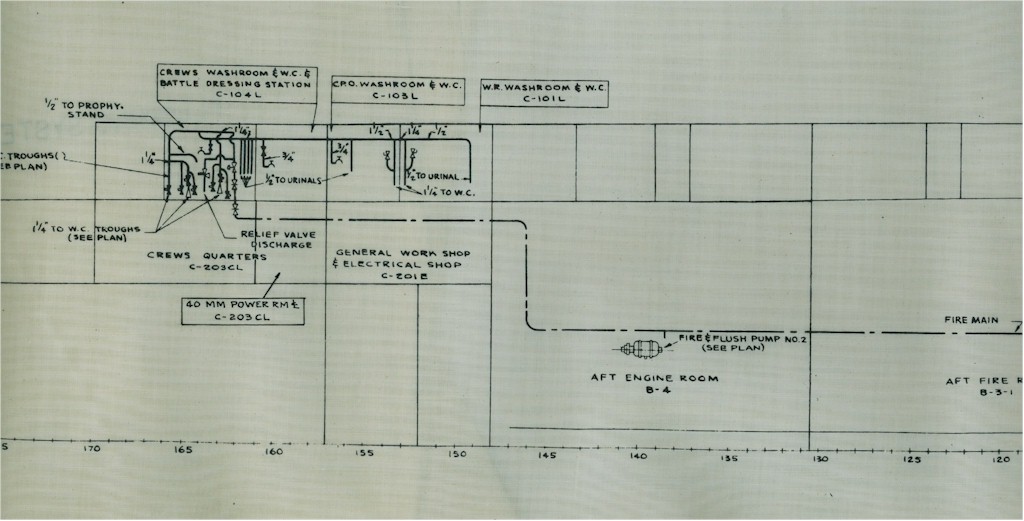

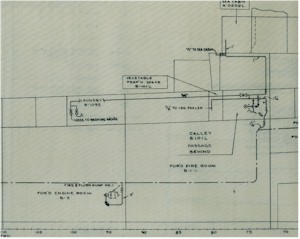

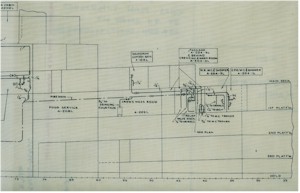

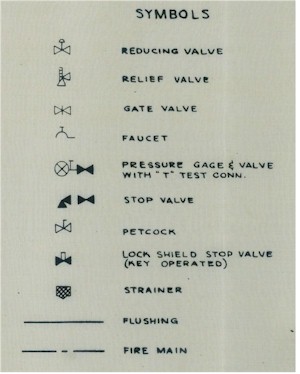

FLUSHING WATER SYSTEM |
||
 |
||
 |
 |
 |

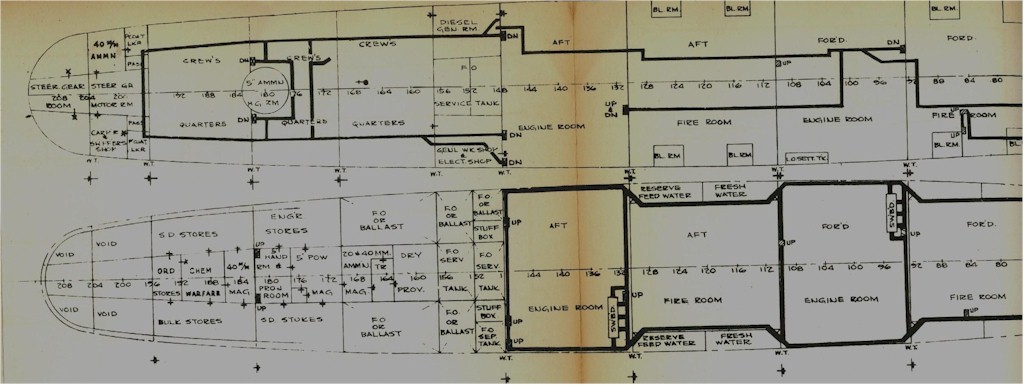

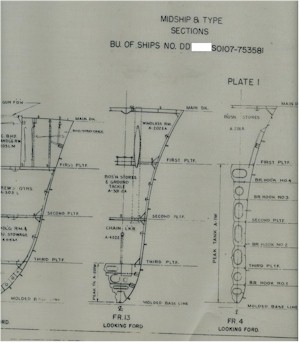

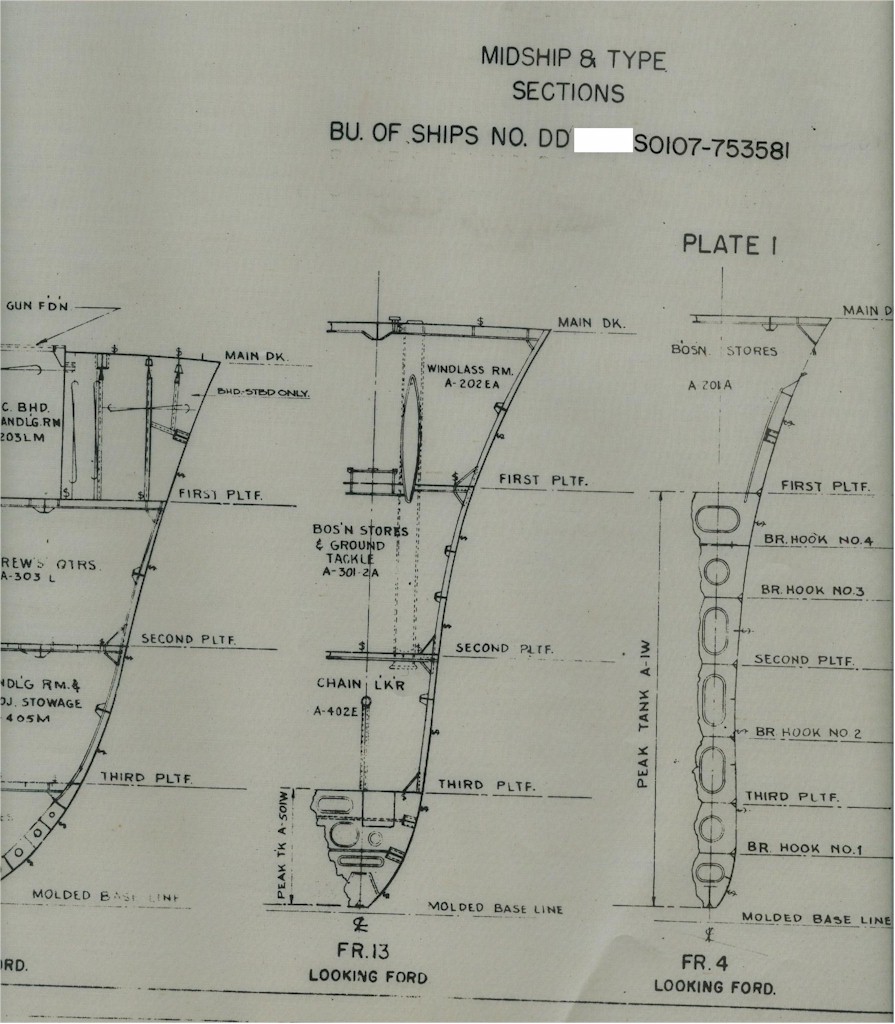

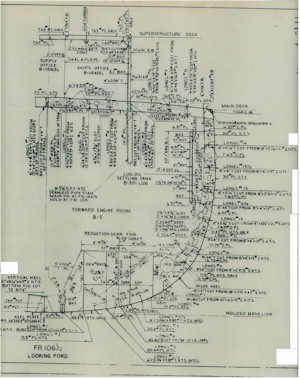

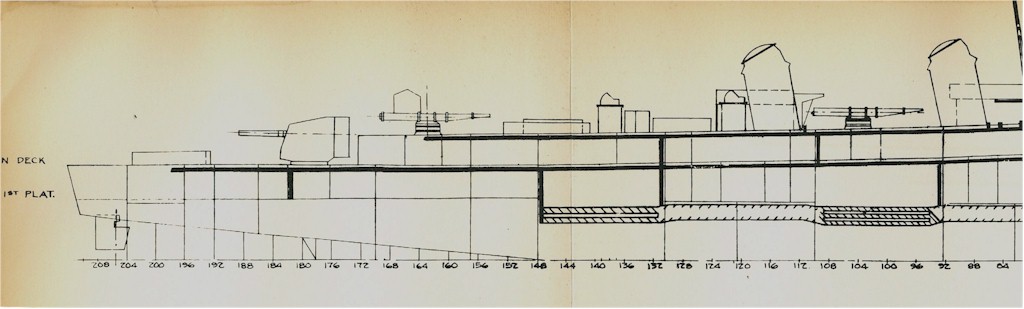

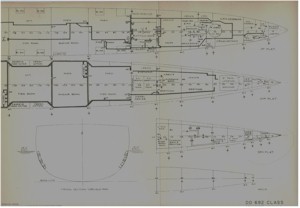

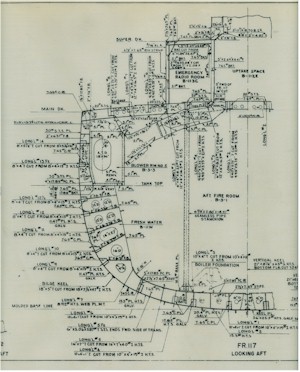

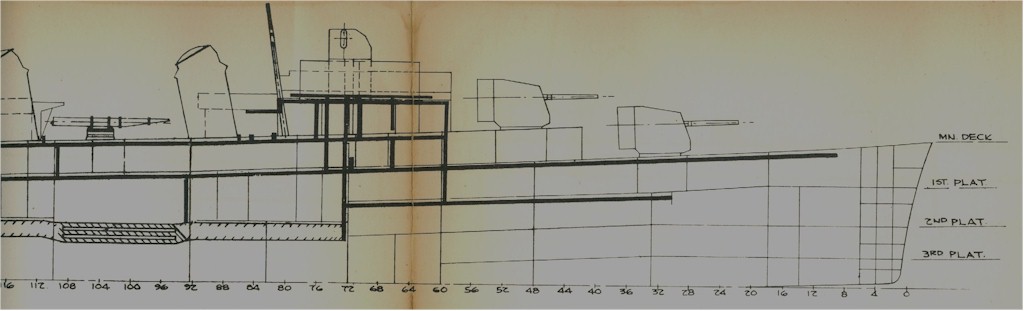

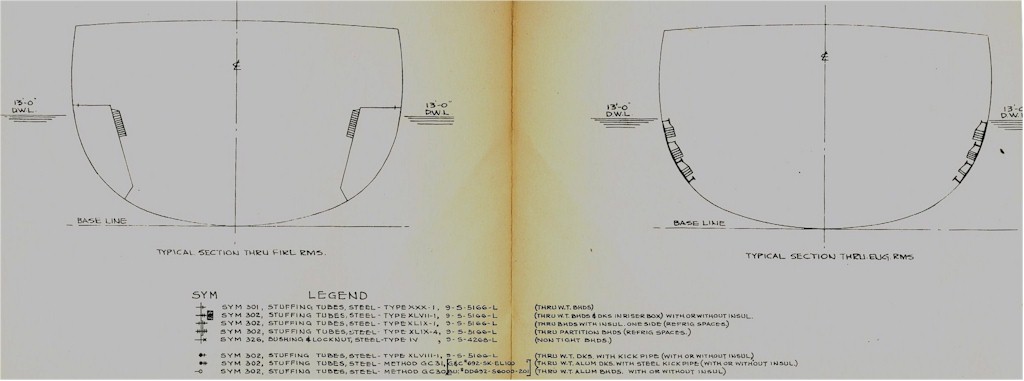

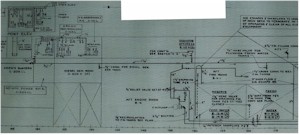

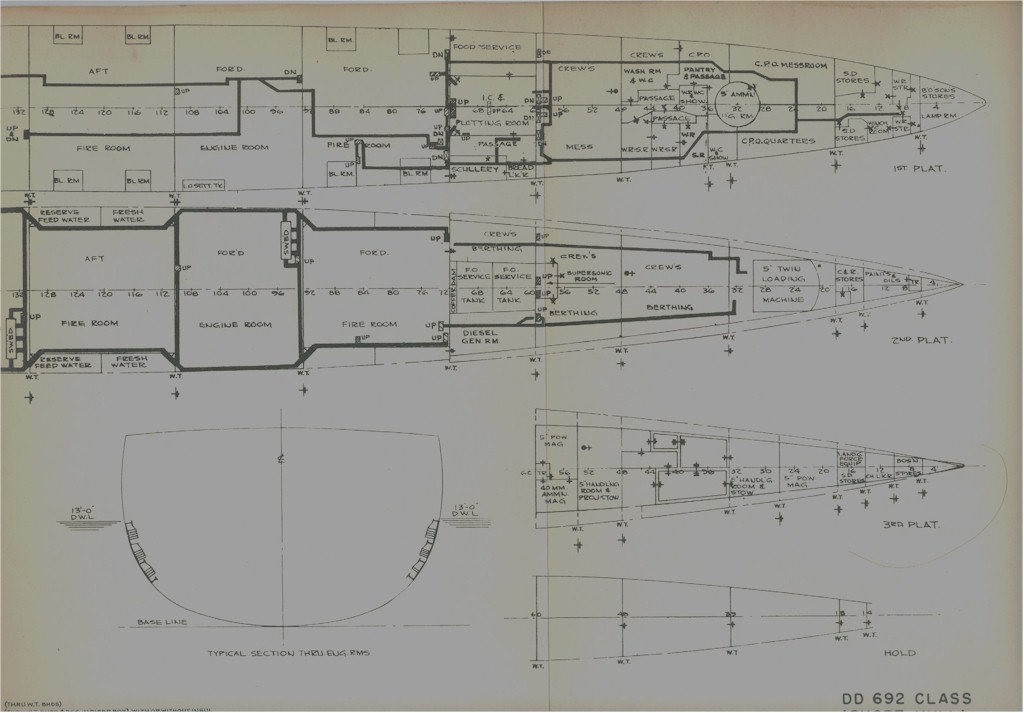

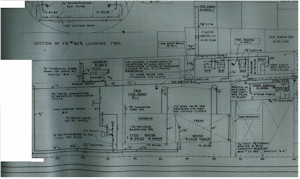

MIDSHIP AND TYPE SECTION DETAIL |
|
 |
|
 |
 |

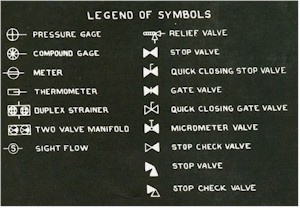

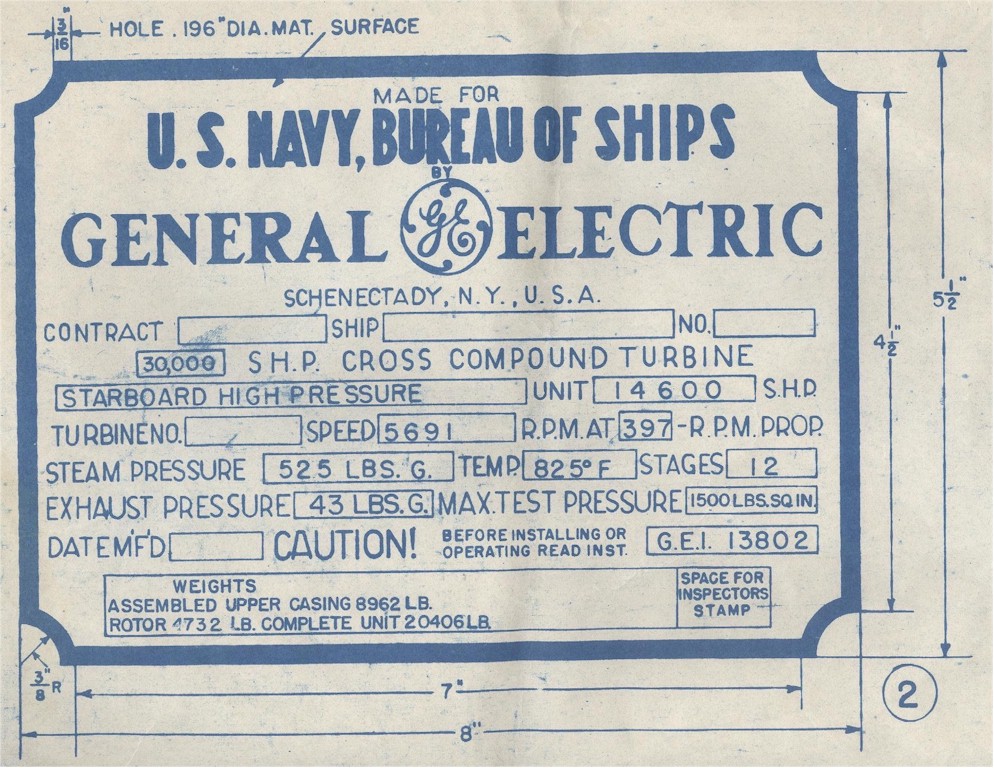

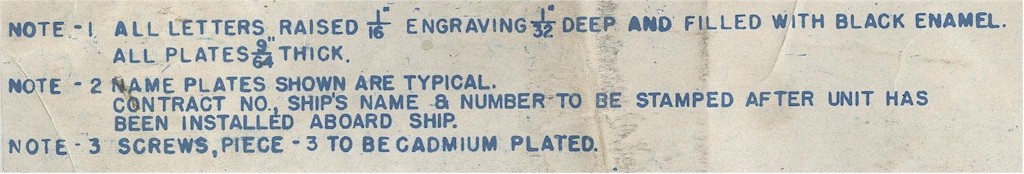

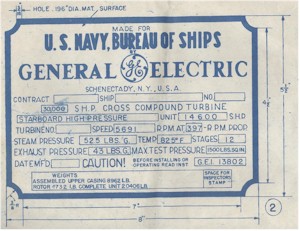

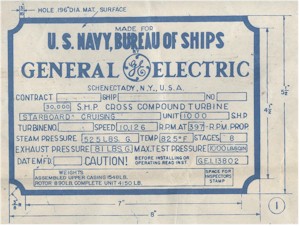

GUIDELINES FOR MACHINERY DATA PLATES
 |
|
 |
 |
