U.S.S. Allen M. Sumner DD-692
Compartments

The following images are selections from the original Compartment Plans.  They are from the Gearing (710) Class but at the time were very close to those used on the Sumner (692) Class.  Many thanks to Ed Zajkowski for taking the time to search out these documents and forwarding them on to us.  Following the images is a table listing all of the compartments found aboard the Sumner (692) Class.

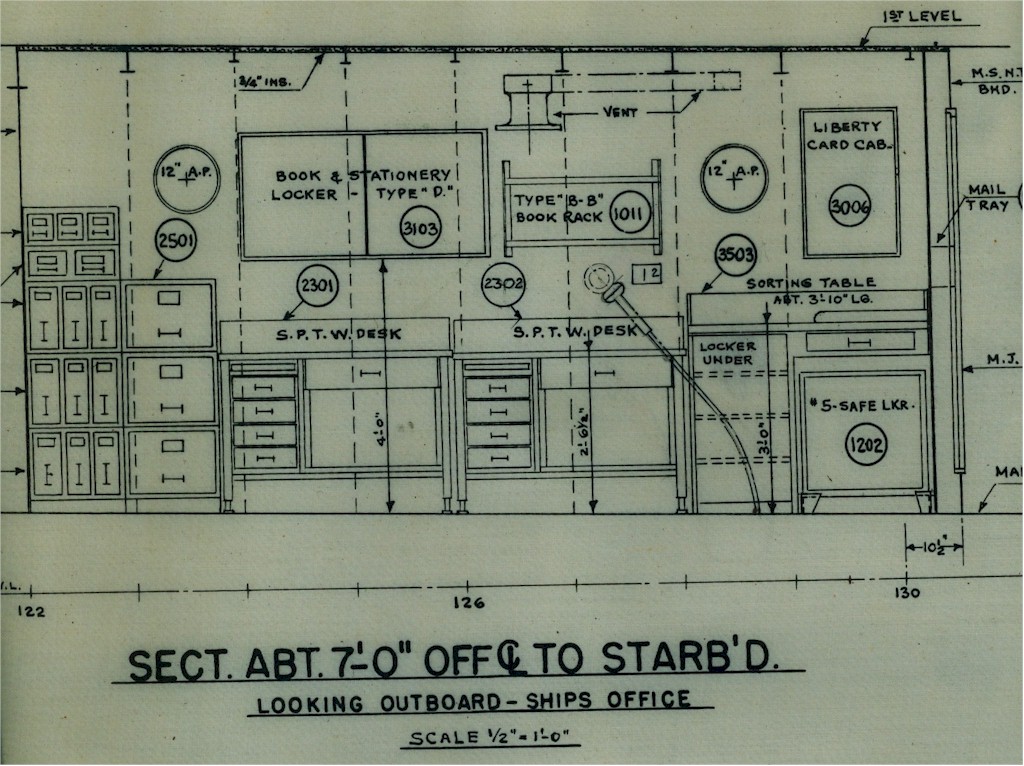

The Ship's Office

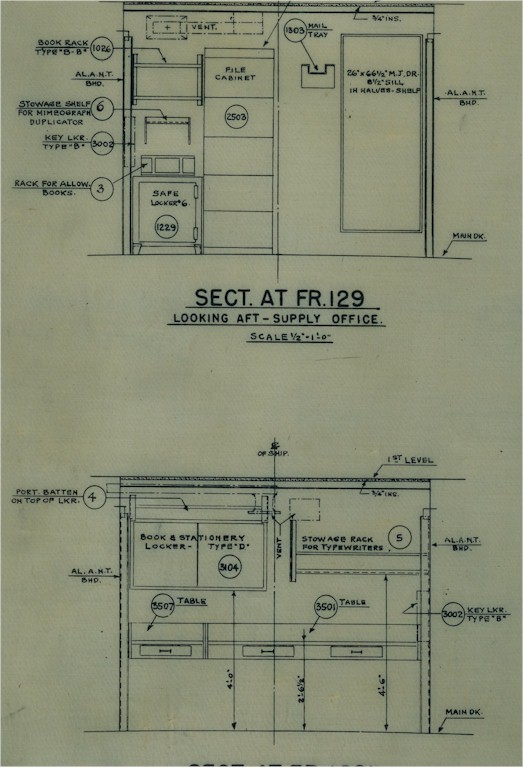

  		 The Supply Office

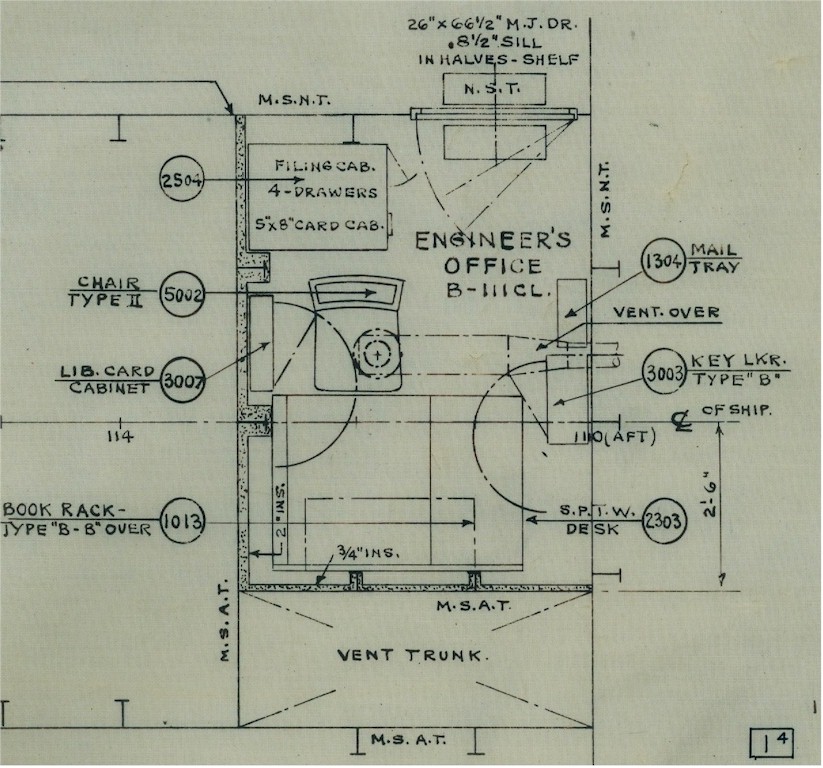

  		 The Engineering Office

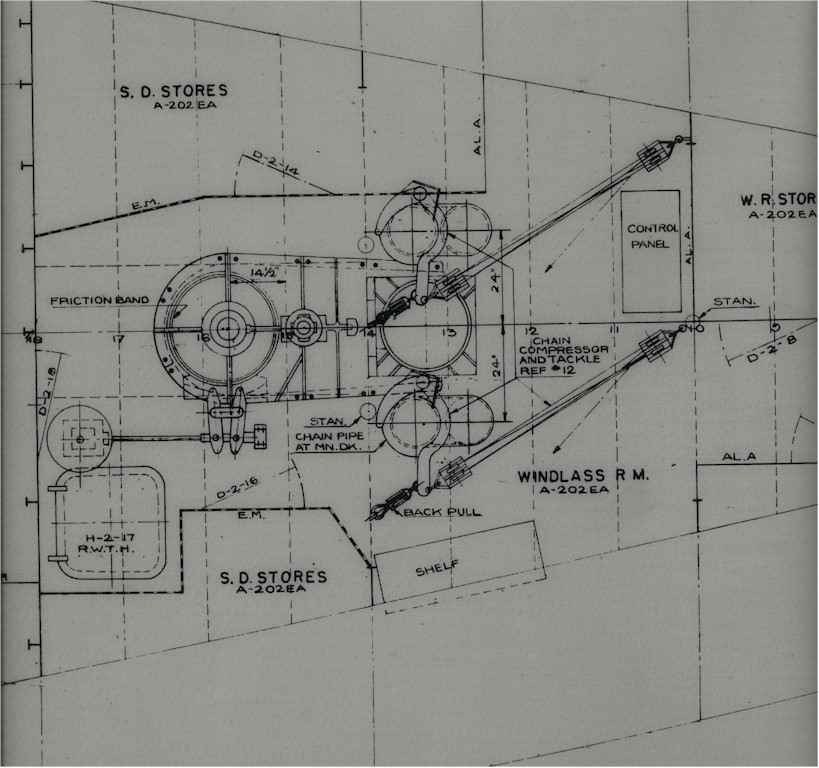

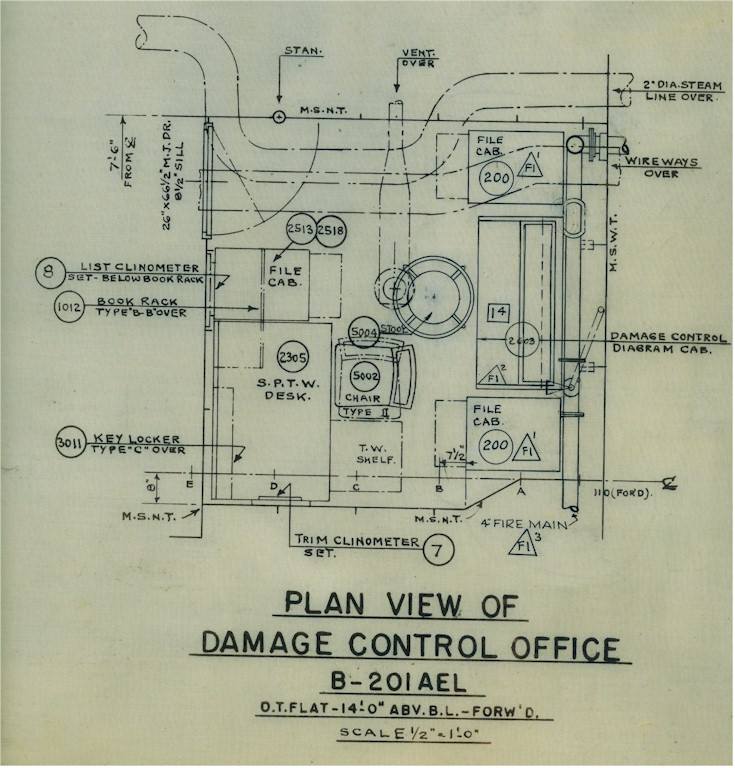

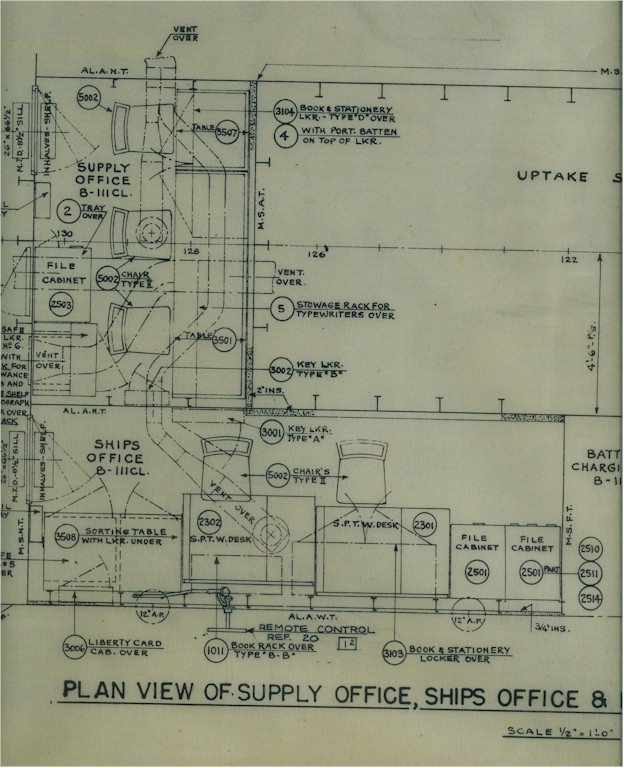

Damage Control Office The Supply Office and Ship's Office The Bosun Locker


The following is an alphabetic listing of the shipboard Compartments that made up the Sumner as she appeared following the 1968 Overhaul in Charleston Naval Shipyard. Sequence is by Primary Use followed by the Compartment Number, the Deck(s) the Compartment occupied and the Frame Numbers that indicate the Compartment's boundaries. A listing of some of the Keys used to interpret the Compartment Number and Frame codes follows the table.

Primary Use Compartment No. Deck Frames
Air Conditioning Machinery Room A-306-E 2 Platform 60-72 P
ASW Room A-0201-CL 02 Level 81-89 S
Auxiliary Radio Room B-101 ACEL Main 116-122 S
Athwartships Passage B-104-ACEL Main 101-103 CL
Athwartships Passage B-104-ACEL Main 128-130 CL
Barber Shop C-101-L Main 166-168 P
Bosn Stores A-201-A 1 Platform 6 FWD
Bosn Stores & Ground Tackle A-301-EA 2 Platform 8-14 CL
Bulk Stores C-309-A 2 Platform 186-196 S
Butter & Egg Room A-406-4A 3 Platform 40-44 P
Buships Repair Parts Stowage C-11-A 2 Platform 170-182 S
Captain's Bath A-102-L Main 51-54 P
Captain's Cabin A-101-LM Main 54-60 P
CIC & ECM A-0201-CL 02 Level 72-90 CL
Chemical Warfare Material C-312-A 1 Platform 204-Stern
Chemical Warfare Stores C-310-A 2 Platform 186-192 P
Chain Locker A-402-E 3 Platform 10-14 CL
Chart Room A-0101-CL 01 Level 66-72 S
Cofferdam A-5-VF Hold 71-72 CL
CPO Messroom & Lounge A-203-LM 1 Platform 18-33 CL
CPO Berthing A-303-L 2 Platform 18-33 CL
CPO Pantry A-204-2L 1 Platform 33-40 P
CPO Washroom, WC & Shower A-204-IL 1 Platform 32-40 S
Crew's Quarters A-304-L 2 Platform 33-48 CL
Crew's Quarters A-305-CL 2 Platform 48-60 CL
Crew's Quarters A-203-L 1 Platform 157-170 CL
Crew's Quarters C-204-LM 1 Platform 170-182 CL
Crew's Quarters C-205-L 1 Platform 182-196 CL
Crew's Mess A-205-L 1 Platform 48-60 CL
Crew's WC and Wash Room A-204-4L 1 Platform 40-48 P
Crew's Wash Room & Shower C-101-L Main 157-162 CL
Crew's WC C-101-L Main 162-167 CL
C & RT Storeroom & Access A-302-A 2 Platform 14-18 CL
Crypto Room B-0101-CL 01 Level 86-90 S
DASH Control & Equipment Room B-101-ACEL Main 110-116 S
Deck Gear Locker B-101-ACEL Main 103-105 P
Division Commander's Cabin A-0101-CL 01 Level 59-66 CL
Division Commander's Bath A-0103-CL 01 Level 62-66 S
Dry Provisions A-301-A 2 Platform 157-170 S
Dry Provisions A-403-A 3 Platform 14-18 S
Dry Provisions A-504-A Hold 33-48 S
Disbursing Office B-104-ACEL Main 104-110 P
ECM Room B-0202-C 02 Level 137-141 P
Electronic Spares C-208-A 1 Platform 199-204 P
Emergency Diesel Gen. Room 2 C-202-E 1 Platform 148-157 P
Emergency Diesel Gen. Room A-307-E 2 Platform 60-72 S
Emergency Fire Pump Room 1 A-406-3E 3 Platform 43-48 S
Emergency Fire Pump Room 2 C-12-A 2 Platform 170-182 P
Engineering Office B-101-ACEL Main 137-144 P
Engine Room 1 B-2-1 1 Platform 92 1/2-110
Engine Room 2 B-4-1 1 Platform 130 1/2-148
Fan Room B-0102-E 01 Level 77-81 P
Fan Room B-0103-E 01 Level 77-81 S
Fire Control Radar Room A-0101-CL 01 Level 81-84 P
Foam Generator Room B-101-ACEL Main 127-129 S
Food Service A-208-L 1 Platform 60-77 P
Foul Weather Gear Locker B-101-ACEL Main 103-105 P
F.D. Blower No. 1 B-1-3 1 Platform 72 1/2-79 S
F.D. Blower No. 2 B-1-2 1 Platform 72 1/2-79 P
F.D. Blower No. 3 B-1-5 1 Platform 85-89 S
F.D. Blower No. 4 B-1-4 1 Platform 85-89 P
F.D. Blower No. 5 B-3-3 1 Platform 113 1/2-117 S
F.D. Blower No. 6 B-3-2 1 Platform 113 1/2-117 P
F.D. Blower No. 7 B-3-5 1 Platform 123-127 S
F.D. Blower No. 8 B-3-4 1 Platform 123-127 P
Fresh Water Tank B-7-W Hold 72-83 S
Fresh Water Tank B-8-W Hold 72-83 P
Fresh Water Tank B-11-W Hold 110-120 S
Fresh Water Tank B-12-W Hold 110-120 P
Fuel Oil or Ballast Tank A-505-F Hold 48-60 S
Fuel Oil or Ballast Tank A-506-F Hold 48-60 P
Fuel Oil or Ballast Tank A-507-F Hold 60-66 S
Fuel Oil or Ballast Tank A-508-F Hold 60-66 P
Fuel Oil or Ballast Tank A-509-F Hold 66-71 S
Fuel Oil or Ballast Tank A-510-F Hold 66-71 P
Fuel Oil or Ballast Tank C-4-F Hold 148-152 P
Fuel Oil or Ballast Tank C-7-F Hold 152-157 S
Fuel Oil or Ballast Tank C-8-F Hold 152-157 S
Fuel Oil or Ballast Tank C-9-F Hold 157-170 S
Fuel Oil or Ballast Tank C-10-F Hold 157-170 S
Fuel Oil Service Tank A-3-F Hold 60-66 CL
Fuel Oil Service Tank A-4-F Hold 66-72 CL
Fuel Oil Service Tank C-1-F Hold 148-152 CL
Fuel Oil Service Tank C-6-F Hold 152-157 CL
Fuel Oil Settling Tank C-5-F Hold 148-152 S
Fruits & Vegetables A-406-1A 3 Platform 33-43 S
Galley B-101-L Main 72-79 CL
General Workshop C-201-E 1 Platform 148-152 S
Gunnery Office B-101-ACEL Main 130-137 P
Gear Locker A-202-EA 1 Platform 7-10 S
Helicopter Hanger & Workshop B-0104-E 01 Level 124-145 P
IFF Radar & Target Desig. Room A-101-CLM 01 Level 66-72 S
IC & Plot Room A-206-C 1 Platform 60-72 CL
JP-5 Gravity Tank C-202 1/2-J 1 Platform 148-150 P
JP-5 Gravity Tank A-309-J 2 Platform 69-72 S
JP-5 Pump Room C-301 1/2-E 2 Platform 163-170
JP-5 Tank C-501-J Hold 157-170 CL
Landing Force Equipment Locker B-101-ACEL Main 127-128 P
Landing Force Equipment Locker A-504-A Hold 44-48 P
Laundry A-101-ACEL Main 92 1/2-101 S
Loading Machine 5" 01 Level 95 CL
Meat Room A-206-2A 3 Platform 33-40 P
Motor Generator Room B-103-M Main 85-92 S
MK 37 Director Trunk A-0206-T 02 Level 70 CL
MK 37 Trunk A-106-T 01 Level 70 CL
MK 25 Radar Room A-0101-CL 01 Level 83-90 P
Mount 51 Lower Handling Room A-405-M 3 Platform 26-33 CL
Mount 51 Upper Handling Room A-203-LM 1 Platform 28-35 CL
Mount 51 Magazine A-404-M 3 Platform 18-26 CL
Mount 52 Lower Handling Room A-409-M 3 Platform 48-54 CL
Mount 52 Upper Handling Room A-101-CLM Main 46 1/2-53 CL
Mount 52 Magazine A-410-M 3 Platform 54-60 P
Mount 53 Lower Handling Room C-306-M 2 Platform 177-182 CL
Mount 53 Upper Handling Room A-204-LM 1 Platform 177-183 CL
Mount 53 Magazine C-305-M 2 Platform 170-177 CL
Ordnance Workshop B-101-ACEL Main 123-129 P
Ordnance Stores A-503-A Hold 18-33 CL
Paint Mixing Room B-105-A Main 130-135 S
Paint & Inflammable Storage A-401-A 3 Platform 6-10 CL
Passage A-0101-CL 01 Level 66-72 P
Passage B-0102-CL 01 Level 81-90 P
Passage A-101-CL Main 42-54 CL
Passage B-102-ACEL Main 67 1/2-72 S
Passage B-101-ACEL Main 67-101 P
Passage B-101-ACEL Main 103-110 P
Passage B-101-ACEL Main 110-128 1/2 P
Passage C-101-L Main 148-157 P
Passage C-101-L Main 157-165 P
Passage C-101-L Main 168 CL to P
Passage C-101-L Main 167-172 P
Passage A-203-ACEL 1 Platform 19-22 S
Passage A-204-5L 1 Platform 40-48 CL
Passage A-406-3E 3 Platform 40-48 CL
Peak Tank A-1-W Hold 6 FWD
Peak Tank A-501-W Hold 6-14 CL
Pilot House & Inside Ladder A-0201-CL 02 Level 63-70 CL
Post Office C-101-L Main 168-170 S
Pharmacy B-101-ACEL Main 96-101 CL
Radar Annex B-0101-CL 01 Level 77-81 P
Radar Room A-0101-CL 01 Level 72-81 S
Radio Transmitter Room B-0101-CL 01 Level 84-90 P
Radio Central B-0101-CL 01 Level 81-86 CL
Refrigeration Machinery Room A-406-3E 3 Platform 44-48 CL
Repair 2 A-101-CLM Main 47-51 P
Repair 3 B-101-ACEL Main 144-148 P
Repair 5 B-101-ACEL Main 110-113 CL
Reserve Feed Water Tank B-9-W Hold 83-92 1/2 S
Reserve Feed Water Tank B-10-W Hold 83-92 1/2 P
Reserve Feed Water Tank B-13-W Hold 120-130 1/2 S
Reserve Feed Water Tank B-14-W Hold 120-130 1/2 P
Scullery & Passage A-207-IL 1 Platform 60-72 S
Sea Cabin A-0201-CL 02 Level 70-77 S
S.F. & Carpenter Shop C-207-EL 1 Platform 199-204 S
Shaft Alley, Port C-2-E Hold 148-152 P
Shaft Alley, Starboard C-3-E Hold 148-152 S
Ship's Office B-101-ACEL Main 103-110 S
Ship's Store C-101-L Main 168-170 P
Ship's Store Storeroom C-309-A 2 Platform 182-186 S
Sick Bay B-108-AL Main 95-101 CL
Small Arms Magazine C-306 1/2-M 2 Platform 182-187 P
Sonar Equipment Room A-305-CL 2 Platform 52-60 P
Sonar Switch Room A-403-CL 3 Platform 14-18 P
Steering Gear Motor Room C-206-E 1 Platform 196-204 CL
Steering Gear Room C-209-E 1 Platform 204-210 CL
Stuffing Box Compartment C-2-E Hold 148-152 P
Stuffing Box Compartment C-3-E Hold 148-152 S
Supply Department Stores A-202-EA 1 Platform 12-18 P
Supply Department Stores A-202-EA 1 Platform 14-18 S
Supply Department Stores C-307-A 2 Platform 182-185 P
Supply Department Stores C-308-A 2 Platform 188-196 P
Supply Department Stores C-310-A 2 Platform 186-192 S
Supply Department Stores C-411-A 3 Platform 54-60 S
Supply Department Stores A-502-A Hold 14-18 CL
Supply Department Stores C-12-A Hold 170-182 P
Supply Office B-101-ACEL Main 122-128 1/2 S
Secure Teletype B-0101-CL 01 Level 80-90 S
Torpedo Stowage B-0105-M 01 Level 124-145 S
Trunk, Sonar A-2-CT 2 Platform 56-60 CL
3 Platform
Hold
Uptake No. 1 B-102-E Main 79-92 1/2 CL
Uptake No. 2 B-112-E Main 113-127 CL
Vegetable Preparation Space B-101-ACEL Main 79-85 S
VDS Room C-209-CE 1 Platform 204-211 S
VDS Equipment Room C-208-E 1 Platform 196-199 P
Vestibule B-101-A Main 135-137 S
Void C-502-V Hold 170-182 CL
Void C-311-V 2 Platform 196-204 CL
Void C-601-V Hold 148-157 CL
Void C-602-V Hold 157-170 CL
Void C-603-V Hold 170-180 CL
Windlass & Passage A-202-EA 1 Platform 6-18 CL
Ward Room, WC & Shower B-101-ACEL Main 144-147 S
Ward Room, WC & Shower A-204-3L 1 Platform 33-40 P
Ward Room & Mess A-101-LM Main 60-68 CL
Ward Room Pantry A-105-L Main 68-72 CL
Ward Room Passage A-101-CL Main 53-60 CL
Ward Room Stateroom 101 A-101-L Main 54-60 S
Ward Room Stateroom 102 A-101-L Main 129-137 1/2 P
Ward Room Stateroom 103 A-101-L Main 129-137 1/2 S
Ward Room Stateroom 104 A-101-L Main 137 1/2-145 CL
Ward Room Stateroom 105 A-101-L Main 137 1/2-144 S
Ward Room Stateroom 106 A-101-L Main 150-157 P
Ward Room Stateroom 107 A-101-L Main 148-157 S
Ward Room Stateroom 203 A-204-5L 1 Platform 40-44 S
Ward Room Stateroom 205 A-204-5L 1 Platform 44-48 S
Ward Room Stores A-202-EA 1 Platform 8-10 P
7.2" Projectile Stowage A-0102-M 01 Level 67-71 P
7.2" Projectile Stowage A-0103-M 01 Level 67-71 S
7.2" Projectile Stowage A-503 1/2-M Hold 33-44 P
7.2" Fuze Charge Magazine C-306 3/4-M 2 Platform 186-188 P
7.2" Projectile Charge Magazine C-307-M 2 Platform 182-186 CL
Compartment Number Suffix Frame Number Suffix
A - Supply & Storage CL - Center Line
B - Guns P - Port
C - Ship Control S - Starboard
E - Machinery
F - Fuel
J - JP5 Storage
L - Living Quarters
M - Ammunition
T - Trunks & Uptakes
V - Void
W - Water
